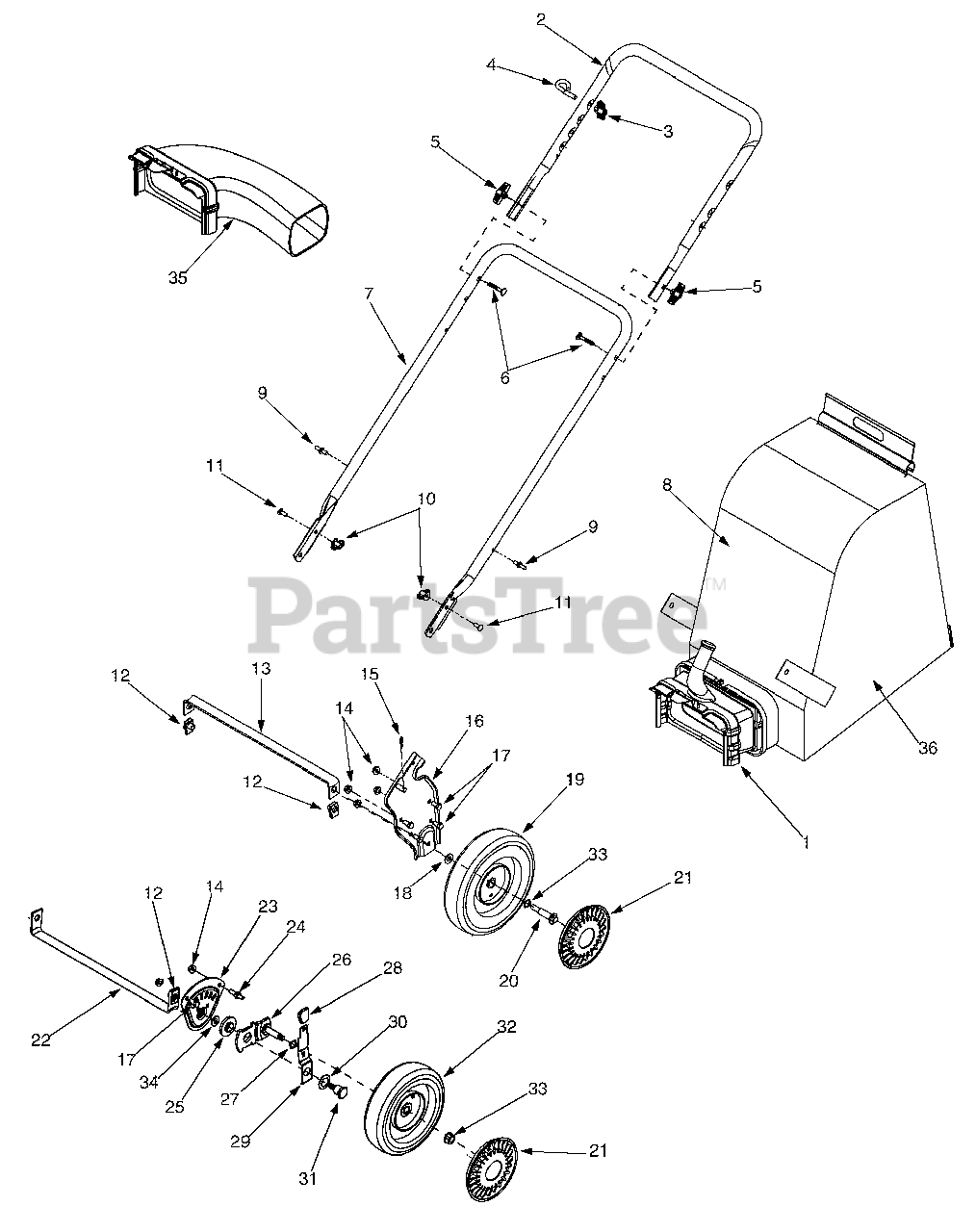

247.770110 (24A-031F099) - Craftsman Walk-Behind Yard Vacuum (2003) (Sears) Handles, Bag, Chute & Wheels Assemblies Parts Diagram

Walk-Behind Yard Vacuum

Handles, Bag, Chute & Wheels Assemblies Parts Diagram

  • Title

1

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

In Stock, only 1 left!

0

2

MTD 749-0438D

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438D-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

5

MTD 720-0276

Handle Knob 5/16-18
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

6

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

7

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

8

MTD 664-0094

Bag Assembly
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0

9

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

10

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

12

MTD 726-0453

Lock U-Clip Nut 3/8-16

$

$

Not available

13

MTD 781-0777

Rear Wheel Support Brace

Variations

MTD 781-0777-0637

No Longer Available BRACE REAR - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

MTD 681-0155

Handle Bracket Ass'y LH

Variations

MTD 681-0155-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0155-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0155-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0155-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0155-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156

Hndle Brkt Ass'y RH

Note: (Not Shown)

Variations

MTD 681-0156-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0156-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0156-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0156-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0156-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0156-0721

No Longer Available BRACKET AS - SEARS RED (0721)

$

$

Not available

MTD 681-0156-4044

No Longer Available BRACKET AS - CRAFTSMAN RED (4044)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

17

MTD 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

18

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

19

MTD 734-1992

Wheel 9 x 2

$54.99

$

Usually ships in 3-6 days

0

20

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

21

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

22

MTD 781-0725A

Front Wheel Support Brace
(Superseded to 781-0725A-0637)

Variations

MTD 781-0725A-0637

BRACE-FRONT WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 781-0785

Height Adjustment Bracket
(Superseded to 781-0785-0637)

Variations

MTD 781-0785-0637

BRACKET-HEIGHT ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 738-1185

Stud 5/16-18 .56 x .75

$8.49

$

Usually ships in 3-6 days

0

25

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

26

MTD 682-0113

Pivot Arm Assembly

$12.99

$

Usually ships in 3-6 days

0

27

MTD 736-0232

Wave Washer .531 ID x .781 OD

$4.99

$

In Stock, Qty 12

0

28

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

29

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

30

MTD 736-0741

Bell Washer .760 ID x .25OD

$4.99

$

Usually ships in 3-6 days

0

31

MTD 738-1173

Shoulder Screw .750 ID x .625 OD

$6.99

$

Usually ships in 3-6 days

0

32

MTD 734-1978

Wheel 8 x 2

$48.99

$

Usually ships in 3-6 days

0

33

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

34

MTD 736-0314

Thrust Washer .375 ID x .70 OD

$6.99

$

Usually ships in 3-6 days

0

35

MTD 631-0090

Blower Chute Assembly
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0

36

MTD 764-0631

Bag
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0
