247.770100 (24A-031E099) - Craftsman Vacuum (2000) (Sears) Impeller Assembly Parts Diagram

Vacuum

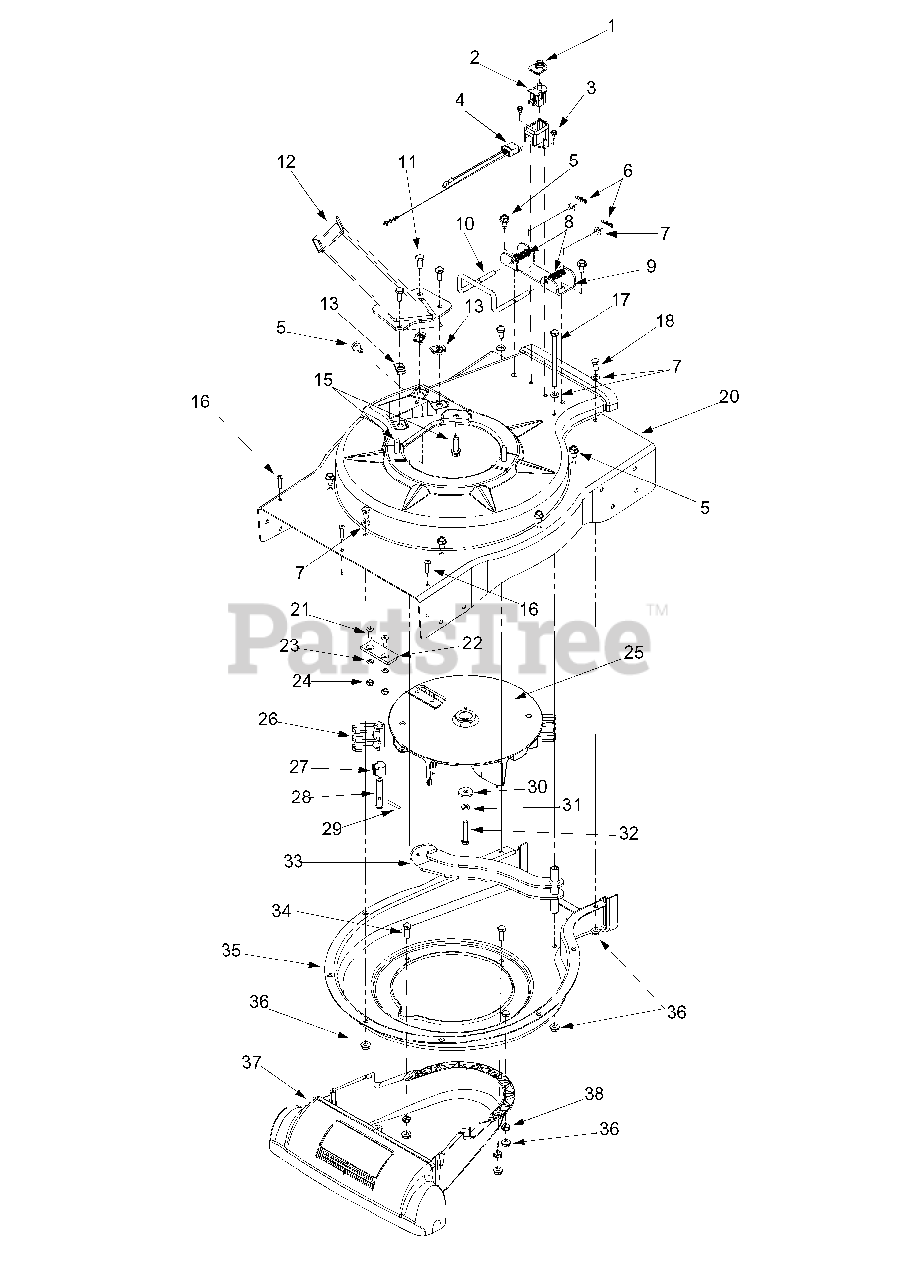

Impeller Assembly Parts Diagram

  • Title

1

MTD 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

2

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

3

MTD 710-0224

Hex Washer Screw #10-16 x .50
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

4

MTD 629-0920

Wire Harness
(Superseded to 629-0920A)

$41.99

$

Usually ships in 3-6 days

0

5

MTD 710-0604

Hex Washer Screw 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 1 left!

0

8

MTD 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

MTD 781-0778

Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

MTD 781-0778-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

10

MTD 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

11

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 681-0122

Chipper Chute Ass'y

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

13

MTD 726-0454

U-Clip Lock Nut 5/16-18

$

$

Not available

15

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

16

MTD 710-0969

Screw #12-16 x 1.0

$4.49

$

In Stock, only 2 left!

0

17

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

18

MTD 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

MTD 781-0720

Upper Housing

Variations

MTD 781-0720-0498

No Longer Available HOUSING FL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0720-0638

No Longer Available HOUSING FL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0720-0662

No Longer Available HOUSING FL - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0720-0665

No Longer Available HOUSING FL - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0720-0689

No Longer Available HOUSING FL - POLO GREEN (0689)

$

$

Not available

MTD 781-0720-0716

No Longer Available HOUSING FL - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

22

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 10

0

23

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0411

Hex Lock Nut 5/16-24

$4.49

$

In Stock, Qty 20+

0

25

MTD 681-0152

Impeller Ass'y
(Superseded to 981-0152)

$534.99

$

Usually ships in 3-6 days

0

26

MTD 719-0329

Flail Blade

$31.99

$

In Stock, Qty 5

0

27

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

28

MTD 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

29

MTD 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 15

0

30

MTD 736-0247

Flat Washer 3/8 ID x 1.25 OD

$9.49

$

In Stock, Qty 16

0

31

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 9

0

32

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

Usually ships in 3-6 days

0

33

MTD 681-0154

Screen Ass'y
(Superseded to 681-0154-0637)

Variations

MTD 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

34

MTD 710-3038

Hex Cap Screw 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

35

MTD 781-0721

Lower Housing
(Superseded to 781-0721B)

Variations

MTD 781-0721-0498

LOWER FLAIL HOUSING - OLD CUB YELLOW (0498)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721-0638

LOWER FLAIL HOUSING - MTD/TROY-BILT RED (0638)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721-0716

LOWER FLAIL HOUSING - CUB YELLOW-99 (0716)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

36

MTD 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

MTD 731-1905

Nozzle Cover
(Superseded to 731-1905A)

$123.99

$

Usually ships in 3-6 days

0

38

MTD 712-0158

Lock Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0
