247.770100 (24A-031E099) - Craftsman Vacuum (1999) (Sears) General Assembly Parts Diagram

Vacuum

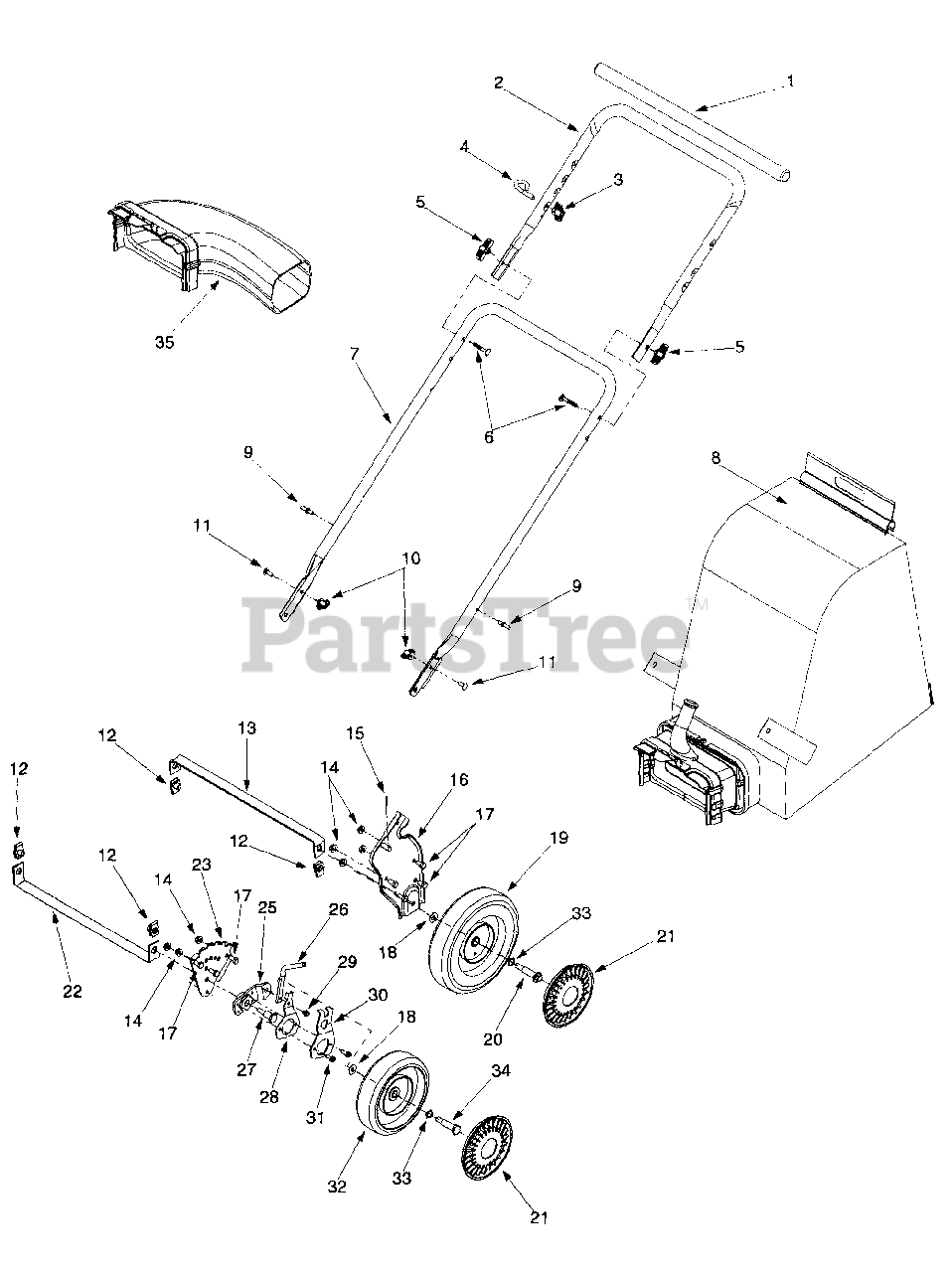

General Assembly Parts Diagram

  • Title

1

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

2

MTD 749-0438C

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0276

Handle Knob 5/16-18
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

6

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

7

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

8

MTD 664-0094

Bag Ass'y
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0

9

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

10

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 726-0453

Lock U-Clip Nut 3/8-16

$

$

Not available

13

MTD 781-0777

Rear Wheel Support Brace

Variations

MTD 781-0777-0637

No Longer Available BRACE REAR - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

MTD 681-0155

Handle Bracket Ass'y LH

Variations

MTD 681-0155-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0155-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0155-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0155-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0155-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156

Handle Bracket Ass'y RH

Note: (Not Shown)

Variations

MTD 681-0156-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0156-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0156-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0156-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

MTD 681-0156-0716

No Longer Available BRACKET AS - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0156-0721

No Longer Available BRACKET AS - SEARS RED (0721)

$

$

Not available

MTD 681-0156-4044

No Longer Available BRACKET AS - CRAFTSMAN RED (4044)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

17

MTD 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

18

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

19

MTD 734-1992

Wheel 9 x 2

$54.99

$

Usually ships in 3-6 days

0

20

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

21

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

22

MTD 781-0725

Front Wheel Support Brace
(Superseded to 781-0725A-0637)

Variations

MTD 781-0725-0637

BRACE-FRONT WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 781-0765

Hgt Bracket Adjuster LH
(Superseded to 781-0765-0637)

Variations

MTD 781-0765-0637

BRACKET HGT. ADJ. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 781-0766

Hgt Bracket Adjuster RH

Note: (Not Shown)

Variations

MTD 781-0766-0637

Height Bracket Adjuster RH - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 748-0417

Pivot Arm

$

$

Not available

26

MTD 747-1100

Handle Height Adjuster

$

$

Not available

27

MTD 738-1017

Shoulder Screw 3/8-16

$

$

Not available

28

MTD 732-0864

Height Adjuster Plate Spring

$

$

Not available

29

MTD 710-0653

Hex Washer Screw 1/4-20 x.375

$4.49

$

In Stock, Qty 7

0

30

MTD 782-0578

Spring Lever Support Bracket

Variations

MTD 782-0578-0637

No Longer Available BRACKET SP - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

MTD 734-1978

Wheel 8 x 2

$48.99

$

Usually ships in 3-6 days

0

33

MTD 736-0232

Wave Washer .531 ID x .781 OD

$4.99

$

In Stock, Qty 12

0

34

MTD 738-0213

Shoulder Screw

$7.99

$

In Stock, only 2 left!

0

35

MTD 631-0090

Blower Chute Assembly
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0
