MTD 247-652C000 - MTD Chipper Shredder (1997) Frame Assembly/Handle Parts Lookup with Diagrams

1

MTD 749-0784-0637

HANDLE-UPPER-PAINT - POWDER BLACK (0637)

(Superseded to 749-0784-0637) 

Variations

MTD 749-0784-0637

HANDLE-UPPER-PAINT - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

$129.99

$

Usually ships in 3-6 days

2

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 2 left!

3

MTD 720-0171

Crank Knob

(Superseded to 920-0171) 

$15.99

$

In Stock, only 1 left!

4

MTD 736-0117

Fl-Wash. .385" I.D. x .62"

(Superseded to 936-0117) 

$7.49

$

In Stock, only 2 left!

5

MTD 714-0114

Sq. Key 1/4" x 2.0" Lg.

(Superseded to 914-0114) 

Note: Used with keyed engine crankshaft.

$4.49

$

Usually ships in 3-6 days

6

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.

(Superseded to 710-0805A) 

$4.49

$

In Stock, Qty 20+

7

MTD 16453-0637

No Longer Available FRAME ASM-ENG MTG - POWDER BLACK (0637)

Variations

MTD 16453-0637

No Longer Available FRAME ASM-ENG MTG - POWDER BLACK (0637)

$

Not available 

MTD 16453-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 16453-0691

No Longer Available - BLACK JACK (0691)

$

Not available 

MTD 16453-0709

FRAME ASM-ENG MTG - MASTERCRAFT GREEN (0709)

$

Not available 

$

Not available 

8

MTD 736-0119

L-Wash. 5/16" I.D.

(Superseded to 936-0119) 

$4.99

$

In Stock, Qty 20+

9

MTD 712-0267

Hex Nut 5/16-18 Thd.

(Superseded to 912-3010) 

$4.49

$

In Stock, Qty 20+

10

MTD 736-0187

Fl-Wash. .63" I.D. x 1.25"

$4.49

$

In Stock, Qty 20+

11

MTD 714-0115

Cotter Pin 1/18" Dia. x 1.0"

$3.99

$

In Stock, only 2 left!

12

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

13

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

14

MTD 734-1036

Swivel Caster Wheel 5" Dia. x 1.25"

$75.99

$

Usually ships in 3-6 days

15

MTD 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

Variations

MTD 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

Not available 

MTD 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

Not available 

MTD 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

Not available 

MTD 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

Not available 

MTD 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

Not available 

MTD 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

Not available 

MTD 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

Not available 

MTD 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

Not available 

$

Not available 

16

MTD 710-0726

Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

17

MTD 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

Variations

MTD 14529-0637

BRACKET-CASTER ARM - POWDER BLACK (0637)

$

Not available 

MTD 14529-0638

BRACKET-CASTER ARM - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 14529-0691

BRACKET-CASTER ARM - BLACK JACK (0691)

$

Not available 

MTD 14529-0709

No Longer Available BRACKET-CA - MASTERCRAFT GREEN (0709)

$

Not available 

$

Not available 

18

MTD 747-0542

Height Adjustment Crank

$20.99

$

Usually ships in 3-6 days

19

MTD 736-0451

Saddle Wash. .32" I.D. x .93"

$4.49

$

In Stock, Qty 10

20

MTD 736-0159

Fl-Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

21

MTD 710-0170

Hex L-Bolt 5/16-24 x .64" Lg.

$6.99

$

In Stock, Qty 11

23

MTD 736-0300

Fl-Wash. .38" I.D. x .57"

$4.49

$

In Stock, Qty 20+

24

MTD 750-0528

Spacer .382" I.D. x .50" x .180" Lg.

(Superseded to 950-0528) 

$

Not available 

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

26

MTD 712-0354

Hex Nut 3/8-8 Thd.

(Superseded to 912-0354) 

$

Not available 

27

MTD 710-0118

Hex Nut Bolt 5/16-18 x .75" Lg.

(Superseded to 710-3008) 

$4.49

$

In Stock, Qty 20+

28

MTD 711-0797

Ferrule

(Superseded to 911-0797) 

$

Not available 

29

MTD 720-0241

Handle Knob

(Superseded to 720-04072A) 

$6.99

$

In Stock, Qty 20+

30

MTD 710-1174

Carriage Knob

$7.49

$

In Stock, Qty 20+

31

MTD 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)

Variations

MTD 749-0785-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

Not available 

$

Not available 

32

MTD 734-1035

Wheel Ass'y. Comp. 12" x 3"

$118.99

$

Usually ships in 3-6 days

33

MTD 738-0185

Rear Axle

$

Not available 

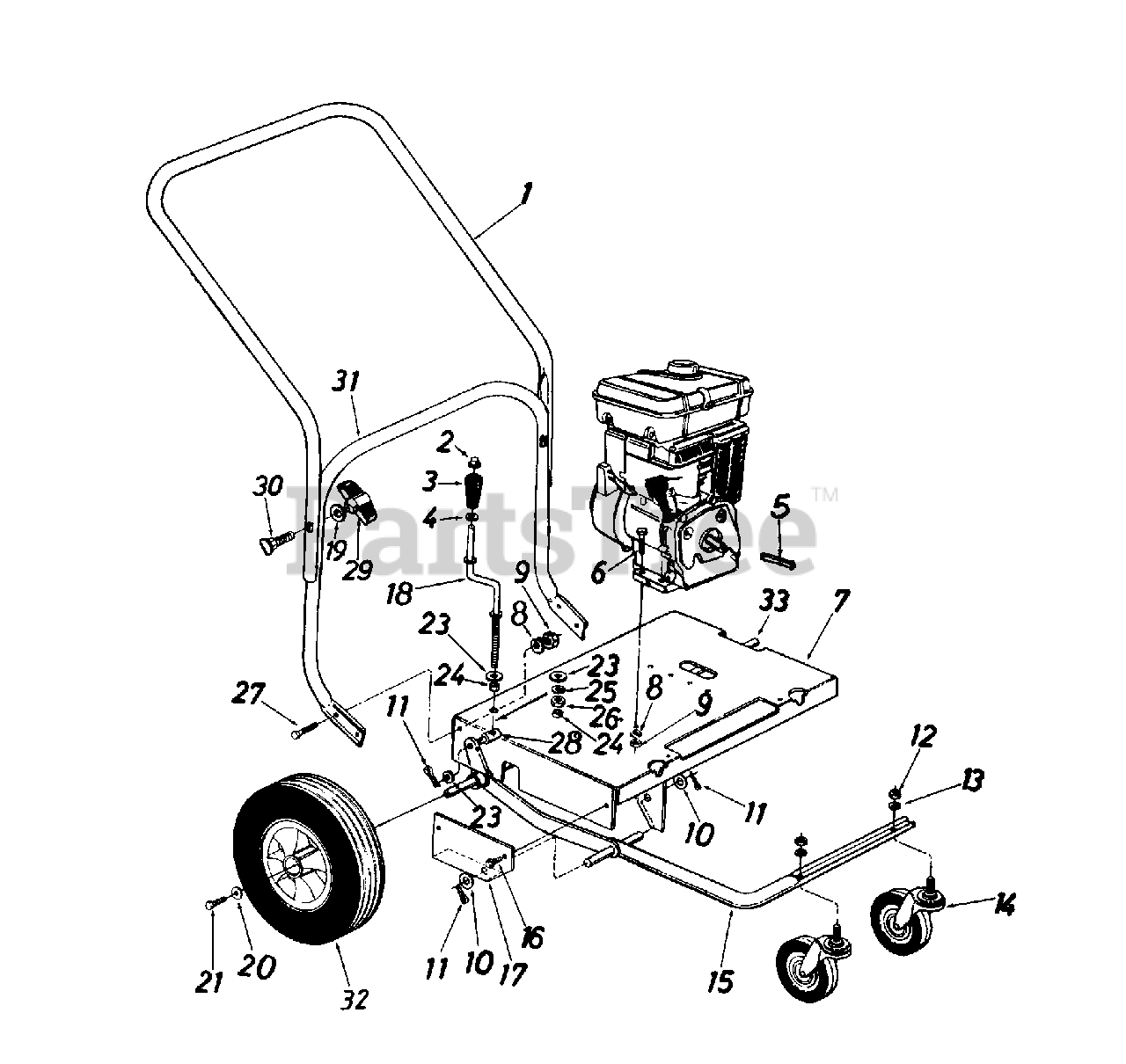

247-652C000 - MTD Chipper Shredder (1997) Frame Assembly/Handle Parts Diagram
