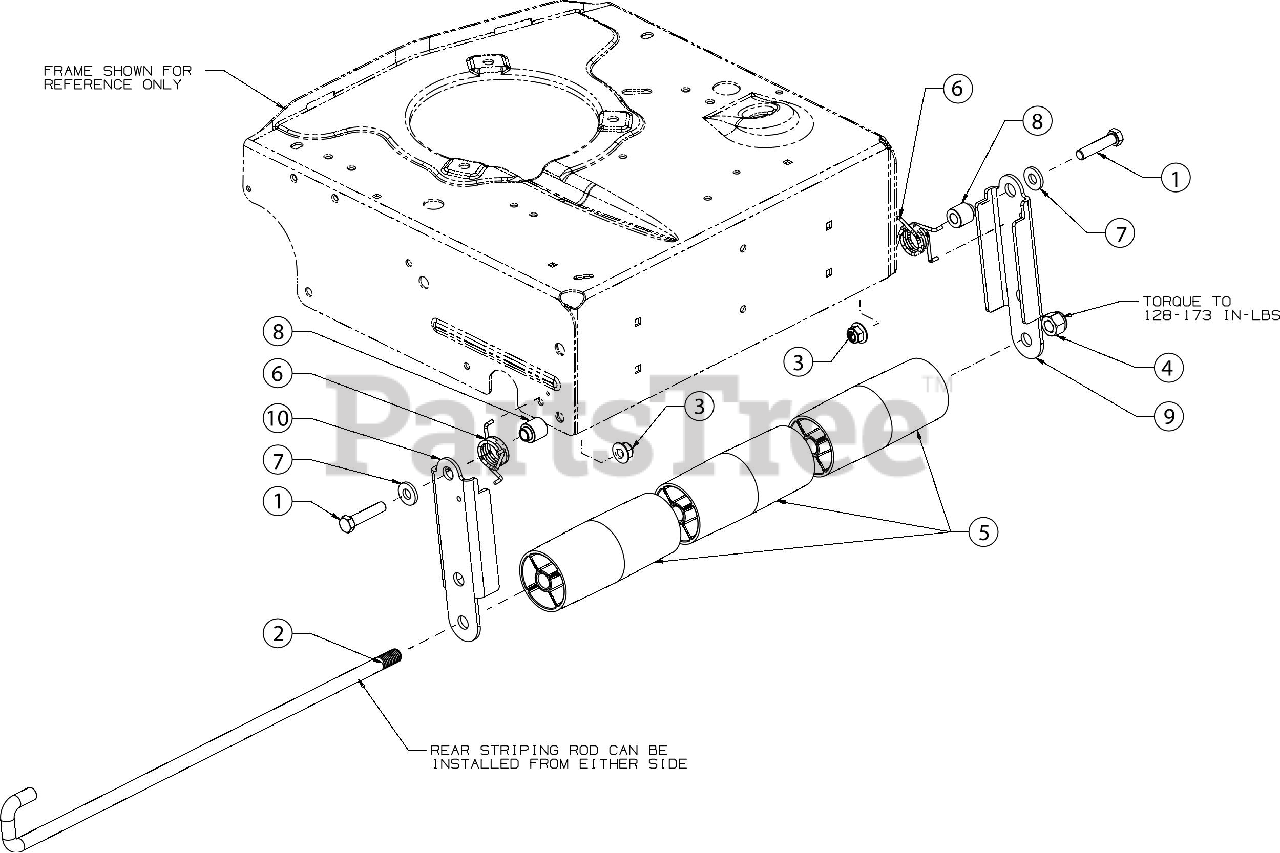

247.397900 (12ABW35T799) - Craftsman Walk-Behind Mower (2017) Rear Roller Parts Diagram

Walk-Behind Mower

Rear Roller Parts Diagram

  • Title

1

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

2

MTD 711-06277A

J HOOK

$28.99

$

Usually ships in 3-6 days

0

3

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

5

MTD 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

6

MTD 732-05456

TORSION SPRING

$6.49

$

Usually ships in 3-6 days

0

7

MTD 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 6

0

8

MTD 750-06036

CASTER HUB
(Superseded to 750-06036A)

$4.49

$

In Stock, Qty 16

0

9

MTD 787-03601A

ROLLER BRACKET - (RH)

Note: (Choose Color When Ordering)

Variations

MTD 787-03601A-0637

ROLLER BRACKET - R - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 787-03601A-0691

ROLLER BRACKET - R - BLACK JACK (0691)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

10

MTD 787-03645A

ROLLER BRACKET - (LH)

Note: (Choose Color When Ordering)

Variations

MTD 787-03645A-0637

ROLLER BRACKET - L - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 787-03645A-0691

ROLLER BRACKET - L - BLACK JACK (0691)

$17.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0
