247.397750 (12AVP7BB799) - Craftsman Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

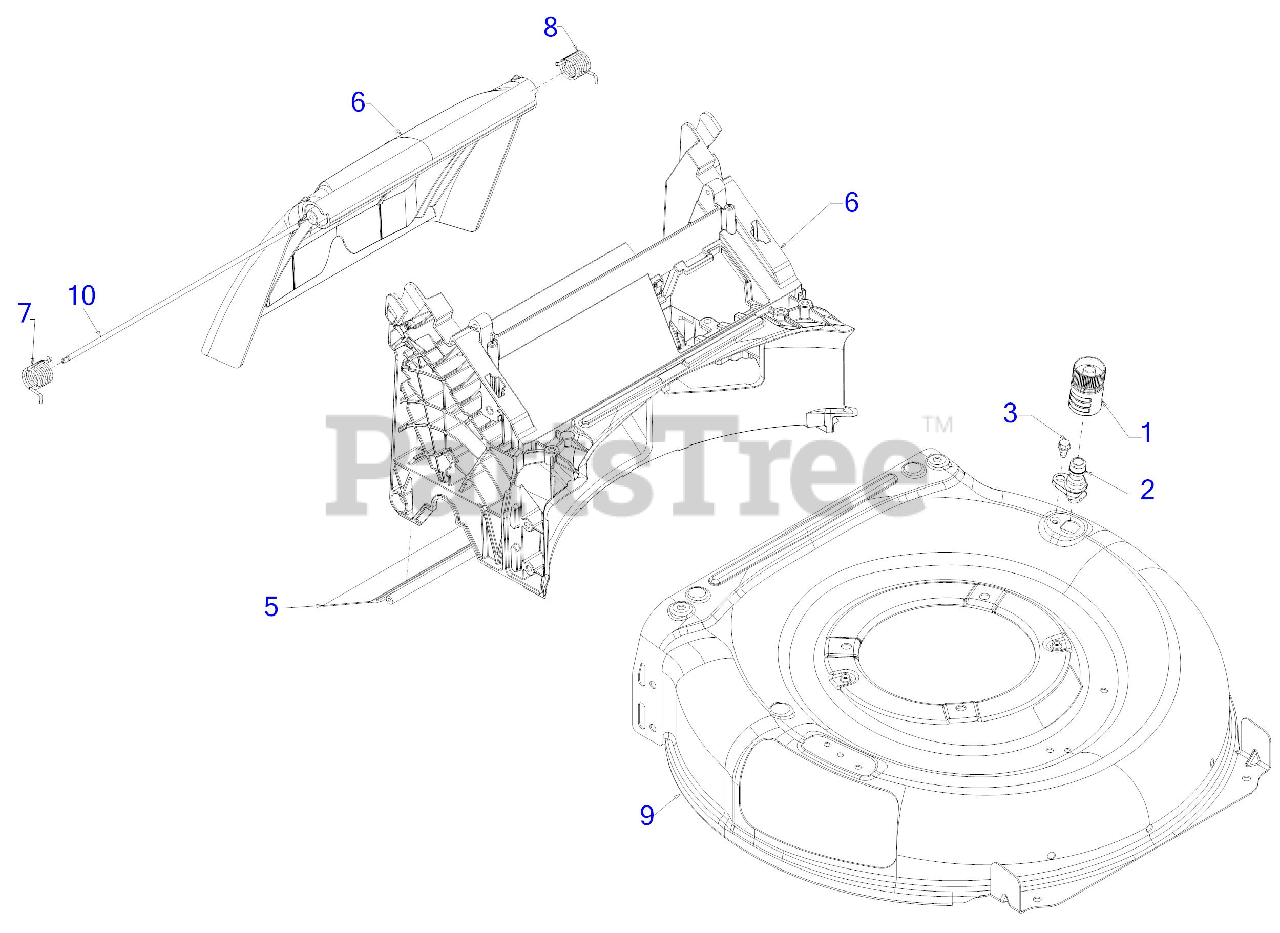

Deck Assembly Parts Diagram

  • Title

1

MTD 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

2

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 3 left!

0

3

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 15

0

4

MTD 731-09208

MULCH PLUG

$15.99

$

In Stock, only 1 left!

0

5

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 3 left!

0

6

MTD 631-05643

REAR BAFFLE ASSEMBLY

$94.99

$

In Stock, only 1 left!

0

7

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

Usually ships in 3-6 days

0

8

MTD 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

9

MTD 687-05209

21" DECK ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 687-05209-4028

DECK SHELL 21" CAS - SEARS YELLOW (4028)

$155.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

10

MTD 747-07046

REAR DOOR PIVOT ROD

$

$

Not available
