247.397700 (12AVD75R799) - Craftsman Walk-Behind Mower (2017) Deck Assembly Parts Diagram

Walk-Behind Mower

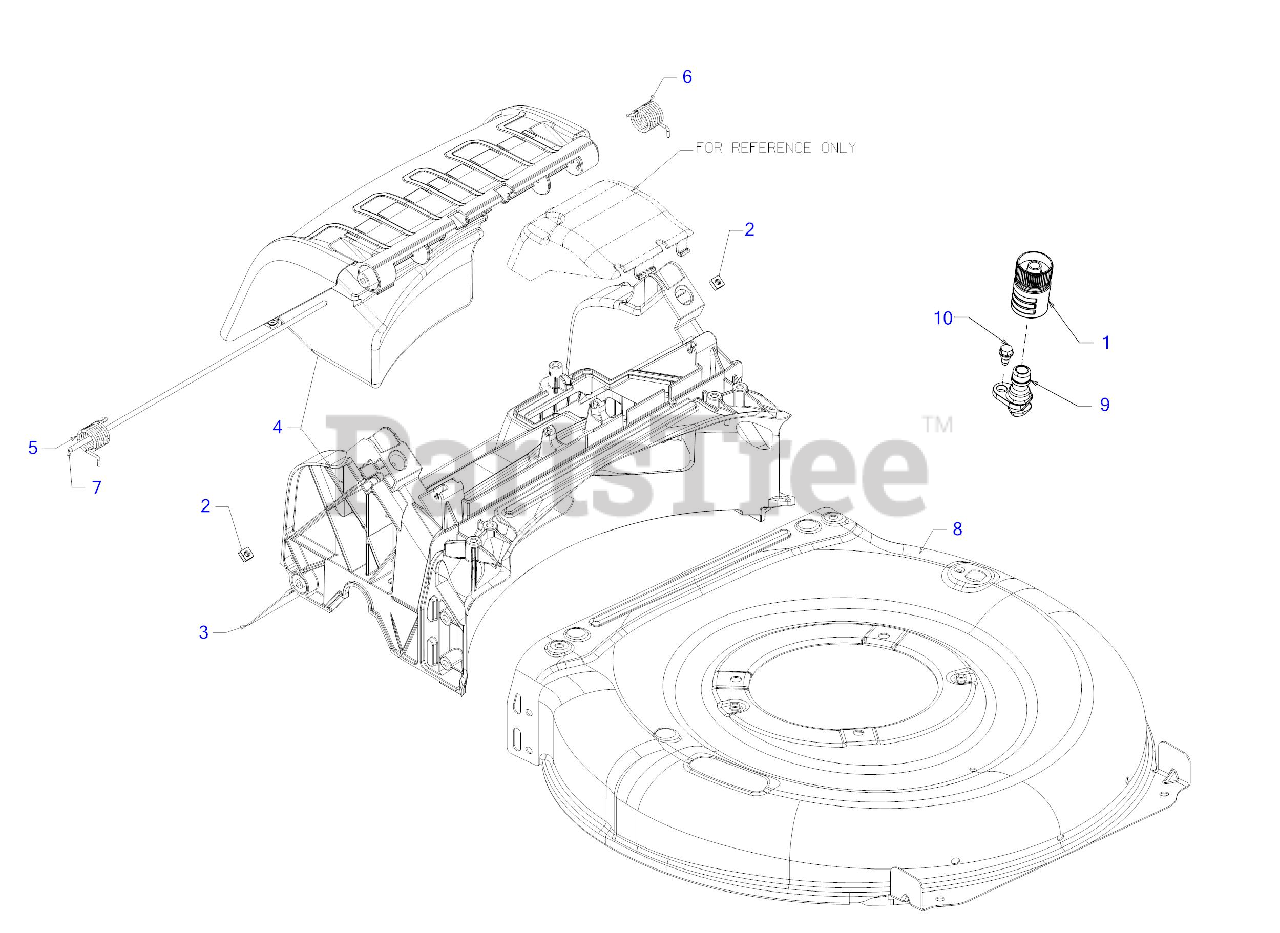

Deck Assembly Parts Diagram

  • Title

1

MTD 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

2

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 3 left!

0

4

MTD 631-04553A

REAR BAG BAFFLE ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

Usually ships in 3-6 days

0

6

MTD 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

Usually ships in 3-6 days

0

8

MTD 687-05209

21" CASTER DECK SHELL

Note: (Choose Color When Ordering)

Variations

MTD 687-05209-4028

DECK SHELL 21" CAS - SEARS YELLOW (4028)

$155.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

9

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 3 left!

0

10

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 15

0
