247.397700 (12AVD75R799) - Craftsman Walk-Behind Mower (2016) Deck Assembly Parts Diagram

Walk-Behind Mower

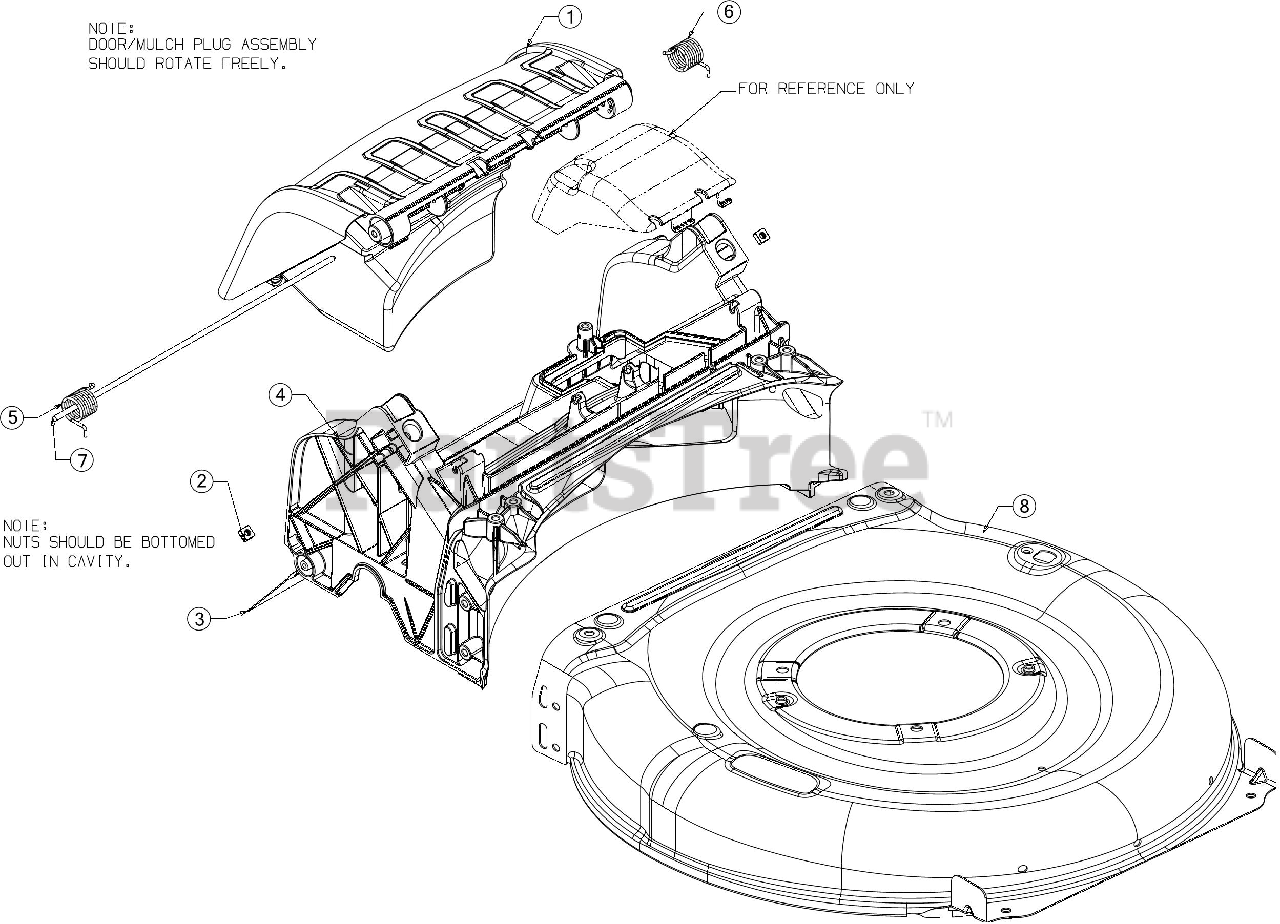

Deck Assembly Parts Diagram

  • Title

1

N/A

DOOR ASSEMBLY

Note: (Not Serviceable; Order Part Number 631-04553A)

$

$

Not available

2

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

MTD 731-07203

TRAILSHIELD

$10.99

$

Usually ships in 3-6 days

0

4

N/A

REAR BAFFLE

Note: (Not Serviceable; Order Part Number 631-04553A)

$

$

Not available

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

MTD 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

8

MTD 687-05209

21" CASTER DECK SHELL

Variations

MTD 687-05209-4028

DECK SHELL 21" CAS - SEARS YELLOW (4028)

$155.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

MTD 631-04553A

REAR BAG BAFFLE ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0
