247.389170 (11A-25G099) - Craftsman Walk-Behind Mower (2011) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

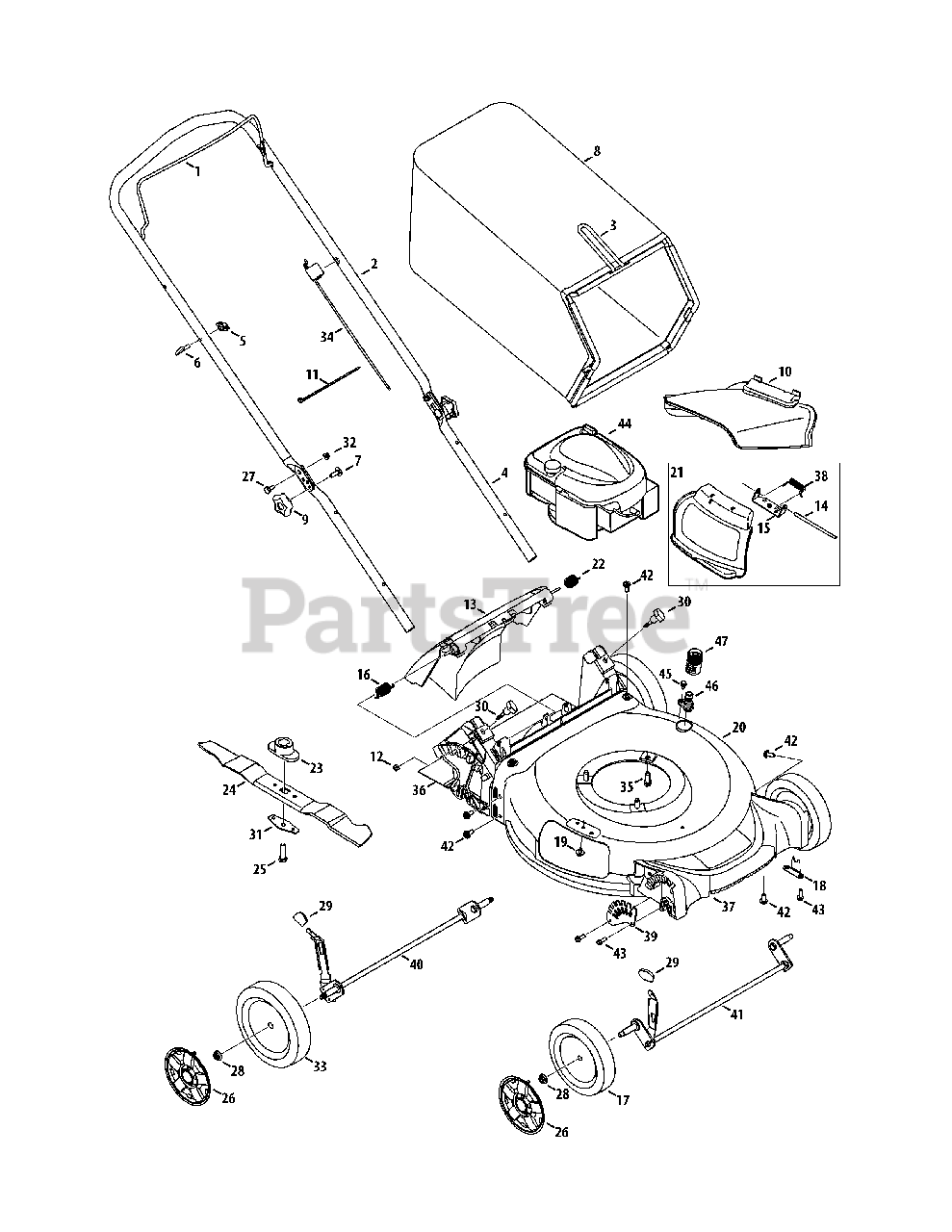

General Assembly Parts Diagram

  • Title

1

MTD 747-05204-0637

Blade Control

$22.99

$

Usually ships in 3-6 days

0

2

MTD 749-04682-0637

Upper Handle
(Superseded to 749-04682A)

$51.99

$

Usually ships in 3-6 days

0

3

MTD 747-05450

Grass Catcher Frame-Red
(Superseded to 747-05450-4044)

Variations

MTD 747-05450-4044

Grass Bag Frame - CRAFTSMAN RED (4044)

$41.99

$

In Stock, only 3 left!

0

$41.99

$

In Stock, only 3 left!

0

3

MTD 747-05226-0637

Grass Catcher Frame-Black
(Superseded to 647-04271-0637)

$41.99

$

In Stock, Qty 20+

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

Usually ships in 3-6 days

0

8

MTD 964-04154

Grass Bag
(Superseded to 964-04154B)

$38.99

$

In Stock, only 1 left!

0

9

MTD 720-04072A

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 731-07486

Side Chute

$16.99

$

Usually ships in 3-6 days

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 1 left!

0

13

MTD 631-04369

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

In Stock, only 1 left!

0

14

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

MTD 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

17

MTD 634-04642

Wheel, 7 x 2

$26.99

$

In Stock, only 1 left!

0

18

MTD 787-01819

Axle Retainer Bracket

$6.99

$

In Stock, only 1 left!

0

19

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

MTD 787-01874A-0691

Deck - 21"
(Superseded to 787-01874C-0691)

$143.99

$

Usually ships in 3-6 days

0

21

MTD 987-02516

Hinged Mulch Plug Assembly
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

22

MTD 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

23

MTD 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

Usually ships in 3-6 days

0

26

MTD 731-07531

Hub Cap - Front

$4.99

$

In Stock, only 2 left!

0

26a

MTD 731-07532

Hub Cap - Rear

$4.99

$

Usually ships in 3-6 days

0

27

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-

$4.49

$

In Stock, Qty 14

0

28

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-04130

Adjustment Lever Knob

$4.99

$

In Stock, only 1 left!

0

30

MTD 720-04123A

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, only 3 left!

0

31

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 18

0

32

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-04568

Wheel, 8 x 2.125

$27.99

$

Usually ships in 3-6 days

0

34

MTD 946-04661

Control Cable
(Superseded to 946-04661A)

$13.99

$

In Stock, Qty 5

0

35

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

36

MTD 731-07203

Trail shield

$10.99

$

In Stock, only 3 left!

0

37

MTD 731-07174A

Front Cover
(Superseded to 731-17051)

$37.99

$

In Stock, only 1 left!

0

38

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

39

MTD 787-01818A-0637

Front Height Adjuster Plate

$10.99

$

In Stock, only 1 left!

0

40

MTD 911-04142

Rear Axle Assembly
(Superseded to 911-04142A)

$31.99

$

In Stock, Qty 8

0

41

MTD 911-04143B

Front Axle Assembly
(Superseded to 611-04143B)

$30.99

$

In Stock, only 3 left!

0

42

MTD 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

44

N/A

Engine 128T02-0866-B1

Note: Purchase locally

$

$

Not available

45

MTD 738-04278

Screw, 1/4-20 x .500

$6.99

$

In Stock, Qty 7

0

46

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 6

0

47

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0
