247.385100 (11A-088A099) - Craftsman Walk-Behind Mower (2010) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

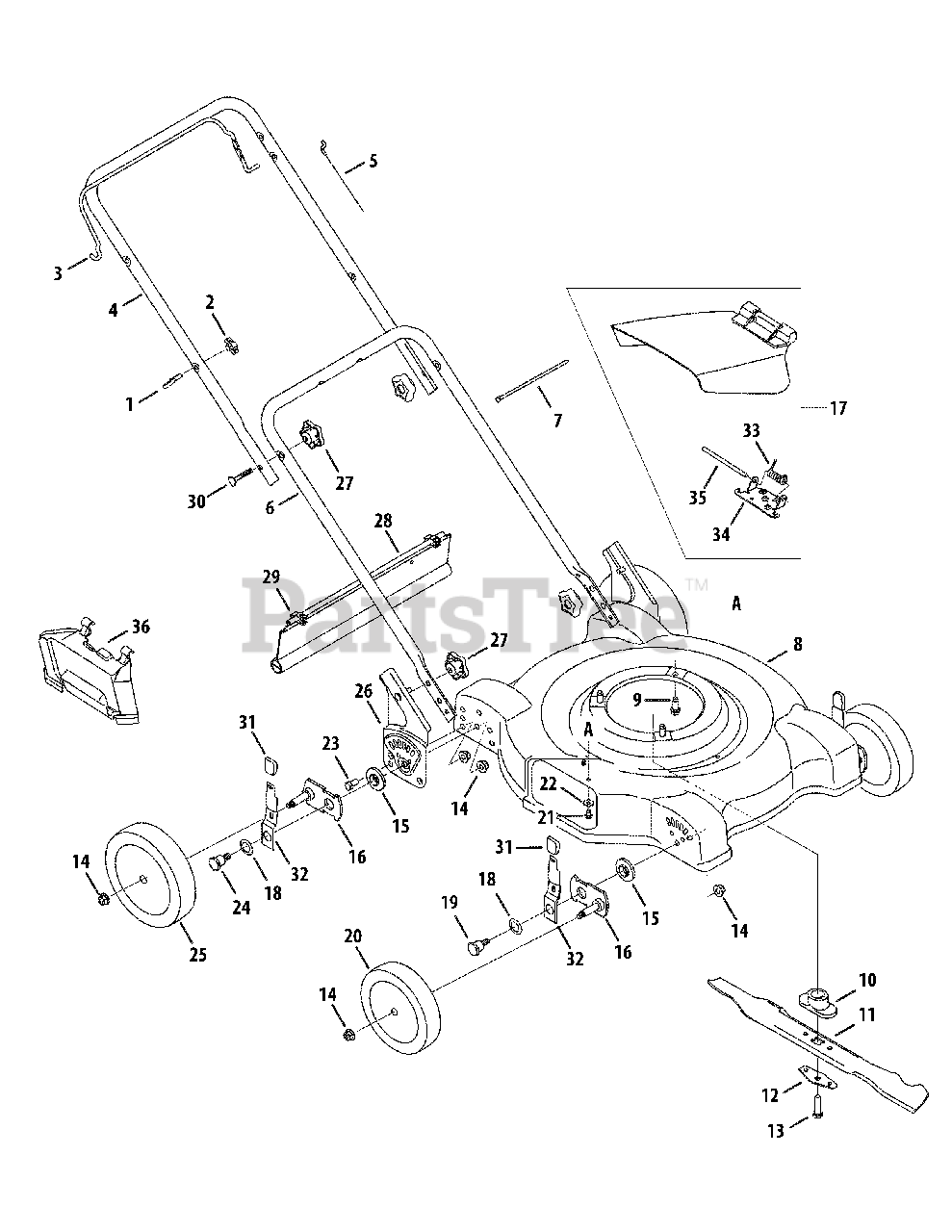

General Assembly Parts Diagram

  • Title

1

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

2

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

3

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

4

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

5

MTD 746-0957

Control Cable
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

6

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 687-02048A-4043

Deck Assembly, 22"

$

$

Not available

9

MTD 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

11

MTD 742-0742A-0637

Mulching Blade, 22"

$

$

Currently unavailable

12

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

13

MTD 710-1044

Screw, 3/8-24 x 1.5

$3.99

$

In Stock, only 2 left!

0

14

MTD 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 741-04242

Height Adjuster Bearing

$7.49

$

Usually ships in 3-6 days

0

16

MTD 687-02342

Pivot Arm

$15.99

$

In Stock, only 2 left!

0

17

MTD 931-1034B

Hinged Chute Deflector Assembly

$72.99

$

In Stock, Qty 5

0

18

MTD 736-0741

Bell Washer, .760 OD x 1.25 OD

$4.99

$

Usually ships in 3-6 days

0

19

MTD 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

20

MTD 734-1988

Front Wheel, 7 x 1.8, Bar

$20.99

$

In Stock, only 4 left!

0

21

MTD 710-0599

TT Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer, .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0216

Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

24

MTD 738-1173

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

25

MTD 734-1987

Rear Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, Qty 5

0

26

MTD 682-3064-0637

Handle Bracket Assembly, RH

$

$

Not available

26

MTD 682-3065-0637

Handle Bracket Assembly, LH

$39.99

$

Usually ships in 3-6 days

0

27

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

28

MTD 731-04019

Trailshield

$21.99

$

In Stock, Qty 12

0

29

MTD 17098P

Hinge Clip

$

$

Not available

30

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

31

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-1026

Lever

$6.99

$

In Stock, only 1 left!

0

33

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

34

MTD 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

35

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 631-04045

Mulching Baffle

$19.99

$

In Stock, Qty 10

0
