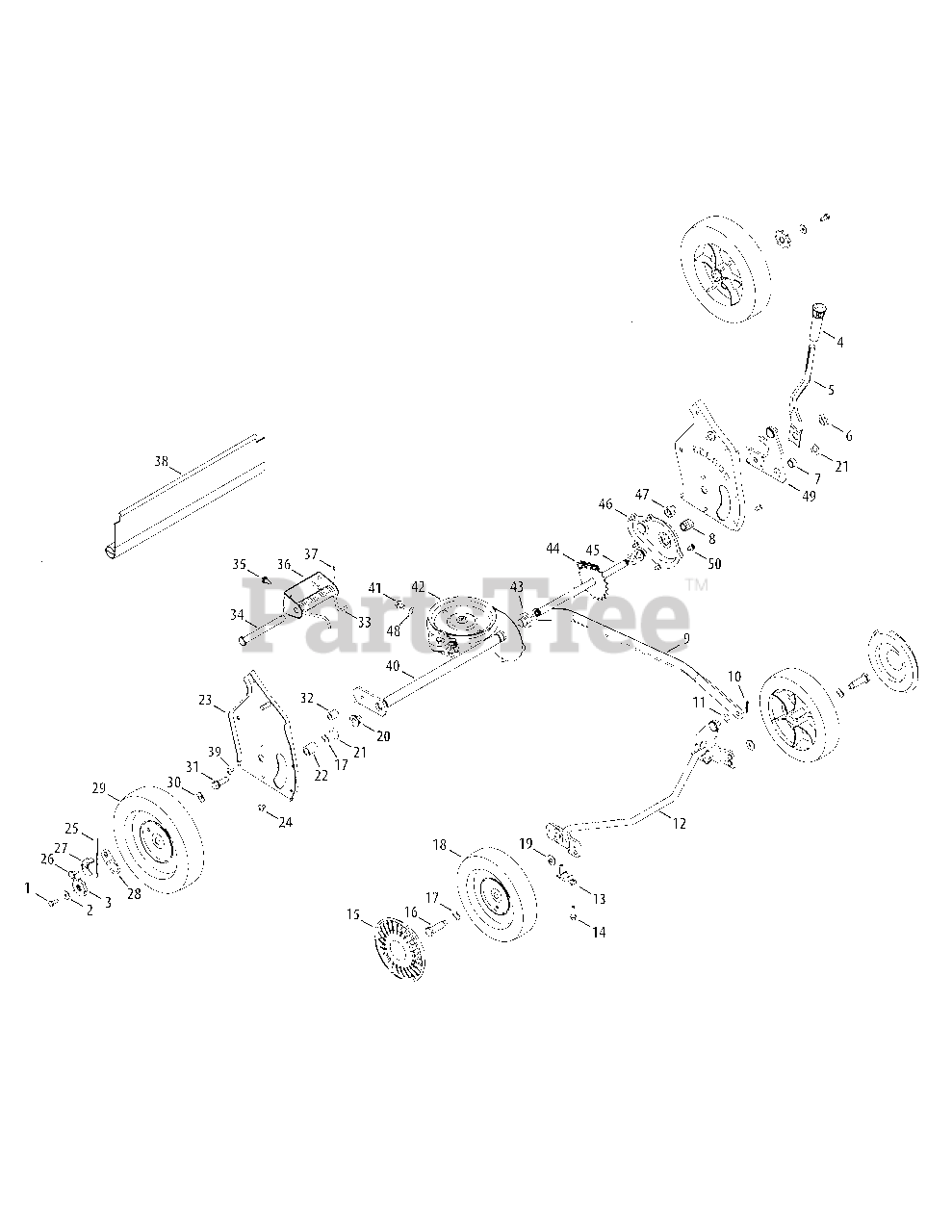

247.381091 (12A-948K299) - Craftsman Walk-Behind Mower (2012) Deck Assembly Parts Diagram

Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

1

MTD 710-0751

HH Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

2

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, only 3 left!

0

3

MTD 948-0318

Wheel Ratchet

$10.99

$

In Stock, only 2 left!

0

4

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

5

MTD 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

6

MTD 938-0529

Shoulder Nut

$11.99

$

In Stock, only 2 left!

0

7

MTD 750-0515

Spacer .51 x .70 x .38

$4.49

$

In Stock, only 4 left!

0

8

MTD 741-0978

Hex Sleeve Bearing

$4.99

$

In Stock, only 3 left!

0

9

MTD 782-0565-0637

Single Lever Control Arm

$34.99

$

Usually ships in 3-6 days

0

10

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0286

Spring Washer

$6.99

$

In Stock, only 2 left!

0

12

MTD 611-0064-0637

Front Axle Assembly

$97.99

$

Usually ships in 3-6 days

0

13

MTD 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

14

MTD 710-1241

Hex Screw 1/4-15 x 1

$6.99

$

In Stock, Qty 19

0

15

MTD 731-07001

Hubcap

$5.49

$

In Stock, only 2 left!

0

16

MTD 938-0102

Shoulder Scr., .498x1.445x3/8-16
(Superseded to 738-0102)

$

$

Not available

17

MTD 936-0504

Wave Washer .510 x .750 x .017

$4.49

$

In Stock, Qty 10

0

18

MTD 734-04226A

Front Wheel

$54.99

$

In Stock, Qty 18

0

19

MTD 736-0105

Bell Washer .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0324A

Hex Flange Bearing

$7.99

$

In Stock, Qty 5

0

21

MTD 936-0369

Flat Washer .508 x 1 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

22

MTD 950-0151

Spacer .550 x .755 x 1.1

$10.99

$

In Stock, Qty 20+

0

23

MTD 687-02494-0637

Handle Bracket Assy RH

$29.99

$

Usually ships in 3-6 days

0

23a

MTD 687-02495-0637

Handle Bracket Assy LH

$29.99

$

Usually ships in 3-6 days

0

24

MTD 710-1348

AB Screw 1/4-14 x .50

$6.99

$

In Stock, only 3 left!

0

25

MTD 10622BP

Plastic Ratchet Spring
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

26

MTD 938-0137A

Shoulder Scr., .340x.285x1/4-20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

27

MTD 748-0381

Pawl - RH

$11.99

$

In Stock, only 1 left!

0

27a

MTD 948-0188B

Pawl - LH

$11.99

$

Usually ships in 3-6 days

0

28

MTD 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 6

0

29

MTD 734-2010B

Rear Wheel

$51.99

$

In Stock, Qty 20+

0

30

MTD 912-0414

Weld Nut
(Superseded to 712-0414)

$4.49

$

In Stock, only 4 left!

0

31

MTD 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

32

MTD 750-0807

Spacer .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

33

MTD 732-0832

Torsion Spring RH

$19.99

$

Usually ships in 3-6 days

0

34

MTD 911-0835

Clevis Pin .500 x 4.62

$12.99

$

Usually ships in 3-6 days

0

35

MTD 710-1652

TT Screw 1/4-20 x .625

$4.49

$

Usually ships in 3-6 days

0

36

MTD 782-0568B-0637

Lift Assist Spring Bracket

$

$

Not available

37

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

38

MTD 731-06874

Trail shield

$20.99

$

In Stock, only 1 left!

0

39

MTD 710-0779A

AB Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

40

MTD 682-7526-0637

Transmission Axle Assembly

$131.99

$

Usually ships in 3-6 days

0

41

MTD 710-0604A

TT Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

42

MTD 918-0263A

Transmission

$

$

Not available

43

MTD 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

44

MTD 913-0453

Chain

$12.99

$

Usually ships in 3-6 days

0

45

MTD 938-0012A

Axle Assembly RR

$74.99

$

Usually ships in 3-6 days

0

46

MTD 682-7528-0637

Chain Cover Assembly

$

$

Not available

47

MTD 950-1056

Shoulder Spacer .385 x .715

$7.49

$

Usually ships in 3-6 days

0

48

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

49

MTD 682-0531-0637

RR Pivot Arm Assembly

$30.99

$

Usually ships in 3-6 days

0

50

MTD 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0
