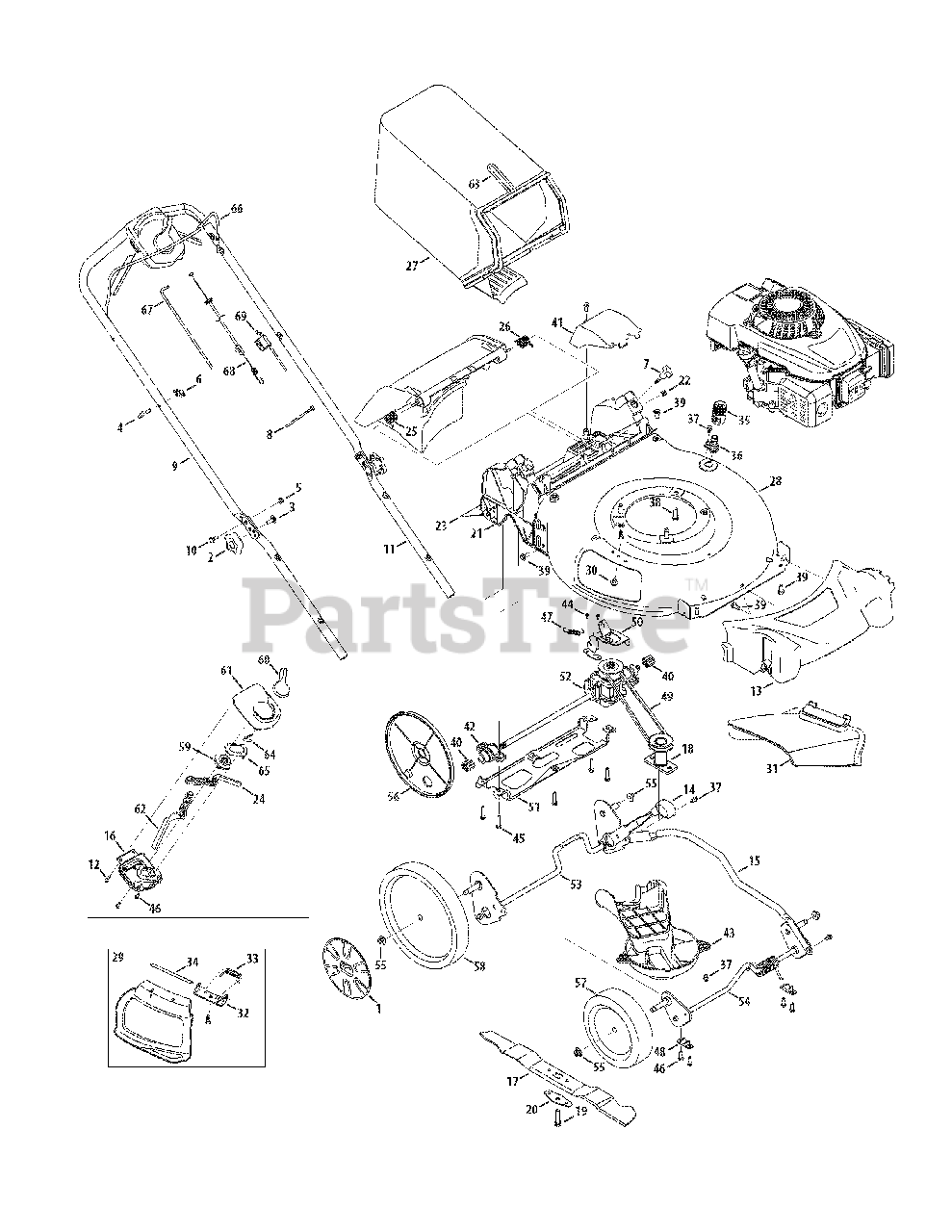

247.379990 (12AKD38S799) - Craftsman Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 731-07173

Hubcap - Front

$6.49

$

In Stock, only 4 left!

0

1

MTD 731-07533

Hubcap - Rear

$6.99

$

In Stock, only 4 left!

0

2

MTD 720-04072A

Wing Knob

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

4

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-05066A

Wing Knob

$4.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

MTD 749-04701A-0637

Upper Handle

$45.99

$

In Stock, only 1 left!

0

10

MTD 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

12

MTD 710-05204

Scr., Shldr, 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

13

MTD 731-10307

Front Cover

$42.99

$

Usually ships in 3-6 days

0

14

MTD 720-04113

Adjustment Knob

$10.99

$

In Stock, only 2 left!

0

15

MTD 949-04840B-0637

Tube, Link

$38.99

$

Usually ships in 3-6 days

0

16

MTD 731-07764A

Lower Housing

$18.99

$

Usually ships in 3-6 days

0

17

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

18

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 2 left!

0

19

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 8

0

20

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

21

MTD 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

22

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

23

MTD 731-07203

Trail Shield

$10.99

$

In Stock, Qty 6

0

24

MTD 731-07766

Control Lever LH

$6.99

$

Usually ships in 3-6 days

0

25

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

26

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

27

MTD 964-05024

Grass Bag

$63.99

$

Usually ships in 3-6 days

0

28

MTD 787-02002B-4044

21" Deck

$143.99

$

Usually ships in 3-6 days

0

29

MTD 987-02516A

Mulch Plug (Incl. 32-34)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

30

MTD 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

31

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, only 3 left!

0

32

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

33

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

34

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

35

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

36

MTD 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

37

MTD 738-04502

Scr., Shldr., 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-04683C

Screw, tt, 3/8-16 x 1.00

$6.49

$

In Stock, only 4 left!

0

39

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

40

MTD 917-04849

Spur Gear, 9T

$4.99

$

In Stock, only 2 left!

0

41

MTD 731-07799

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

42

MTD 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 1 left!

0

43

MTD 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

44

MTD 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, Qty 11

0

45

MTD 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

46

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

47

MTD 732-04826A

Exten. Spring, 2.675

$3.99

$

In Stock, only 3 left!

0

48

MTD 741-0492A

Bush., Block

$6.49

$

In Stock, Qty 9

0

49

MTD 954-04282

V-Belt

$28.99

$

In Stock, only 2 left!

0

50

MTD 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

51

MTD 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

52

MTD 918-06000

Transmission Assembly

$148.99

$

In Stock, only 1 left!

0

53

MTD 911-04192

Rear Hgt. Adjust./Axle Assembly
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

54

MTD 911-04191B

Front Axle Assembly

$54.99

$

In Stock, only 3 left!

0

55

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

56

MTD 731-07731C

Wheel Dust Cover

$9.99

$

In Stock, only 1 left!

0

57

MTD 634-04659

Front Wheel, 8 x2

$31.99

$

In Stock, Qty 5

0

58

MTD 934-04699

Rear Wheel, 11 x 2

$44.99

$

In Stock, only 3 left!

0

59

MTD 731-07804

Speed Adjust Actuator

$6.99

$

Usually ships in 3-6 days

0

60

MTD 731-08153

Speed Selec Lever

$6.49

$

Usually ships in 3-6 days

0

61

MTD 731-08750

Upper Housing

$20.99

$

Usually ships in 3-6 days

0

62

MTD 731-08759

Control Lever RH

$10.99

$

Usually ships in 3-6 days

0

63

MTD 747-06137A-4044

Grass Catcher Frame

$47.99

$

In Stock, only 1 left!

0

64

MTD 732-04937

Spring

$3.99

$

In Stock, only 1 left!

0

65

MTD 787-01851

Cable Adjust Plate

$6.49

$

Usually ships in 3-6 days

0

66

MTD 747-05330A-0637

Blade Control

$20.99

$

In Stock, only 1 left!

0

67

MTD 946-04816

Drive Cable

$29.99

$

In Stock, only 2 left!

0

68

MTD 946-04729

Speed Adjustment Cable

$29.99

$

In Stock, only 1 left!

0

69

MTD 946-04661A

Control Cable

$13.99

$

In Stock, Qty 20+
