247.379550 (12A-N2M7799) - Craftsman Walk-Behind Mower (2019) Control Bail Parts Diagram

Walk-Behind Mower

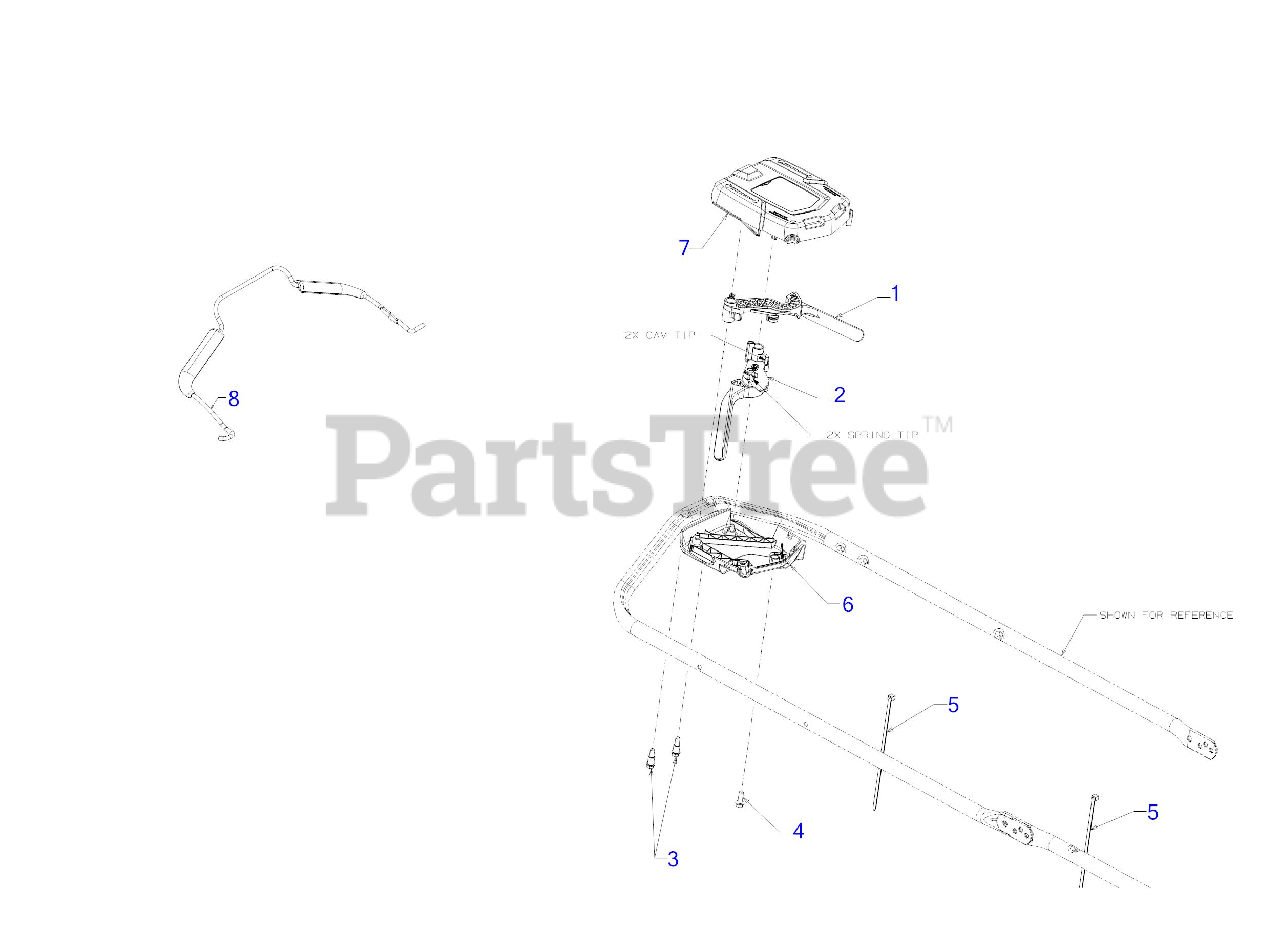

Control Bail Parts Diagram

  • Title
1

MTD 931-05465

CONTROL LEVER ASSEMBLY AWD LH RED

$27.99

$

Usually ships in 3-6 days

0

2

MTD 931-05466

AWD CONTROL LEVER ASSEMBLY (RH) (RED)

$27.99

$

Usually ships in 3-6 days

0

3

MTD 710-05204

SHOULDER SCREW 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

5

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-12360

LOWER CONTROL HOUSING

$20.99

$

In Stock, only 1 left!

0

7

MTD 731-12361

UPPER CONTROL HOUSING

$23.99

$

Usually ships in 3-6 days

0

8

MTD 631-05441

AWD BAIL ASSEMBLY

$56.99

$

Usually ships in 3-6 days

0
