247.378970 (12AVC1B8799) - Craftsman Walk-Behind Mower (2016) Rear Baffle & Deck Assembly Parts Diagram
Walk-Behind Mower

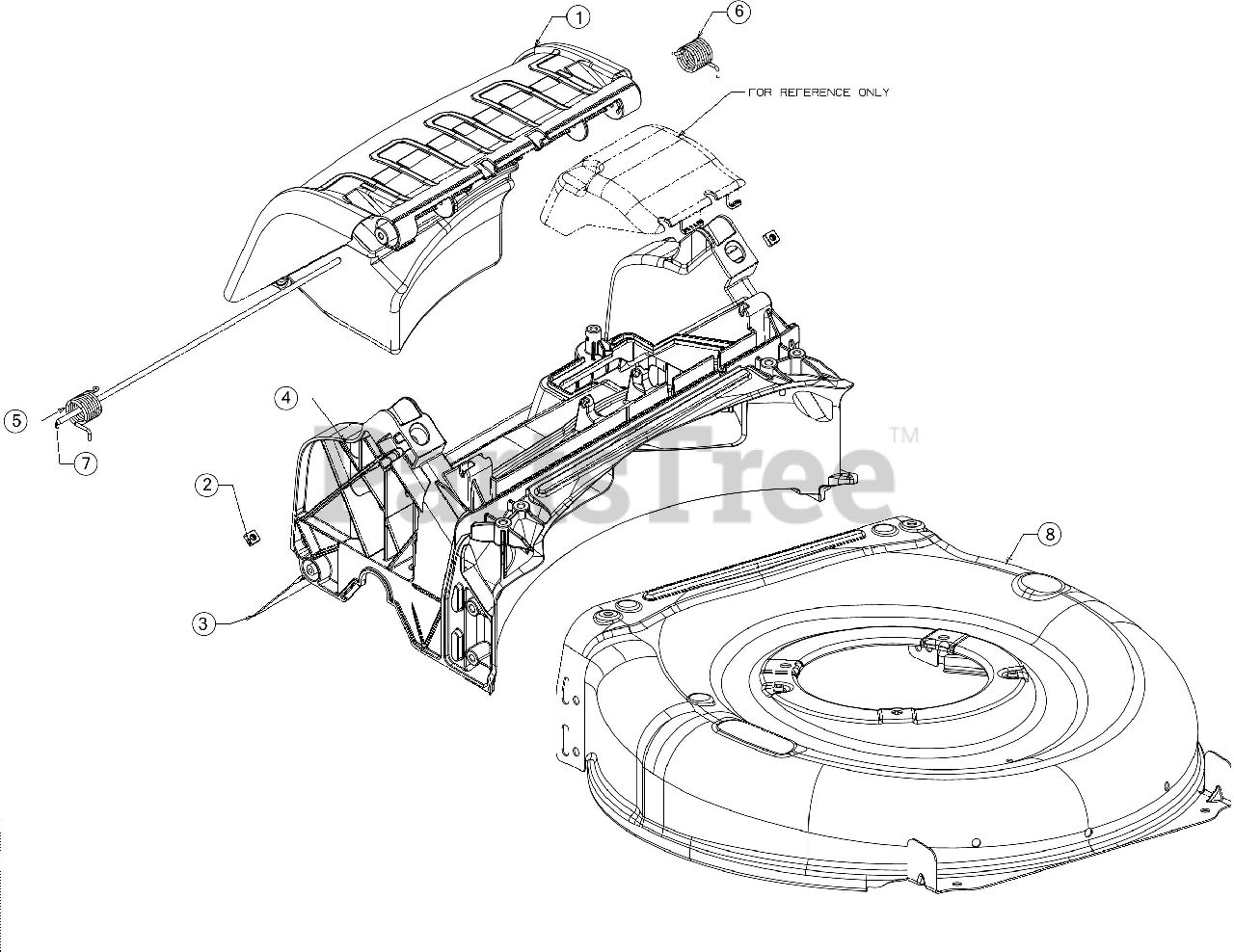

Rear Baffle & Deck Assembly Parts Diagram
1
N/A
N/A
Note: (Not Serviceable, Order Part Number 631-04553A)
$
$
Not available
MTD 712-04222
SQUARE NUT 1/4-20
$5.49
$
Usually ships in 3-6 days
MTD 731-07203
TRAILSHIELD
$10.99
$
In Stock, only 2 left!
4
N/A
N/A
Note: (Not Serviceable, Order Part Number 631-04553A)
$
$
Not available
$5.49
$
In Stock, only 1 left!
MTD 732-05062A
TORSION SPRING (LH)
$5.49
$
In Stock, only 1 left!
MTD 747-05183
REAR DOOR PIVOT ROD
$3.99
$
In Stock, Qty 10
MTD 787-03475-4044
21" DECK (2N1)
$114.99
$
Usually ships in 3-6 days
