247.378330 (12AKP38S799) - Craftsman Walk-Behind Mower (2018) Axles Parts Diagram

Walk-Behind Mower

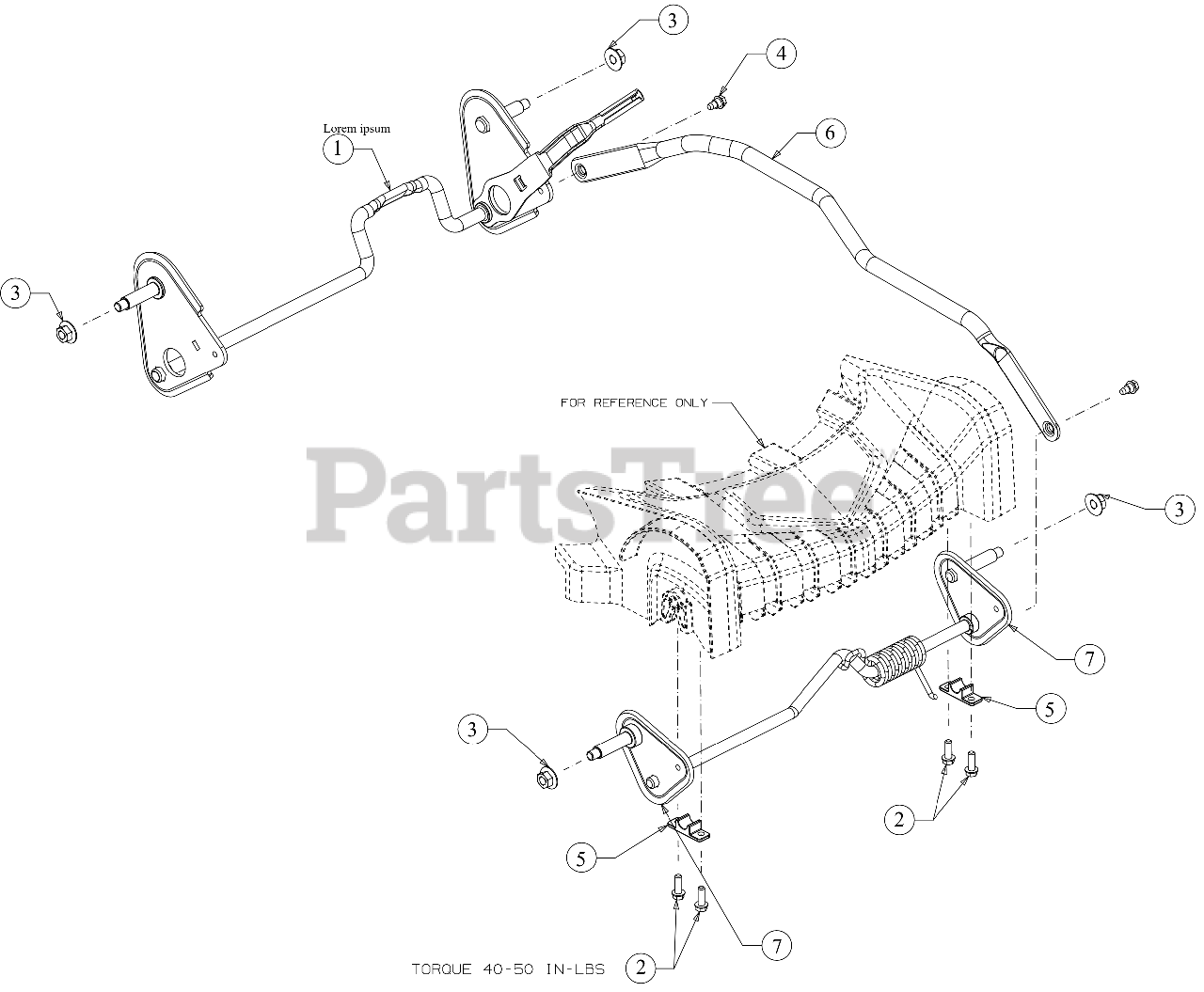

Axles Parts Diagram

  • Title
1

MTD 911-04192

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

2

MTD 710-0895

SCREW 1/4-15 X .750

$6.49

$

Usually ships in 3-6 days

0

3

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 12

0

4

MTD 738-04502

SHOULDER SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 15

0

5

MTD 741-0492A

BLOCK BUSHING

$6.49

$

In Stock, Qty 9

0

6

MTD 949-04840B

LINK TUBE

Variations

MTD 949-04840B-0637

Tube Link - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

7

MTD 911-04191B

FRONT AXLE ASSEMBLY

$54.99

$

In Stock, only 3 left!

0
