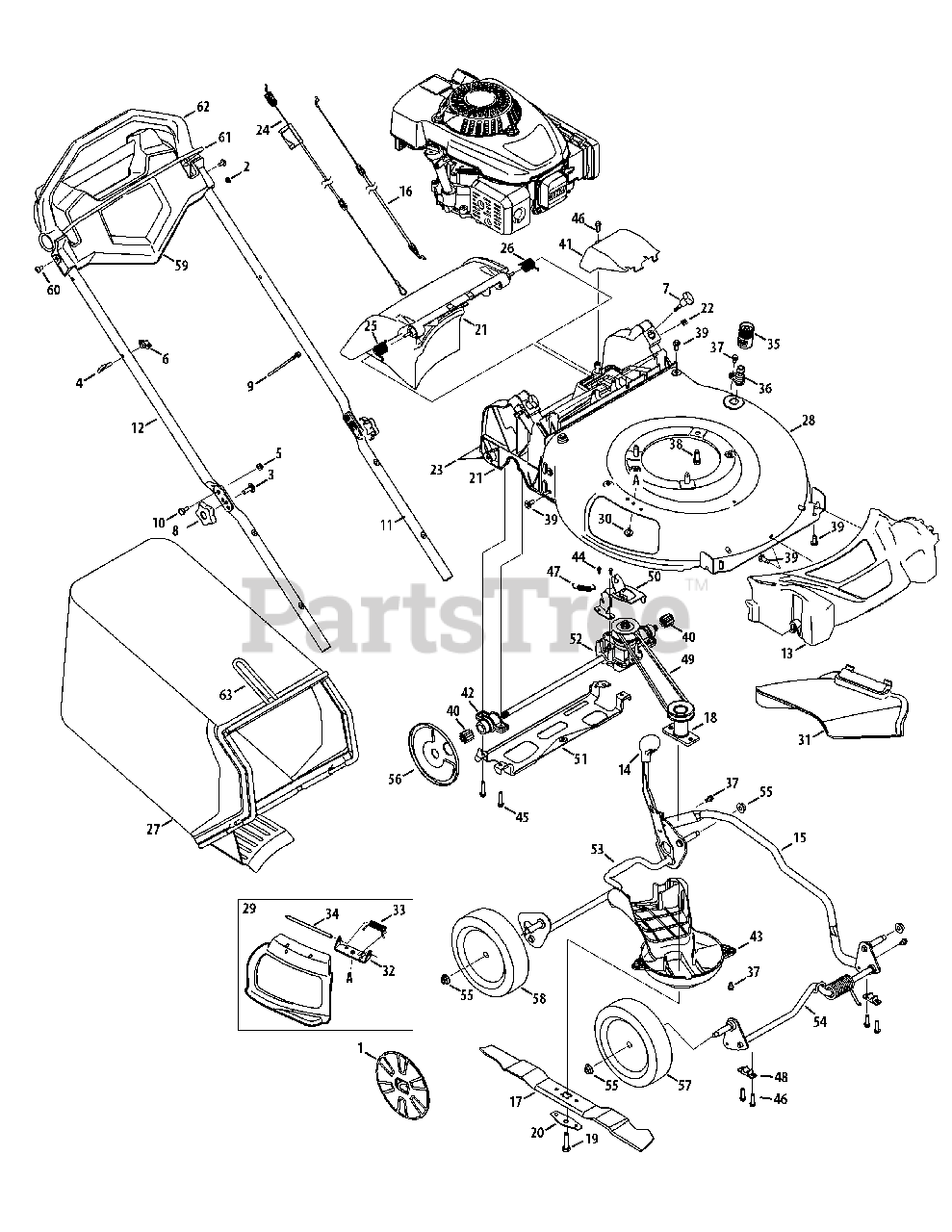

247.375900 (12ABC32J799) - Craftsman Walk-Behind Mower (2014) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 731-07173

Hubcap

$6.49

$

In Stock, only 4 left!

0

2

MTD 748-05047

Spacer

$5.99

$

Usually ships in 3-6 days

0

3

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, Qty 5

0

4

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-04123C

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, only 1 left!

0

8

MTD 720-05028

Star Knob

$4.49

$

Usually ships in 3-6 days

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 15

0

11

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 7

0

12

MTD 749-05084-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 731-10307

Front Cover

$42.99

$

Usually ships in 3-6 days

0

14

MTD 720-04113

Adjustment Knob

$10.99

$

In Stock, only 2 left!

0

15

MTD 949-04841C-0637

Tube, Link

$38.99

$

Usually ships in 3-6 days

0

16

MTD 946-05105

Control Cable
(Superseded to 946-05105A)

$42.99

$

In Stock, Qty 20+

0

17

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

18

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

19

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

20

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

21

MTD 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

22

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

23

MTD 731-07203

Trail Shield

$10.99

$

In Stock, only 2 left!

0

24

MTD 946-05121

Drive Cable
(Superseded to 946-05121A)

$27.99

$

In Stock, Qty 7

0

25

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

26

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

27

MTD 964-05024

Grass Bag

$63.99

$

Usually ships in 3-6 days

0

28

MTD 787-02002A-4044

21" Deck
(Superseded to 787-02002B-4044)

$143.99

$

Usually ships in 3-6 days

0

29

MTD 987-02516A

Mulch Plug (Incl. 32-34)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

30

MTD 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

31

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, Qty 5

0

32

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

33

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

34

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

35

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

36

MTD 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

37

MTD 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

38

MTD 710-04683A

Screw, tt, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

39

MTD 710-05425A

Screw, 5/16-14 x .750

$3.49

$

Usually ships in 3-6 days

0

40

MTD 917-04852

Spur Gear, 10T

$4.99

$

In Stock, only 2 left!

0

41

MTD 731-08175

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

42

MTD 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

43

MTD 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

44

MTD 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, Qty 12

0

45

MTD 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

46

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

47

MTD 732-05150A

Exten. Spring, 2.675

$4.49

$

In Stock, Qty 11

0

48

MTD 741-0492A

Bush., Block

$6.49

$

In Stock, Qty 9

0

49

MTD 954-04282

V-Belt

$28.99

$

In Stock, only 3 left!

0

50

MTD 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

51

MTD 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

52

MTD 918-06000

Transmission

$148.99

$

In Stock, only 2 left!

0

53

MTD 911-04189

Rear Hgt. Adjust./Axle Assembly
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

54

MTD 911-04190A

Front Axle Assembly
(Superseded to 911-04190B)

$48.99

$

Usually ships in 3-6 days

0

55

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

56

MTD 731-07795

Wheel Dust Cover
(Superseded to 731-07795A)

$4.49

$

In Stock, only 1 left!

0

57

MTD 634-04659

Front Wheel, 8 x2

$31.99

$

In Stock, Qty 5

0

58

MTD 934-05044

Rear Wheel, 8 x 2

$38.99

$

In Stock, only 1 left!

0

59

MTD 931-09891

Handle Console
(Superseded to 931-10685)

$27.99

$

In Stock, only 1 left!

0

60

MTD 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

61

MTD 747-06307-0637

Blade Control

$18.99

$

Usually ships in 3-6 days

0

62

MTD 731-09922

Premium Drive Control
(Superseded to 731-09922A)

$30.99

$

In Stock, only 1 left!

0

63

MTD 747-06137A-4044

Grass Catcher Frame

$47.99

$

In Stock, only 1 left!

0

MTD 952Z5X65RU

Engine (see breakdown)
(Superseded to 952Z5X65MUC)

Note: (Craftsman Model No. 5X65RU)

$

$

Not available
