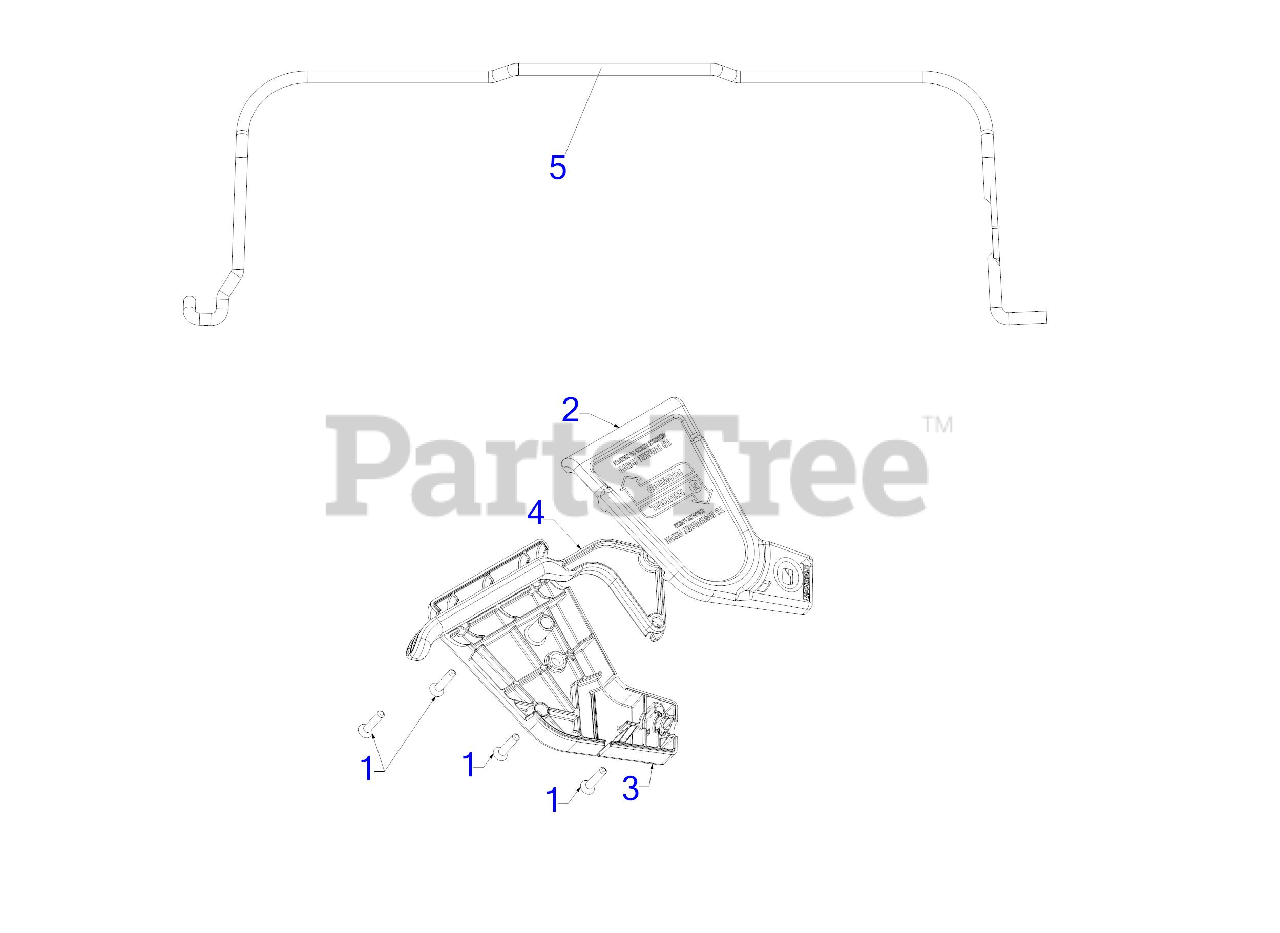

247.374411 (12BVB25V799) - Craftsman Walk-Behind Mower (2019) Control Bails Parts Diagram

Walk-Behind Mower

Control Bails Parts Diagram

  • Title

1

MTD 710-04793

SCREW #10-16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

2

MTD 753-06060A

KIT

$27.99

$

Usually ships in 3-6 days

0

3

MTD 731-07812

SQUEEZEBOX CONTROL COVER

$7.49

$

Usually ships in 3-6 days

0

4

MTD 731-09369

SELF PROPELLED LEVER

$8.49

$

Usually ships in 3-6 days

0

5

MTD 747-05209C

OPERATOR SQUEEZE BAIL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 747-05209C-0637

Operator Bail, Square - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0
