247.374301 (11A-B2BW799) - Craftsman Walk-Behind Mower (2014) General Assembly Parts Diagram

Walk-Behind Mower

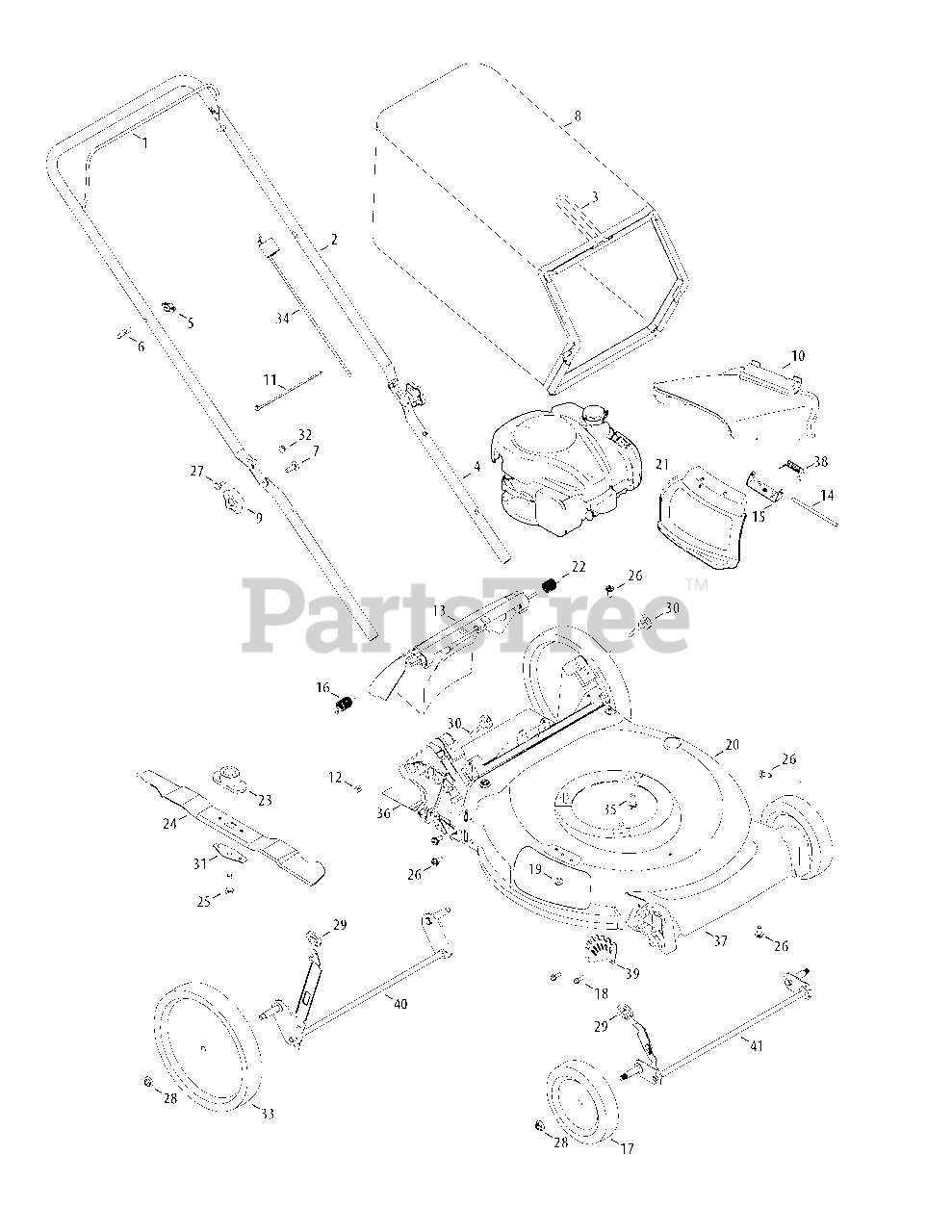

General Assembly Parts Diagram

  • Title

1

MTD 747-05184D

Blade Control

$7.49

$

In Stock, only 4 left!

0

2

MTD 749-04680B-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

3

MTD 747-05450

Grass Catcher Frame
(Superseded to 747-05450-4044)

Variations

MTD 747-05450-4044

Grass Bag Frame - CRAFTSMAN RED (4044)

$41.99

$

In Stock, only 3 left!

0

$41.99

$

In Stock, only 3 left!

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 7

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04998

Carriage Screw, 5/16-18

$5.99

$

In Stock, Qty 5

0

8

MTD 964-04154

Grass Bag
(Superseded to 964-04154B)

$38.99

$

In Stock, only 1 left!

0

9

MTD 720-04072A

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 731-07486

Side Chute

$16.99

$

In Stock, Qty 5

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

13

MTD 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

14

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

17

MTD 734-04562

Wheel, 7" x 1.8"

$24.99

$

In Stock, Qty 10

0

18

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

19

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

MTD 787-01869A-4043

Deck - 21"
(Superseded to 787-01869B-4043)

$143.99

$

Usually ships in 3-6 days

0

21

MTD 987-02516A

Hinged Mulch Plug Assembly
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

22

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

23

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

26

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 15

0

28

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

29

MTD 720-04130

Adjustment Lever Knob

$4.99

$

In Stock, only 1 left!

0

30

MTD 720-05066

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, only 1 left!

0

31

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

32

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 634-04625

Wheel, 11" x 1.75"

$43.99

$

In Stock, Qty 8

0

34

MTD 946-04661A

Control Cable

$13.99

$

In Stock, only 4 left!

0

35

MTD 710-04683A

TT Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

36

MTD 731-07203

Trail shield

$10.99

$

In Stock, only 2 left!

0

37

MTD 731-07078A

Front Cover
(Superseded to 753-08680)

$50.99

$

In Stock, only 3 left!

0

38

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

39

MTD 787-01818A-0637

Front Height Adjuster Plate

$10.99

$

In Stock, only 1 left!

0

40

MTD 911-04144B

Rear Axle Assembly
(Superseded to 611-04144B)

$36.99

$

Usually ships in 3-6 days

0

41

MTD 911-04143B

Front Axle Assembly
(Superseded to 611-04143B)

$30.99

$

In Stock, only 2 left!

0

Engine

Note: (B & S Model No. 09P602-0077-F1)(purchase locally)

$

$

Not available
