247.371081 (12A-948J099) - Craftsman Walk-Behind Mower (2011) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

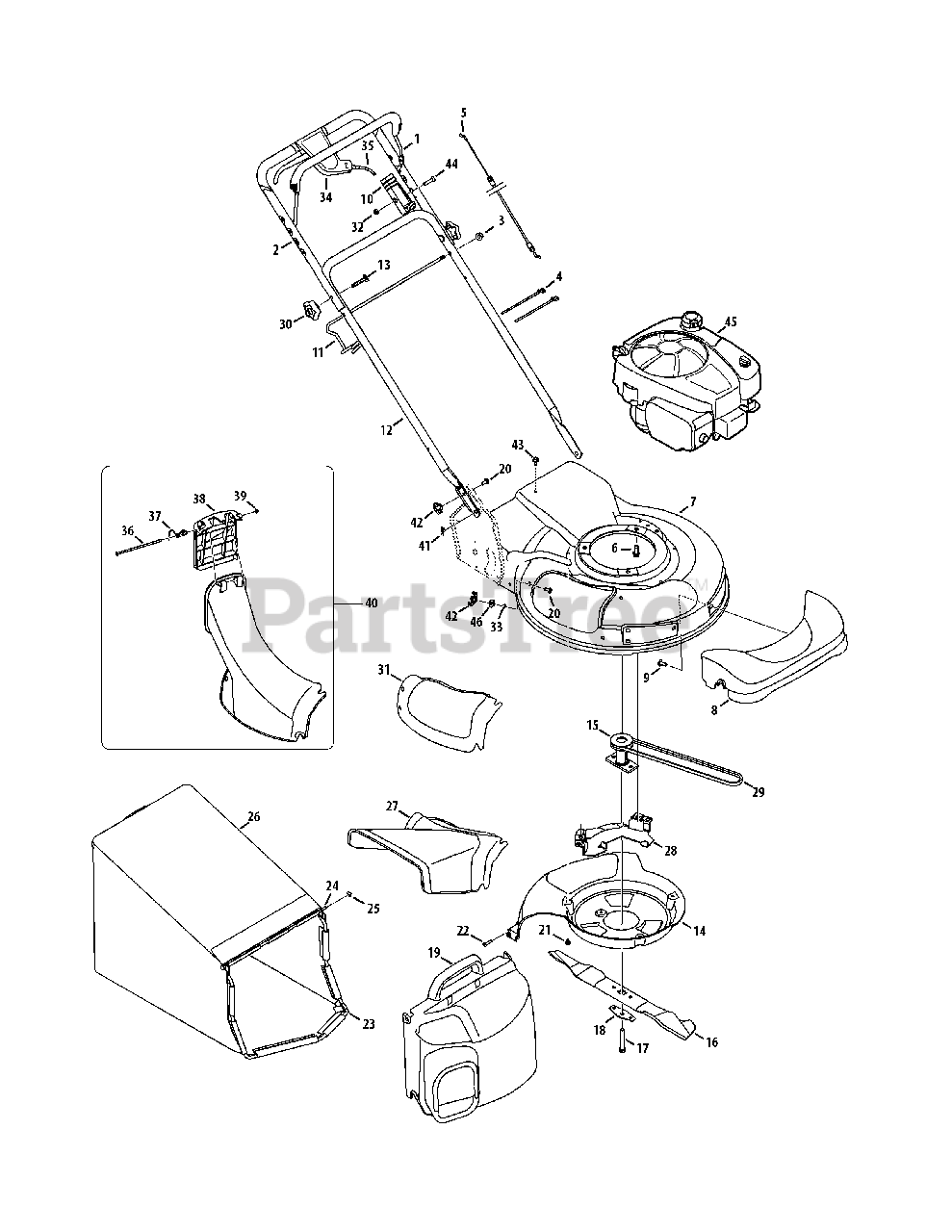

General Assembly Parts Diagram

  • Title

1

MTD 647-0004A

Blade Control
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

3

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

MTD 946-0557

Control Cable

$26.99

$

In Stock, only 1 left!

0

6

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

MTD 787-01948-4028

21-inch Deck

$

$

Not available

8

MTD 731-1836

Front Axle Cover

$

$

Not available

9

MTD 710-1242

HL Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

10

MTD 746-0883

Housing

$16.99

$

In Stock, only 3 left!

0

11

MTD 747-0940A-0637

Grass Bag Support Rod

$26.99

$

Usually ships in 3-6 days

0

12

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

13

MTD 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

14

MTD 931-04564

Rear Baffle
(Superseded to 931-04564A)

$49.99

$

In Stock, Qty 5

0

15

MTD 987-02221

Blade Adapter

$42.99

$

In Stock, only 4 left!

0

16

MTD 942-0741A

21-inch Mulching Blade

$29.99

$

In Stock, Qty 20+

0

17

MTD 710-1257

HH Cap Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

18

MTD 736-0524B

Bell Blade Spacer
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

19

MTD 631-0071

Grass Bag Cover Assembly

$103.99

$

Usually ships in 3-6 days

0

20

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0653

TT Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

22

MTD 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

23

MTD 747-0937-0637

Grass Bag Frame

$58.99

$

Usually ships in 3-6 days

0

24

MTD 747-0939

Grass Bag Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

25

MTD 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

26

MTD 964-04093A

Grass Bag Assembly

$98.99

$

Usually ships in 3-6 days

0

27

MTD 731-1832

Side Discharge Chute

$

$

Not available

28

MTD 782-9063A-0637

Belt Keeper
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

29

MTD 954-0460

V-Belt

$19.99

$

In Stock, Qty 20+

0

30

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

31

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 2 left!

0

32

MTD 712-0324

Hexlk Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

33

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

34

MTD 753-06060

Drive Control Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

35

MTD 946-0711B

Drive Cable

$32.99

$

In Stock, only 1 left!

0

36

MTD 747-0965

Chute Door Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

37

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

38

MTD 731-1874A

Top Discharge Door Chute

$17.99

$

Usually ships in 3-6 days

0

39

MTD 726-0111

Push Cap

$

$

Not available

40

MTD 931-0066

Top Discharge Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

41

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

42

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

43

MTD 710-0607

TT Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

44

MTD 710-1270

Screw, 1/4-20 x 1.310

$4.49

$

Usually ships in 3-6 days

0

45

N/A

Engine - 11P902-0881-B1

Note: Purchase locally

$

$

Not available

46

MTD 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0
