247.370480 (18A-188-799) - Craftsman Walk-Behind Mower, Electric (2010) (Sears) General Assembly Parts Diagram

Walk-Behind Mower, Electric

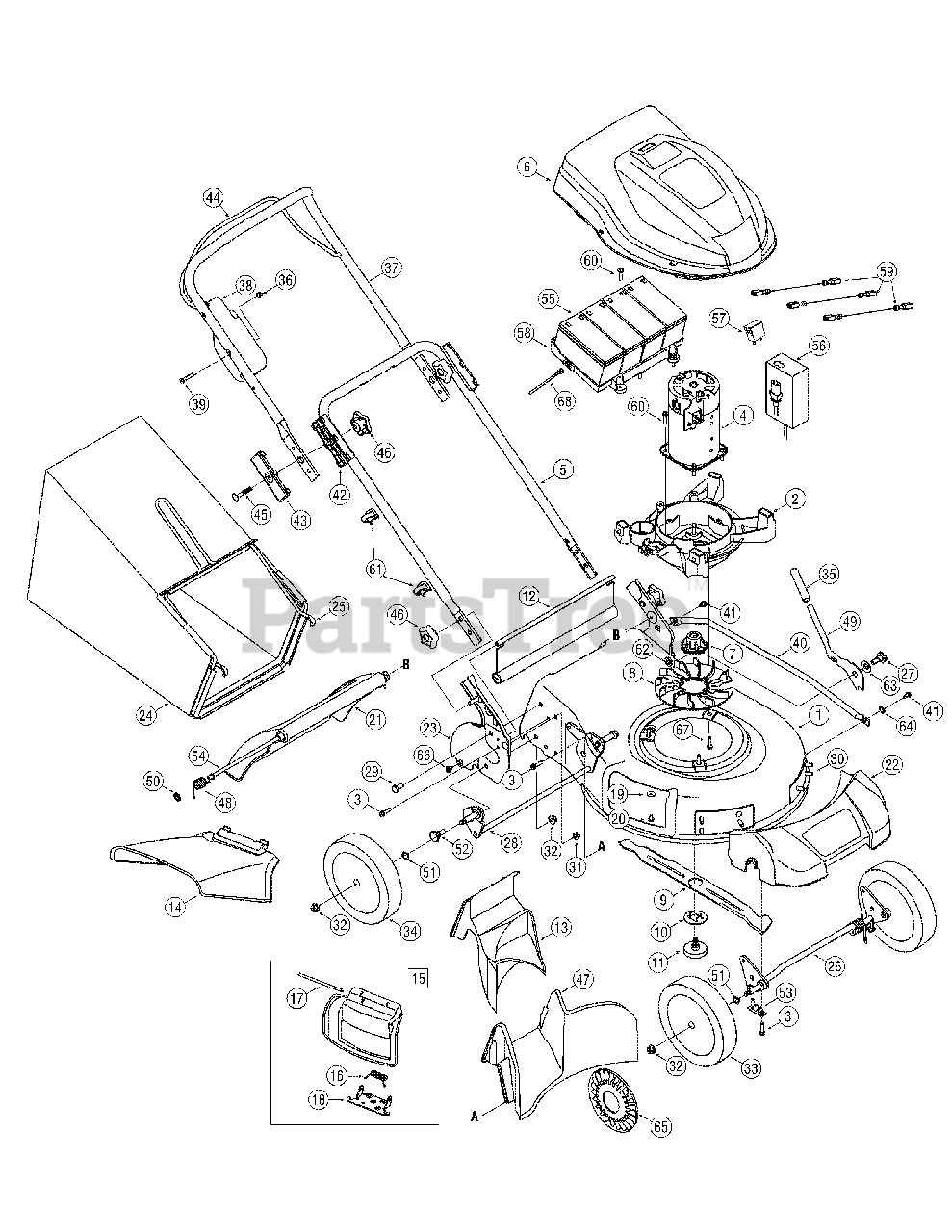

General Assembly Parts Diagram

  • Title

1

MTD 787-01649-4044

19" Deck

$

$

Not available

2

MTD 731-05727

Motor Bracket

$49.99

$

Usually ships in 3-6 days

0

3

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 18

0

4

MTD 724-04025P

Motor, 48V

$460.99

$

Usually ships in 3-6 days

0

5

MTD 749-04312

Lower Handle

Variations

MTD 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

$50.99

$

In Stock, only 4 left!

0

6

MTD 731-05753

Battery Shroud

$

$

Not available

7

MTD 631-04228

Blade Hub

$24.99

$

Usually ships in 3-6 days

0

8

MTD 731-05832

Electric Fan

$13.99

$

Usually ships in 3-6 days

0

9

MTD 942-04152

Mulching Blade

$34.99

$

Usually ships in 3-6 days

0

10

MTD 782-7051

Blade Locking Plate

$11.99

$

In Stock, only 1 left!

0

11

MTD 624-0078

Blade Bolt Assembly

$28.99

$

In Stock, only 1 left!

0

12

MTD 731-05639A

Trail Shield

$19.99

$

In Stock, only 4 left!

0

13

MTD 731-05746

Rear Mulch Plug

$

$

Not available

14

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

MTD 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 10

0

16

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

MTD 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

MTD 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

MTD 931-05634

Front Cover

$67.99

$

Usually ships in 3-6 days

0

23

MTD 687-02325-0637

Handle Bracket - RH

$31.99

$

In Stock, only 1 left!

0

23

MTD 687-02324-0637

Handle Bracket - LH

$34.99

$

In Stock, only 1 left!

0

24

MTD 964-04076

Grass Bag

$

$

Not available

25

MTD 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

26

MTD 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

27

MTD 938-0148

Screw, Shoulder, .50 x .66

$16.99

$

Usually ships in 3-6 days

0

28

MTD 687-02228-0637

Rear Bracket Assembly

$40.99

$

Usually ships in 3-6 days

0

29

MTD 710-3025

Hhcs, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

MTD 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 5

0

32

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-04176A

Front Wheel

$46.99

$

Usually ships in 3-6 days

0

34

MTD 734-2004B

Rear Wheel
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

35

MTD 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

36

MTD 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

37

MTD 749-04353

Upper Handle

$

$

Not available

38

MTD 925-04037A

Motor/Blade Control

$

$

Not available

39

MTD 753-04430

Screw, Flat, 1/4-20 x 1.75

$3.99

$

Usually ships in 3-6 days

0

40

MTD 749-04356-0637

Cross Bracket

$

$

Not available

41

MTD 738-04278

Screw, Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

42

MTD 731-05186

Lower Handle Insulator

$10.99

$

In Stock, only 1 left!

0

43

MTD 731-05178

Upper Handle Insulator

$4.49

$

In Stock, only 1 left!

0

44

MTD 747-04663A

Motor/Blade Control Handle

$22.99

$

Usually ships in 3-6 days

0

45

MTD 710-0572

Bolt Carriage, 5/16-18 x 2.50

$4.49

$

In Stock, Qty 20+

0

46

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

MTD 731-05710A

Rear Baffle

$33.99

$

Usually ships in 3-6 days

0

48

MTD 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

MTD 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

MTD 732-04377C

Spring Lever

$

$

Not available

50

MTD 726-0201

Nut, Speed

$6.99

$

In Stock, only 2 left!

0

51

MTD 936-0504

Washer, Wave, .510 x .750 x .017

$4.49

$

In Stock, Qty 9

0

52

MTD 938-0507B

Screw, Shoulder, .500 Dia. X .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

53

MTD 741-0492A

Bushing, Block, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

MTD 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

MTD 925-04381A

Battery, 12V

$364.99

$

Usually ships in 3-6 days

0

56

MTD 725-04387A

Battery Charger

$189.99

$

Usually ships in 3-6 days

0

57

MTD 725-04438

Battery Level Indicator

$51.99

$

Usually ships in 3-6 days

0

58

MTD 731-05754

Battery Tray

$

$

Not available

59

MTD 725-04497A

Battery Jumper

$

$

Not available

60

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

61

MTD 731-2422

Cable Guide

$15.99

$

Usually ships in 3-6 days

0

62

MTD 731-05880

Spacer, .515 x 1.00 x .310 Lg.

$3.49

$

Usually ships in 3-6 days

0

63

MTD 936-0255

Washer, Bell, .510 x 1.14 x .040
(Superseded to 736-0255)

$

$

Not available

64

MTD 736-04413

Washer, Wave, .385 x .598

$3.99

$

In Stock, Qty 5

0

65

MTD 731-07532

Hubcap

$4.99

$

Usually ships in 3-6 days

0

66

MTD 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

67

MTD 710-0726

Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

68

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

MTD 731-06089

Key

Note: Not Shown

$6.99

$

Usually ships in 3-6 days

0

MTD 725-04763

Fuse

Note: Not Shown

$7.49

$

In Stock, only 1 left!

0

MTD 725-04539

Circuit Breaker

Note: Not Shown

$

$

Not available
