247.370350 (11A-597F799) - Craftsman Walk-Behind Mower (1997) (Sears) Handle Assembly II Parts Diagram

Walk-Behind Mower

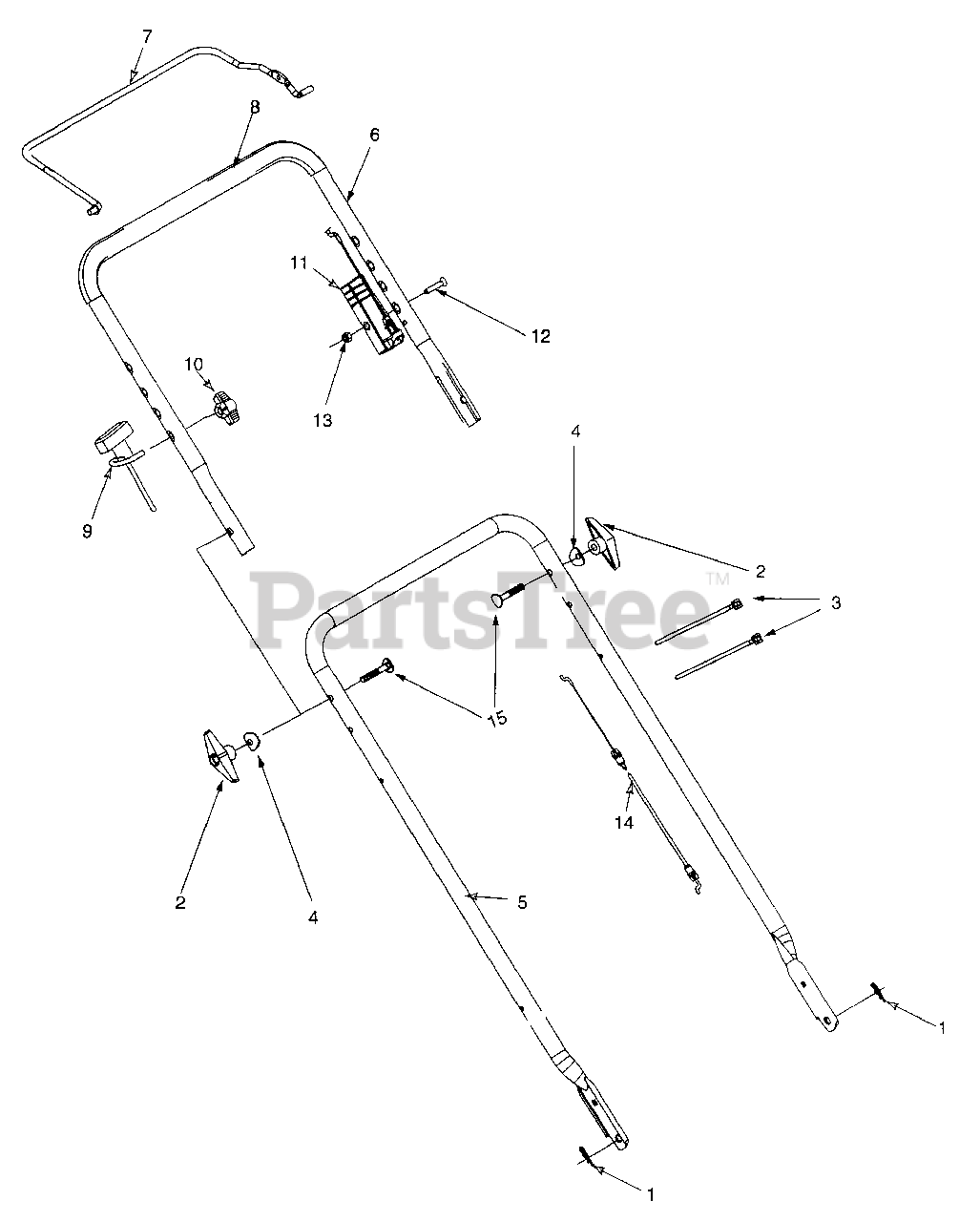

Handle Assembly II Parts Diagram

  • Title

1

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

2

MTD 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

3

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

4

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

5

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

6

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

7

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

8

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

9

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

10

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

11

MTD 746-0883

Control Cable Box

$16.99

$

In Stock, only 3 left!

0

12

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

13

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

14

MTD 746-0922

Control Cable
(Superseded to 946-0922)

$31.99

$

Usually ships in 3-6 days

0

15

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0
