247.370330 (12A-967K099) - Craftsman Walk-Behind Mower (1997) (Sears) Handle Assembly Parts Diagram

Walk-Behind Mower

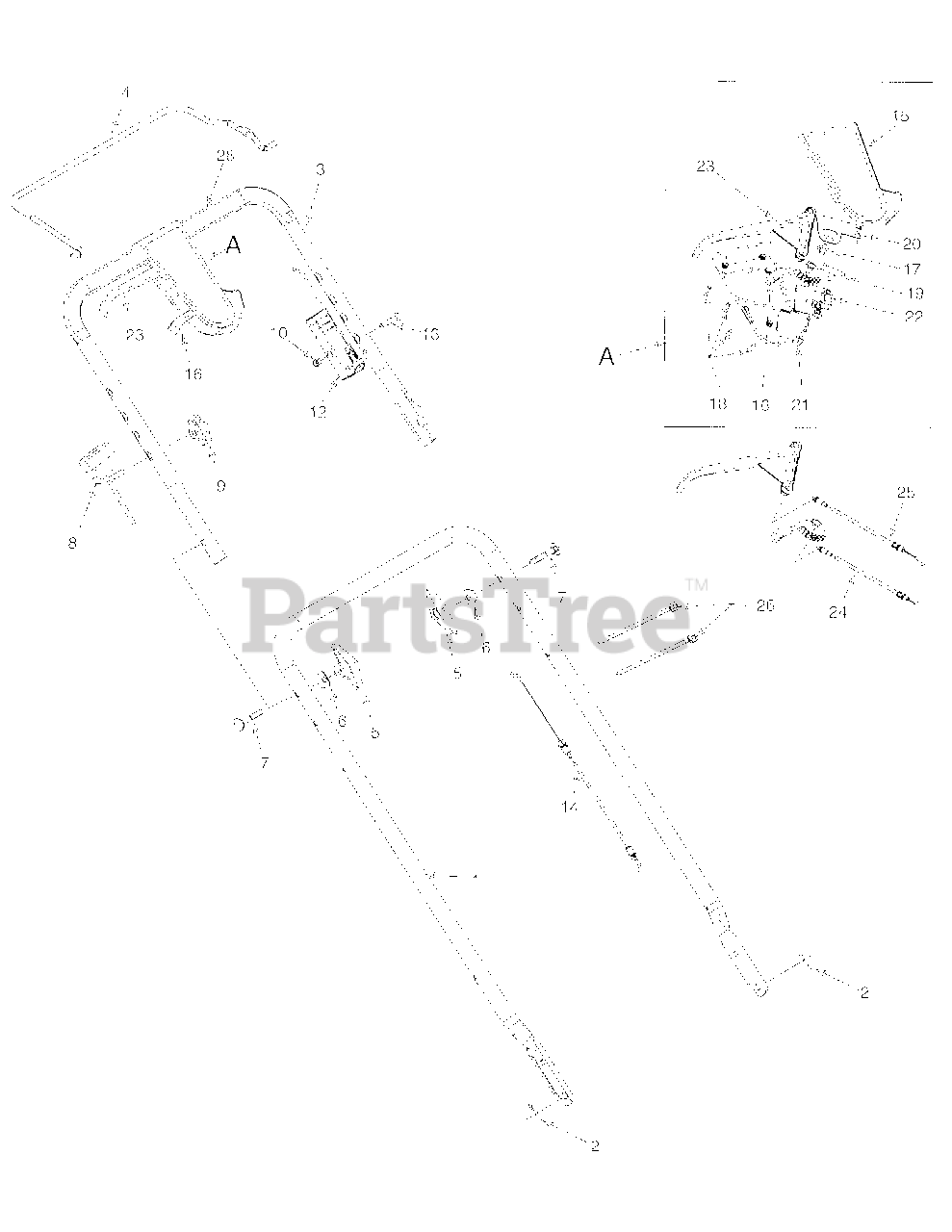

Handle Assembly Parts Diagram

  • Title
1

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

2

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

3

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

4

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

5

MTD 720-0241

Handle Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

6

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

7

MTD 710-1174

Carriage Screw

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

9

MTD 720-0279

Wiong Nut

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

12

MTD 746-0883

Control Cable Box

$16.99

$

In Stock, only 3 left!

0

13

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

14

MTD 746-0922

Control Cable 60 inch
(Superseded to 946-0922)

$31.99

$

Usually ships in 3-6 days

0

15

MTD 731-0904

Six-Spd. Control Hsg., Upper
(Superseded to 753-0717)

$

$

Not available

16

MTD 731-0924

Shift Lever

$

$

Not available

17

MTD 713-0397

Rack Gear Insert, 3T
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

18

MTD 710-0841

C-Sunk Screw AB 10-12 x .75 thd.

$4.49

$

Usually ships in 3-6 days

0

19

MTD 732-0627

Six-Spd. Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

20

MTD 16864

Six-Spd. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

21

MTD 731-0905

Six-Spd. Control Hsg., Lower
(Superseded to 753-0717)

$

$

Not available

22

MTD 731-0906

Six-Spd. Cable Mtg. Cap
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0620

Control Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

24

MTD 746-0939

Six-Spd. Cable 53 inch
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

25

MTD 746-0710A

Self-Propelled Adj. Cable 48 inch
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

26

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

28

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0
