247.370330 (12A-967K099) - Craftsman Walk-Behind Mower (1997) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

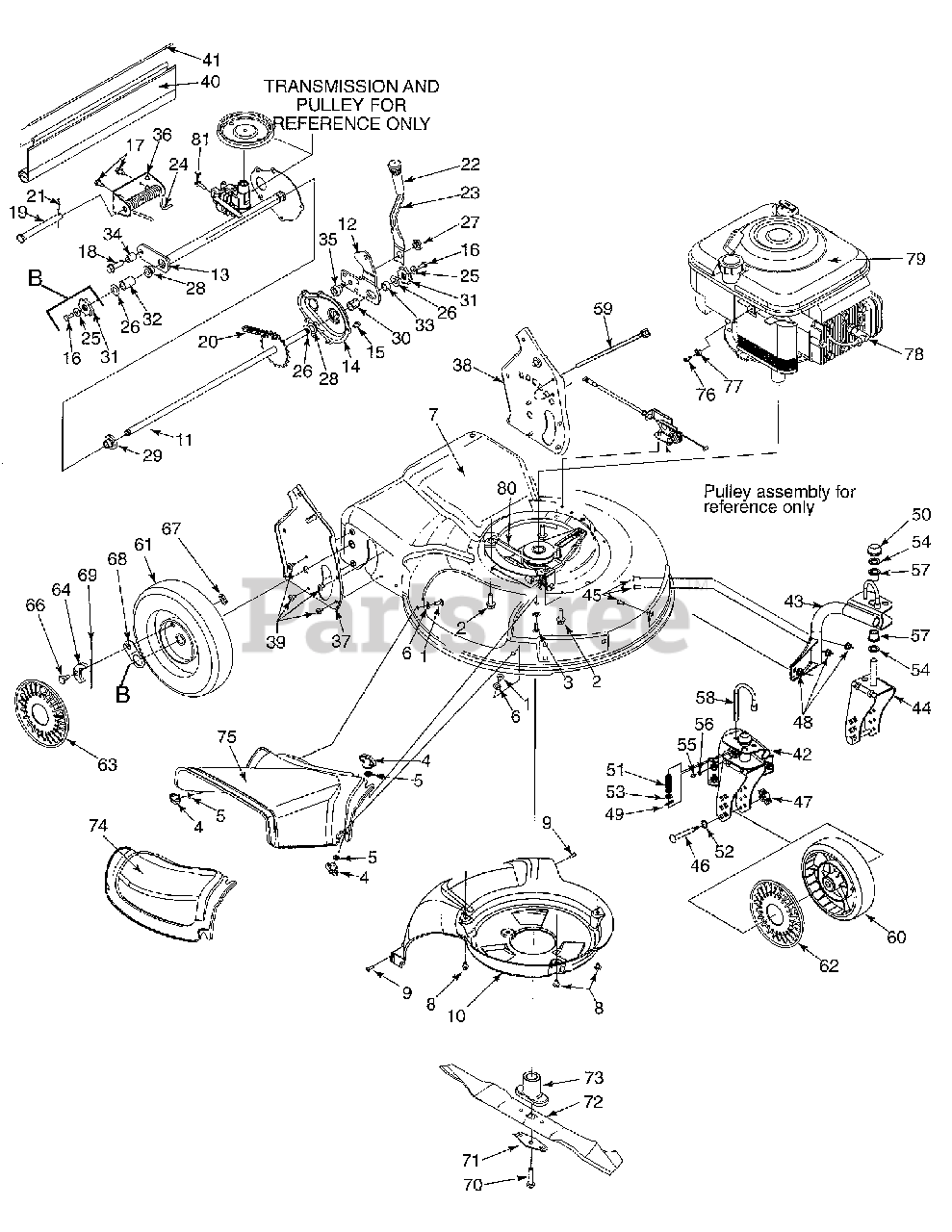

General Assembly Parts Diagram

  • Title

1

MTD 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0654A

Screw TT 3/8-18:1.00

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0703

Carrriage Bolt 1/4-20 x .750

$4.49

$

In Stock, Qty 15

0

4

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

MTD 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

6

MTD 736-0204

Flat Washer .334 I.D. x .62 O.D. x .03

$4.49

$

In Stock, Qty 8

0

7

MTD 782-0078

Deck 21 inch
(Superseded to 782-0078B)

Variations

MTD 782-0078-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

$

$

8

MTD 710-0653

Hex Crew 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

9

MTD 710-1220

Screw HL 1/2-14 x .750

$4.99

$

In Stock, only 4 left!

0

10

MTD 731-1828

Rear Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

11

MTD 638-0012

Rear Axle Ass'y.
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

MTD 782-0566

Rivot Arm, Rear
(Superseded to 782-0566B-0637)

$44.99

$

In Stock, only 1 left!

0

13

MTD 682-7526

Trans. Axle Ass'y.
(Superseded to 682-7526-0637)

Variations

MTD 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

MTD 682-7528

Chain Cover
(Superseded to 682-7528-0637)

Variations

MTD 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 710-0653

Hex Scre. TT 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

16

MTD 710-0751

Hex Screw 1/4-20 x .620 Gr.5

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0896

Hex Screw AB 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-1315

Hex Screw 3/16 x 1.25

$4.49

$

In Stock, only 3 left!

0

19

MTD 711-0835

Clevis Pin
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

20

MTD 713-0453

Chain: Endls #48
(Superseded to 913-0453)

$12.99

$

Usually ships in 3-6 days

0

21

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 14

0

22

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

23

MTD 732-0803

Spring Lever
(Superseded to 732-0803A)

$15.99

$

In Stock, Qty 16

0

24

MTD 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0369

Flat Washer

$4.49

$

In Stock, Qty 8

0

27

MTD 738-0529

Shoulder Nut .625 dis x .165
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

MTD 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

MTD 741-0522

Flange Bearing

$

$

Not available

30

MTD 741-0978

Slev. Bearing

$4.99

$

In Stock, only 3 left!

0

31

MTD 748-0318

Ratchet Wheel
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

32

MTD 750-0151

Spacer
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

MTD 750-0515

Spacer

$4.49

$

In Stock, only 4 left!

0

34

MTD 750-0807

Spacer

$6.49

$

Usually ships in 3-6 days

0

35

MTD 750-1056

Shoulder Spacer
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

MTD 782-0568

Spring Bracket, Lift Assembly
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 682-3052

Handle Bracket RH

Variations

MTD 682-3052-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3052-0637

Handle Bracket Assembly - RH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3052-0716

No Longer Available BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3052-0650

No Longer Available BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

MTD 682-3052-0662

Handle Brkt. Ass'y. R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

38

MTD 682-3053

Handle Bracket LH

Variations

MTD 682-3053-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3053-0637

Handle Bracket Assembly - LH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3053-0650

No Longer Available BRACKET HA - RED METALLIC (0650)

$

$

Not available

MTD 682-3053-0716

No Longer Available BRACKET HA - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3053-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3053-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3053-0665

Handle Brkt. Ass'y. L.H. - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3053-0689

No Longer Available BRACKET HA - POLO GREEN (0689)

$

$

Not available

MTD 682-3053-4015

No Longer Available BRACKET HA - FIRE RED (4015)

$

$

Not available

$

$

39

MTD 710-1348

Torx Screw AB

$6.99

$

In Stock, only 3 left!

0

40

MTD 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

MTD 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

42

MTD 682-9020

Caster Ass'y. RH
(Superseded to 682-9020A)

Variations

MTD 682-9020-0498

CASTER ASSEMBLY (RH)(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-9020-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9020-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9020-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

43

MTD 682-9021

Caster Ass'y. LH
(Superseded to 682-9021A)

Variations

MTD 682-9021-0498

CASTER ASSEMBLY (LH)(CUB YELLOW) - OLD CUB YELLOW (0498)

$125.99

$

Usually ships in 3-6 days

0

MTD 682-9021-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9021-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

44

MTD 682-9024

Caster Bracket Ass'y.

Variations

MTD 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

MTD 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0691

BRACKET CASTER - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0716

Caster Bracket, RH - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

MTD 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0637

BRACKET CASTER - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

45

MTD 710-0260

Carriage Bolt 5/16-18 Gr.5
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 711-1146

Axle, Caster
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

47

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

48

MTD 712-3004A

Lock Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

49

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

50

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

51

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

52

MTD 736-0232

Wave Washer

$4.99

$

In Stock, Qty 12

0

53

MTD 736-0264

Flat Washer .330 I.D. x .630 x .06

$6.99

$

In Stock, only 1 left!

0

54

MTD 736-0366

Flat Washer 5/8 I.D. x 1.0 O.D.

$4.49

$

In Stock, only 2 left!

0

55

MTD 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

56

MTD 736-0931

Flat Washer .203 I.D. c .403 O.D.

$4.99

$

In Stock, only 1 left!

0

57

MTD 741-0685

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

58

MTD 747-0924

Front Wheel Lock Pin

$20.99

$

In Stock, only 1 left!

0

59

MTD 725-0157

Cabel Tie

$3.99

$

In Stock, only 2 left!

0

60

MTD 734-1849

Caster Wheel 7 x 2
(Superseded to 734-1857)

$46.99

$

In Stock, Qty 7

0

61

MTD 734-1850

Wheel Ass'y. Rear 9 x 2
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

62

MTD 731-1887

Hub Cap

$11.99

$

Usually ships in 3-6 days

0

63

MTD 731-0981A

Hub Cap Radial
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

64

MTD 748-0381

Pawl RH

$11.99

$

In Stock, only 1 left!

0

65

MTD 748-0188B

Pawl LH
(Superseded to 948-0188B)

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

66

MTD 738-0137A

Shoulder Screw

$10.99

$

In Stock, Qty 10

0

67

MTD 712-0414

Weld Nut

$4.49

$

In Stock, only 4 left!

0

68

MTD 16844

Ratchet Pawl Plate

$

$

Currently unavailable

69

MTD 10622B

Ratchet Spring

$5.49

$

In Stock, Qty 20+

0

70

MTD 710-1257

Hex Bolt

$7.99

$

In Stock, only 2 left!

0

71

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

72

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

73

MTD 748-0377B

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

74

MTD 731-1833

Mulching Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

75

MTD 731-1237

Side Discharge Chute

$

$

Currently unavailable

76

MTD 710-1237

Hex Scr. Slt.Wash. .620

$4.49

$

Usually ships in 3-6 days

0

77

MTD 751B213146

Casing Clamp, Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

78

Spark Plug (Champion)

Note: J-19LM

$

$

Not available

79

Engine

Note: Purchase locally

$

$

Not available

80

MTD 754-0460

Drive Belt
(Superseded to 954-0460)

$19.99

$

Usually ships in 3-6 days

0

81

MTD 710-0604

Hex Screw 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0
