247.370280 (184-107-099) - Craftsman Walk-Behind Mower, Electric (1994) (Sears) General Assembly Parts Diagram

Walk-Behind Mower, Electric

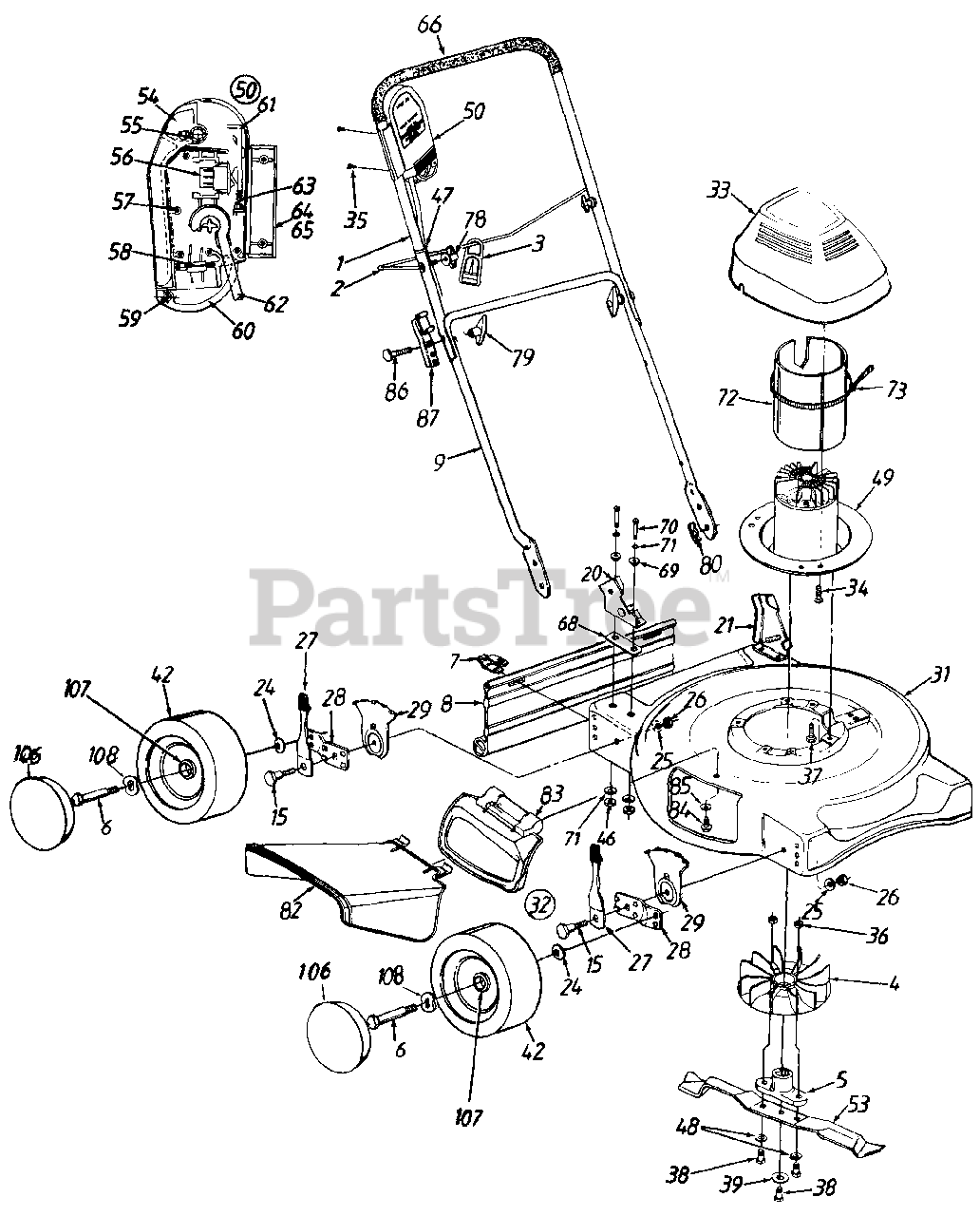

General Assembly Parts Diagram

  • Title

1

MTD 749-0884

Upper Handle

$

$

Not available

2

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

MTD 725-1590

Strain Relief - Cord

$

$

Not available

4

MTD 731-1270

Fan

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

7

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

MTD 731-1447

Rear Flap

$

$

Not available

9

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

15

MTD 738-0507B

Shld. Bolt .5" Dia. x .434"

$4.49

$

In Stock, only 4 left!

0

20

MTD 682-3012A

Handle Brkt. Ass'y. - R.H.

$

$

Currently unavailable

21

MTD 682-3011A

Handle Brkt. Ass'y. - L.H.

$

$

Currently unavailable

?22

MTD 710-1017

Torx . Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

24

MTD 736-0105

Bell-Wash .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0356

Bell-Wash .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

27

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

31

MTD 682-0016

20" Deck Ass'y.

$

$

Currently unavailable

32

MTD 14578

Height Adj. Ass'y. Comp.- R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.F. & R.R.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1269

Motor Cover (Yellow)

$

$

Not available

MTD 731-1264

Motor Cover (Red)

$

$

Not available

34

MTD 710-1128

Scr. #10-16 x .75" Lg.

$

$

Not available

35

MTD 710-1150

Self-Tap Scr. #7 x 1" Lg.

$

$

Not available

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 710-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

39

MTD 736-0452

Bell-Wash.396" I.D. x 1.14" 0.D.

$4.99

$

In Stock, Qty 7

0

42

MTD 734-1781

Wheel Ass'y. Comp. (Gray Rim)

$32.99

$

In Stock, Qty 7

0

MTD 73??790

Wheel Ass'y. Comp. (Yellow Rim)

$

$

Currently unavailable

46

MTD 712-0324

Hex Top L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

47

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 818-60013

Motor, Cord & Switch Ass'y.

$

$

Not available

50

MTD 624-0032

Cord & Switch Ass'y. Comp.

Note: (See Breakdown)

$

$

Not available

53

MTD 742-0720

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

54

MTD 731-1210

Handle - Switch Actuator

$

$

Not available

55

MTD 732-0679

Spring - Switch Handle

$

$

Not available

56

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

57

MTD 710-1147

Screw #6-32 x .5" Lg.

$

$

Not available

58

MTD 729-0304

Plug Ass'y.
(Superseded to 929-0304)

$

$

Not available

59

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

60

MTD 731-1211

Retainer Plug

$

$

Not available

61

MTD 731-1198

Latch

$

$

Not available

62

MTD 624-0053

Cord Ass'y.

Note: (Incl. Ref. #58)

$

$

Not available

63

MTD 732-0681

Spring Latch

$

$

Not available

64

MTD 731-1208

Housing - Upper Half

$

$

Not available

65

MTD 731-1209

Housing - Lower Half

Note: (Not Shown)

$

$

Not available

66

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

68

MTD 721-0309

Insulator Strip

$

$

Not available

69

MTD 731-1219

Insulator Shield

$

$

Not available

70

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, Qty 14

0

71

MTD 736-3090

Fl-Wash .26" I.D. x .72" O.D.

$6.99

$

In Stock, only 1 left!

0

72

MTD 721-0311

Insulator

$

$

Not available

73

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

?77

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

78

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

79

MTD 720-0241

Wing Nut Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

80

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

82

MTD 731-1407

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

83

MTD 682-7000

Mulching Plug Ass'y.

$

$

Not available

84

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

85

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

86

MTD 710-1174

Carr. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

87

MTD 782-7007

Handle Bracket
(Superseded to 982-7007)

$

$

Not available

106

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

107

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

Note: (Used w/734-1790 Wheel)

$7.49

$

In Stock, only 1 left!

0

108

MTD 736-0504

Wave Wash.
(Superseded to 936-0504)

Note: (Used w/Ref. 107)

$4.49

$

In Stock, Qty 10

0
