247.370253 (18A-407-099) - Craftsman Walk-Behind Mower, Electric (1998) (Sears) General Assembly Parts Diagram

Walk-Behind Mower, Electric

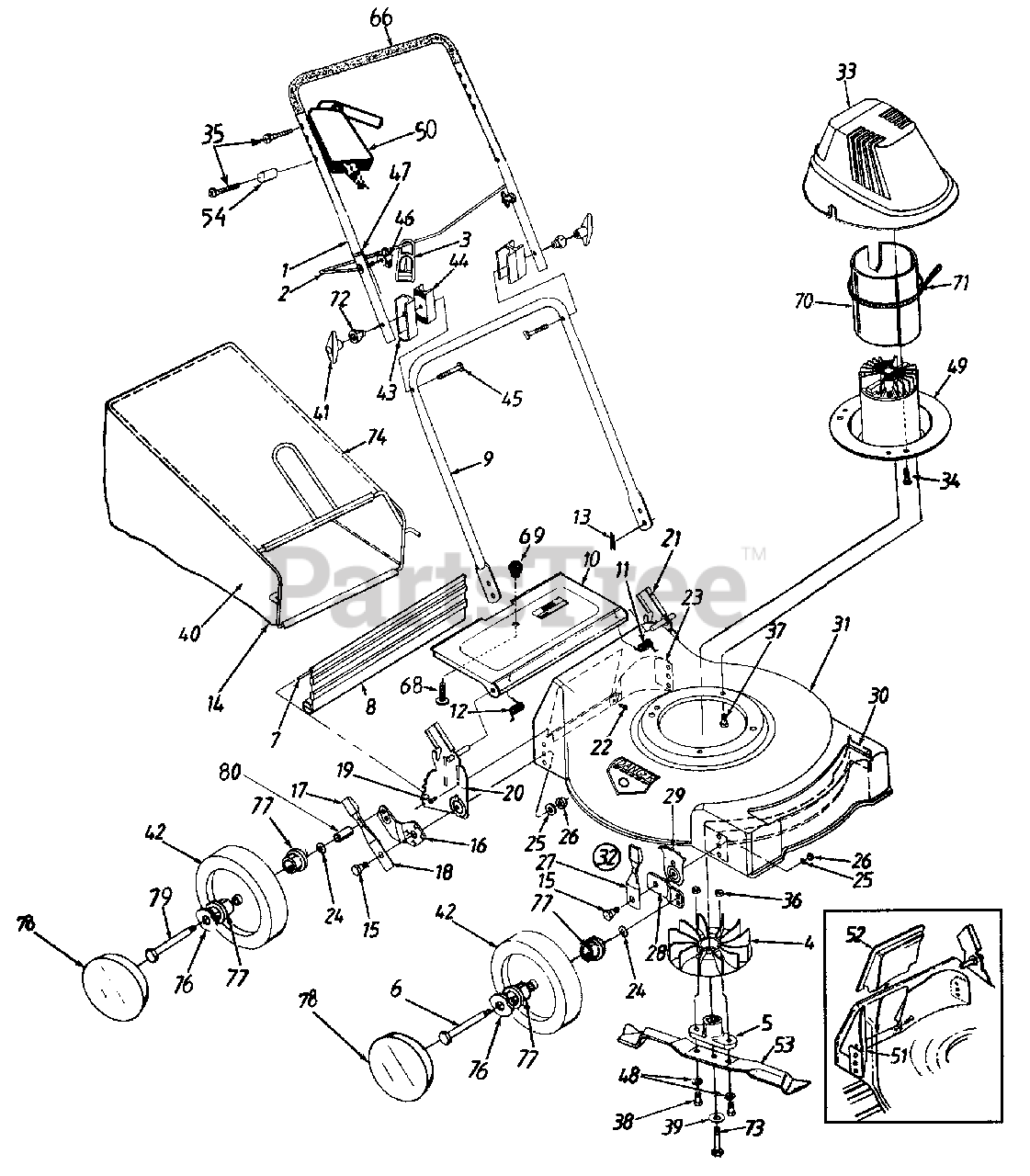

General Assembly Parts Diagram

  • Title

1

MTD 749-0886

Upper Handle

Variations

MTD 749-0886-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

MTD 725-1590

Strain-Relief Cord

$

$

Not available

4

MTD 731-1270

Fan

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

7

MTD 732-0712

Rear Flap Wire

$

$

Not available

8

MTD 731-1261

Rear Flap

$

$

Not available

9

MTD 749-0885

Lower Handle

Variations

MTD 749-0885-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 782-7025

Chute Door
(Superseded to 782-7025-0637)

Variations

MTD 782-7025-0637

DOOR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 732-0677

Door Spring (L.H.)
(Superseded to 932-0677)

$

$

Not available

12

MTD 732-0678

Door Spring (R. H.)

$8.49

$

Usually ships in 3-6 days

0

13

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

14

MTD 764-0326

Front Catcher Frame

Variations

MTD 764-0326-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 738-0507B

Shld. Bolt 5" X .434"

$4.49

$

In Stock, only 4 left!

0

16

MTD 14765

Pivot Bar (R.H.)

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar (L.H.)

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

17

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

18

MTD 732-0417A

Spring Lever

$

$

Not available

19

MTD 710-0896

Hex AB-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

20

MTD 682-0514

Handle Bracket Ass'y. (R.H.)
(Superseded to 682-0516-0637)

$

$

Not available

21

MTD 682-0513

Handle Bracket Ass'y. (L.H.)
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

22

MTD 710-1017

Torx. Mach. AB-Tap Scr.

$8.49

$

In Stock, Qty 9

0

23

MTD 782-5026

Rear Baffle
(Superseded to 782-5026-0637)

Variations

MTD 782-5026-0637

Rear Baffle - POWDER BLACK (0637)

$

$

Not available

MTD 782-5026-0638

Rear Baffle - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

24

MTD 736-0105

Bell Washer .38" I.d. x .88"o.d.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0356

Bell Washer .39" I.d. x 1.38"o.d.
(Superseded to 936-0356)

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

27

MTD 14832

Spring Lever Ass'y. W/ Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

30

MTD 782-5025

Front Baffle
(Superseded to 782-5025-0637)

Variations

MTD 782-5025-0637

BAFFLE-FR - POWDER BLACK (0637)

$

$

Not available

MTD 782-5025-0638

BAFFLE-FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 782-0054

19" Deck
(Superseded to 782-0054B)

Variations

MTD 782-0054-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0054-0498

No Longer Available B-0498 DEC - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0054-0629

DECK ASM-19" MULCH - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0054-0637

No Longer Available B-0637 DEC - POWDER BLACK (0637)

$

$

Not available

MTD 782-0054-0638

DECK ASM-19" MULCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0054-0640

DECK ASM-19" MULCH - CO-OP GREEN (0640)

$

$

Not available

MTD 782-0054-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0054-0665

DECK ASM-19" MULCH - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0054-0691

DECK ASM-19" MULCH - BLACK JACK (0691)

$

$

Not available

$

$

32

MTD 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1263

Motor Cover

$

$

Not available

34

MTD 710-3009

Scr. #10-24 x .75" Lg.

$7.49

$

Usually ships in 3-6 days

0

35

MTD 710-0605

C-Sunk Scr.1/4-20 x 1.8" Lg.

$4.49

$

In Stock, only 2 left!

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 710-0654A

Hex Tt-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

39

MTD 736-0452

Bell Washer .396" I.d. x 1.14"

$4.99

$

In Stock, Qty 5

0

40

MTD 764-0446

Grass Bag w/o Icon

$

$

Not available

MTD 764-0475A

Grass Bag w/ Icon
(Superseded to 753-04867)

$

$

Not available

41

MTD 720-0241

Plastic Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

42

MTD 734-1781

Wheel Ass'y Comp. 8" X 1.75" Bar

$32.99

$

In Stock, Qty 7

0

42

MTD 734-1699

Wheel Ass'y Comp. 7" x 1.50" Diamond

$

$

Not available

42

MTD 734-1841

Wheel Ass'y Comp. 8" x 1.70" Aero Grey Bar
(Superseded to 934-1841)

$

$

Not available

42

MTD 734-1819

Wheel Ass'y Comp. 8" x 2.00" Link
(Superseded to 734-1978)

Note: (Bearing P/N 741-0484)

$48.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

43

MTD 731-1268

Upper Handle Insulator

$16.99

$

Usually ships in 3-6 days

0

44

MTD 731-1267

Lower Handle Insulator

$

$

Not available

45

MTD 710-0450

Carriage Bolt 5/16-18 x 3" Lg.

$6.49

$

Usually ships in 3-6 days

0

46

UNKNOWN

$

$

Not available

47

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

48

MTD 736-0331

Bell Washer 3/8" I.d.

$3.99

$

In Stock, Qty 20+

0

49

MTD 624-0099

Motor, Cord & Switch Ass'y.

Note: (Incl. Ref. #50)

$

$

Not available

50

MTD 625-0050

Cord & Switch Ass'y. Comp.

$

$

Not available

51

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

52

MTD 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Variations

MTD 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

53

MTD 742-0719

19" Mulching Blade
(Superseded to 942-0719)

$34.99

$

Usually ships in 3-6 days

0

54

MTD 750-0218

Spacer
(Superseded to 950-0218)

$

$

Not available

66

MTD 720-0295

Foam Grip

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

?67

MTD 720-0258

Hub Cap

$

$

Not available

68

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

69

MTD 720-0275

Knob

$

$

Not available

70

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

71

MTD 721-0311

Insulator Motor Hsg.

$

$

Not available

72

MTD 731-1388

Insulator Knob

$

$

Not available

73

MTD 710-1251

Hex Bolt 3/8-24 x 2.5"

$

$

Not available

74

MTD 764-0325

Rear Catcher Frame
(Superseded to 764-0325-0637)

Variations

MTD 764-0325-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: Used with Bearing Wheel

$4.49

$

In Stock, Qty 9

0

77

Ball Bearing

Note: (2 Req’d per wheel)

$

$

Not available

78

MTD 720-0249

Hub Cap Euro - Grey
(Superseded to 920-0249)

Note: Optional

$

$

Not available

78

MTD 720-0258

Hub Cap Black - Moon

Note: Optional

$

$

Not available

78

MTD 731-0981A

Hub Cap Radial Spoke - Grey
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

78

MTD 731-0982A

Hub Cap Radial Spoke - Beige
(Superseded to 731-0982C)

Note: Optional

$11.99

$

In Stock, Qty 18

0

79

MTD 738-0102

Rear Axle Bolt

$9.99

$

In Stock, Qty 10

0

MTD 738-0213

Rear Axle Bolt

Note: Used with Bearing Wheel

$7.99

$

In Stock, only 2 left!

0

80

MTD 750-0535

Spacer
(Superseded to 950-0535)

Note: Used with Bearing Wheel

$4.49

$

In Stock, Qty 20+

0
