247-315A401 - MTD Shredder Vacuum (1997) (Yard-Man) Handle Assembly Parts Diagram

Shredder Vacuum

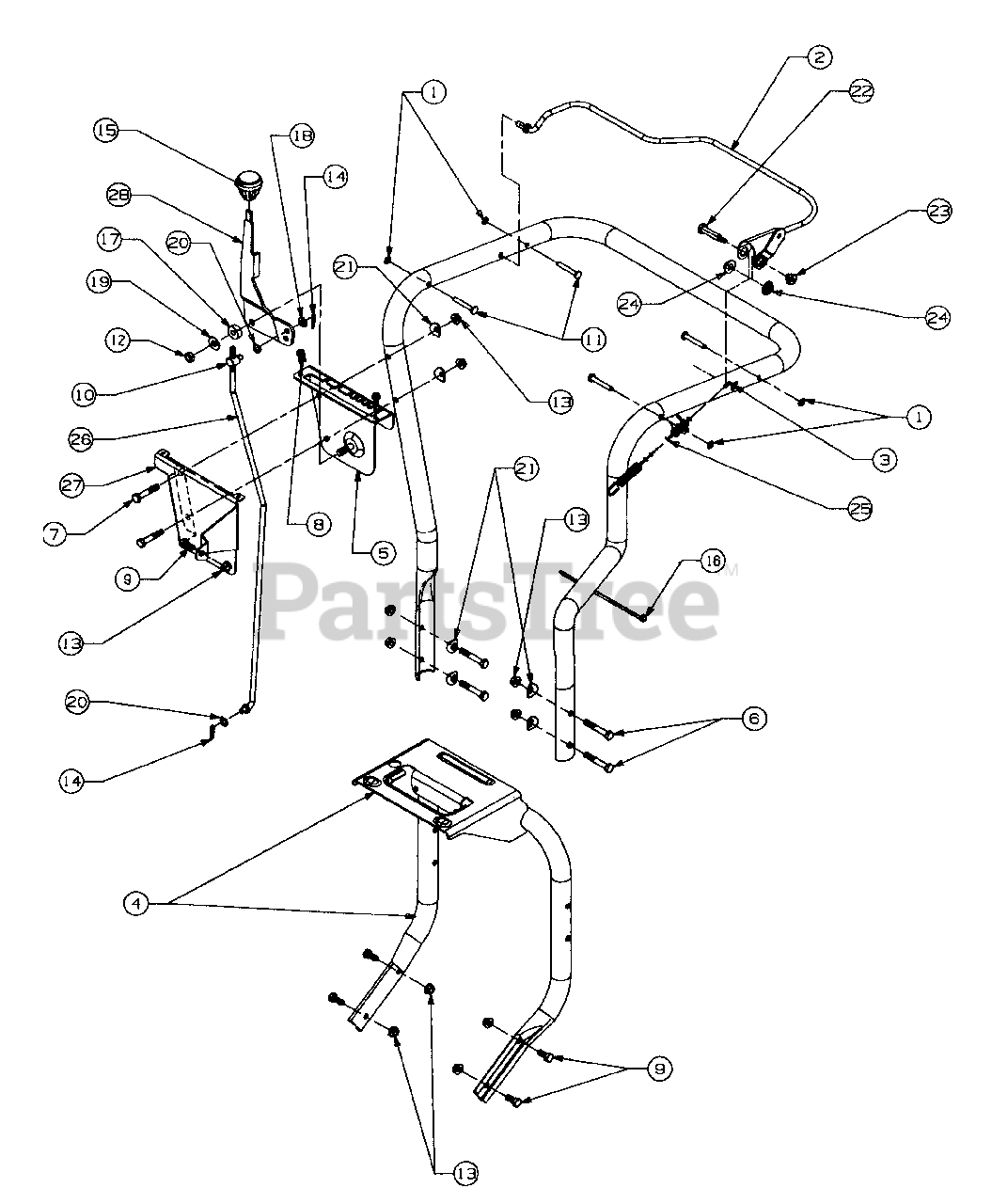

Handle Assembly Parts Diagram

  • Title

1

MTD 1539-019

PUSH NUT

$4.49

$

In Stock, Qty 14

0

2

MTD 647-0019

CONTROL ASSY

Variations

MTD 647-0019-0483

No Longer Available CONTROL-AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 647-0019-0498

No Longer Available CONTROL-AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 647-0019-0637

No Longer Available CONTROL-AS - POWDER BLACK (0637)

$

$

Not available

MTD 647-0019-0638

No Longer Available CONTROL-AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 647-0019-0662

Control Assembly, Clutch - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 649-0008

HANDLE ASSY-UPPER

Variations

MTD 649-0008-0483

No Longer Available HANDLE-ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 649-0008-0498

No Longer Available HANDLE-ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 649-0008-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

MTD 649-0008-0638

No Longer Available HANDLE-ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0008-0648

No Longer Available HANDLE-ASM - TECH GRAY (0648)

$

$

Not available

MTD 649-0008-0662

Handle Assembly, Upper - OYSTER GRAY (0662)

$

$

Not available

$

$

4

MTD 649-0012

HANDLE ASSY-LOWER

Variations

MTD 649-0012-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 649-0012-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

MTD 649-0012-0638

No Longer Available HANDLE-ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0012-0650

No Longer Available HANDLE-ASM - RED METALLIC (0650)

$

$

Not available

MTD 649-0012-0662

Handle Assembly, Lower - OYSTER GRAY (0662)

$

$

Not available

MTD 649-0012-0716

HANDLE-ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

MTD 681-0076

BRACKET ASSY-SHIFT

Variations

MTD 681-0076-0483

No Longer Available BRKT-SHIFT- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0076-0498

No Longer Available BRKT-SHIFT- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0076-0637

Bracket Assembly, Shift - POWDER BLACK (0637)

$

$

Not available

MTD 681-0076-0638

No Longer Available BRKT-SHIFT- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0076-0650

No Longer Available BRKT-SHIFT- - RED METALLIC (0650)

$

$

Not available

MTD 681-0076-0662

No Longer Available BRKT-SHIFT- - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0076-0689

No Longer Available BRKT-SHIFT- - POLO GREEN (0689)

$

$

Not available

MTD 681-0076-0716

No Longer Available BRKT-SHIFT- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

MTD 710-0116

SCREW-HEX
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

7

MTD 710-0380

SCREW-HEX
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

8

MTD 710-0896

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3008

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0677

FERRULE
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

11

MTD 711-0737

PIN-STUD
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 10

0

12

MTD 712-0116

NUT-HEX LOCK

$4.99

$

In Stock, Qty 6

0

13

MTD 712-3004A

NUT-HEX LOCK

$3.99

$

In Stock, Qty 20+

0

14

MTD 714-0104

PIN-COTTER

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0232

KNOB-SHIFT
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

16

MTD 725-0157

CABLE TIE

$3.99

$

In Stock, only 2 left!

0

17

MTD 735-0126

WASHER-RUBBER
(Superseded to 735-0126A)

$

$

Not available

18

MTD 736-0117

WASHER-FLAT
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

19

MTD 736-0300

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0413

WASHER-SPRING

$6.99

$

In Stock, only 2 left!

0

21

MTD 736-0451

WASHER-SADDLE

$4.49

$

Usually ships in 3-6 days

0

22

MTD 738-0560

SCREW-SHOULDER
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

23

MTD 738-0561

NUT-SHOULDER
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

24

MTD 741-0402

BEARING-FLANGE PLASTIC

$

$

Not available

25

MTD 746-0921

CABLE-CLUTCH
(Superseded to 946-0921)

$59.99

$

In Stock, only 1 left!

0

26

MTD 747-0626

ROD-SHIFT

$

$

Not available

27

MTD 781-0626

COVER-SHIFT

Variations

MTD 781-0626-0483

No Longer Available COVER-SHIF - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0626-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0626-0650

No Longer Available COVER-SHIF - RED METALLIC (0650)

$

$

Not available

MTD 781-0626-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0626-0716

No Longer Available COVER-SHIF - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 784-0297A

HANDLE-SHIFT

Variations

MTD 784-0297A-0483

No Longer Available HANDLE-SHI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0297A-0498

No Longer Available HANDLE-SHI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0297A-0662

No Longer Available HANDLE-SHI - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0297A-0716

No Longer Available HANDLE-SHI - CUB YELLOW-99 (0716)

$

$

Not available

$

$
