247-315A401 - MTD Shredder Vacuum (1997) (Yard-Man) Differential Assembly Parts Diagram

Shredder Vacuum

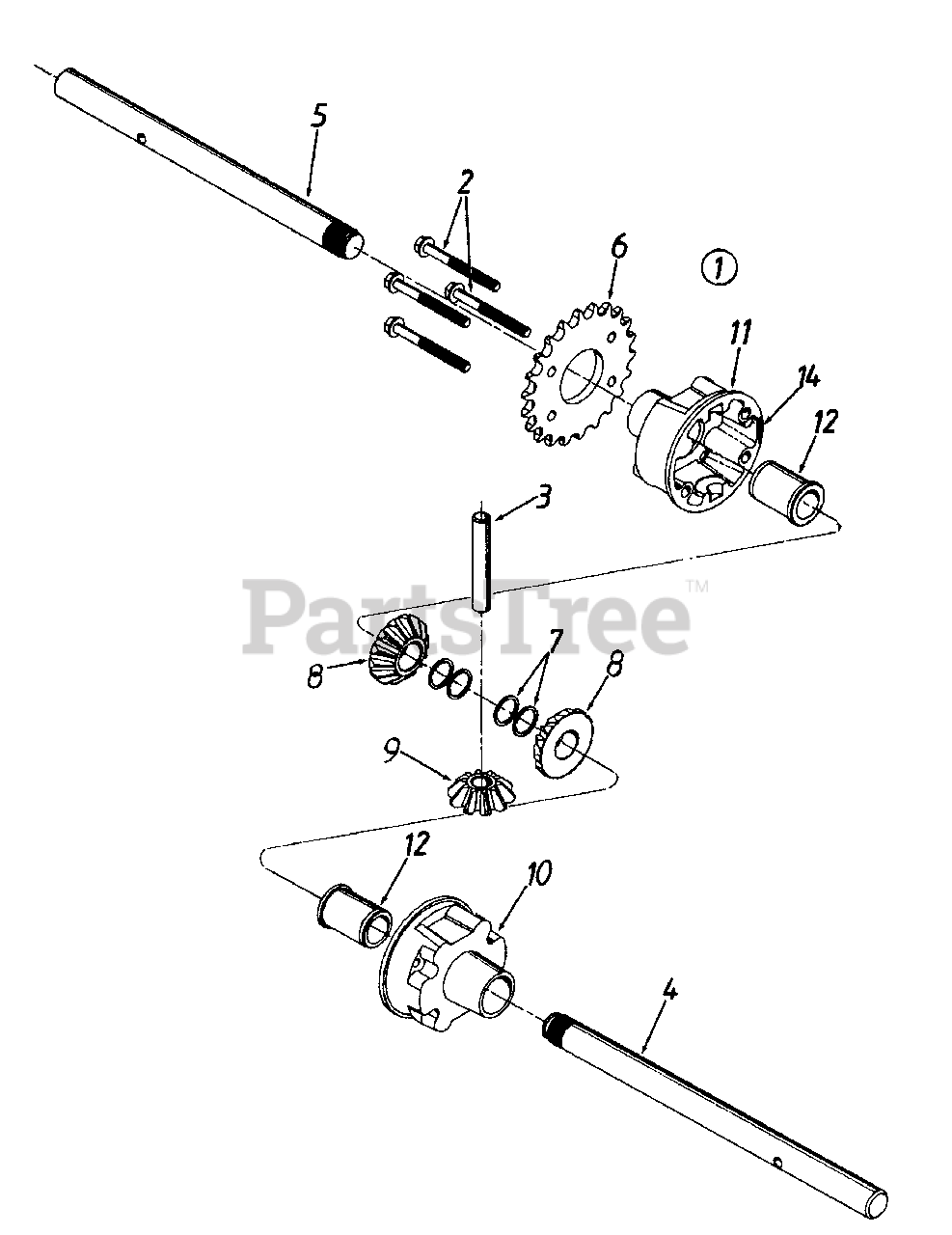

Differential Assembly Parts Diagram

  • Title
1

MTD 618-0168

DIFFERENTIAL ASSY COMPLETE

$

$

Not available

2

MTD 710-1206

SCREW-HEX

$7.49

$

In Stock, Qty 6

0

3

MTD 711-1035

SHAFT-CROSS

$

$

Not available

4

MTD 711-1037

AXLE-SHAFT 10.95" LONG

$

$

Not available

5

MTD 711-1038

AXLE-SHAFT 9.82" LONG

$

$

Not available

6

MTD 713-0445

SPROCKET 22 T

$

$

Not available

7

MTD 716-0232

RING-RETAINING (2 PER AXLE)

$

$

Not available

8

MTD 717-1358

GEAR-DIFFERENTIAL 14T

$

$

Not available

9

MTD 717-1437

GEAR-DIFFERENTIAL 10T

$

$

Not available

10

MTD 719-0333

HOUSING-DIFFERENTIAL RH

$

$

Not available

11

MTD 719-0334

HOUSING-DIFFERENTIAL LH

$

$

Not available

12

MTD 748-0383

BEARING-FLANGE
(Superseded to 948-0383)

$

$

Not available

?13

MTD 737-0300

GREASE
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

14

SEALANT-LOCTITE 5699

$

$

Not available
