247.29934 (21A-34M5099) - Craftsman Tiller (2011) (Sears) Tine & Drive Parts Diagram

Tiller

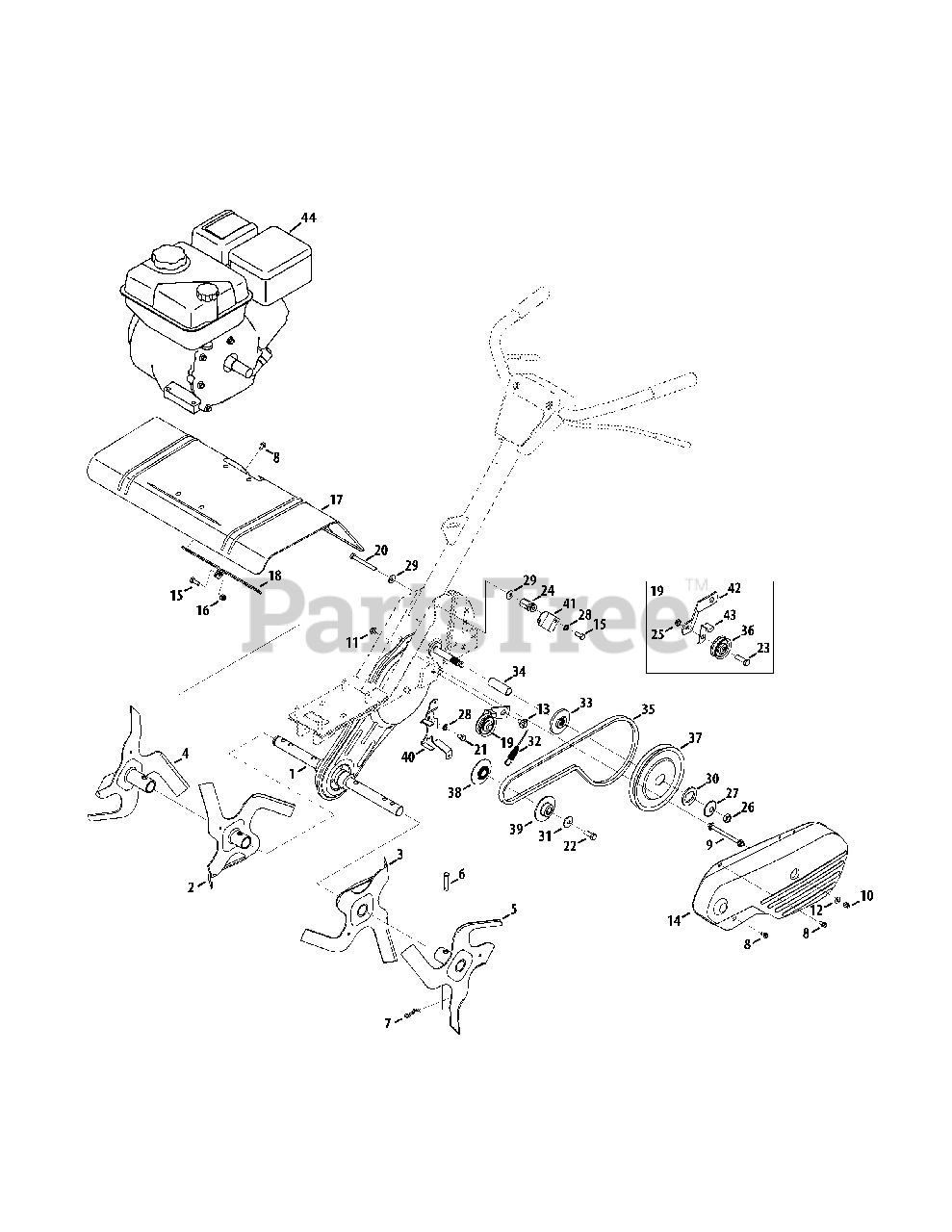

Tine & Drive Parts Diagram

  • Title

1

MTD 986-0091

Chain Case Assembly
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

2

MTD 642-0002-0637

Inner Tine Assembly, RH

$60.99

$

In Stock, only 1 left!

0

3

MTD 642-0003-0637

Inner Tine Assembly, LH

$60.99

$

In Stock, Qty 12

0

4

MTD 642-0004-0637

Outer Tine Assembly, RH

$60.99

$

In Stock, Qty 12

0

5

MTD 642-0005-0637

Outer Tine Assembly, LH

$60.99

$

In Stock, only 2 left!

0

6

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

7

MTD 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

8

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

9

MTD 711-0919

Bolt, Belt Cover

$19.99

$

Usually ships in 3-6 days

0

10

MTD 712-0392

Nut, 1/4-28, Lock

$6.99

$

In Stock, only 1 left!

0

11

MTD 712-3004A

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, Qty 20+

0

12

MTD 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

13

MTD 738-0930

Shoulder Screw, .560 x .165 5/16-18

$6.99

$

In Stock, only 1 left!

0

14

MTD 786-0056A-4044

Belt Cover
(Superseded to 786-0056-4044)

$86.99

$

Usually ships in 3-6 days

0

15

MTD 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, Qty 20+

0

17

MTD 786-0043A-4044

Tine Shield

$146.99

$

Usually ships in 3-6 days

0

18

MTD 786-0053-0637

Bracket, Tine Shield

$10.99

$

Usually ships in 3-6 days

0

19

MTD 686-0088

Idler Bracket Assembly

$143.99

$

Usually ships in 3-6 days

0

20

MTD 710-0189

Hex Head Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

21

MTD 710-0237

Hex Head Screw, 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

22

MTD 710-1039

Hex Head Screw, 3/8-24 x 1.00

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3005

Hex Head Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

24

MTD 711-1036A

Hex Nut, 5/16-18

$17.99

$

Usually ships in 3-6 days

0

25

MTD 712-0266A

Jamlock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-3029

Nut, 1/2-20, Jam

$6.99

$

In Stock, Qty 6

0

27

MTD 736-0112

Washer, .531 x 1.62 x .045

$9.99

$

Usually ships in 3-6 days

0

28

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0312

Flat Washer, 1.26 x 1.87 x .150

$3.99

$

Usually ships in 3-6 days

0

31

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

32

MTD 946-0918

Forward Clutch Cable

$30.99

$

Usually ships in 3-6 days

0

33

MTD 948-0350

Pulley Adaptor

$21.99

$

Usually ships in 3-6 days

0

34

MTD 950-0892

Spacer, .64 ID x 2.4

$11.99

$

Usually ships in 3-6 days

0

35

MTD 954-0428

Belt, 4L x 41.9 LG

$34.99

$

In Stock, only 1 left!

0

36

MTD 756-0313

Pulley 1.88 OD

$26.99

$

In Stock, only 3 left!

0

37

MTD 756-0585

Pulley 6.00 OD

$41.99

$

Usually ships in 3-6 days

0

38

MTD 756-0971

Inner Engine Pulley

$14.99

$

Usually ships in 3-6 days

0

39

MTD 756-0972

Outer Engine Pulley

$16.99

$

Usually ships in 3-6 days

0

40

MTD 786-0039B-0637

Belt Keeper Bracket

$47.99

$

Usually ships in 3-6 days

0

41

MTD 786-0129-0637

Cable Guide Bracket

$27.99

$

Usually ships in 3-6 days

0

42

MTD 786-0144-0637

Idler Bracket

$13.99

$

Usually ships in 3-6 days

0

43

MTD 786-0149

Belt Keeper

$9.99

$

Usually ships in 3-6 days

0
