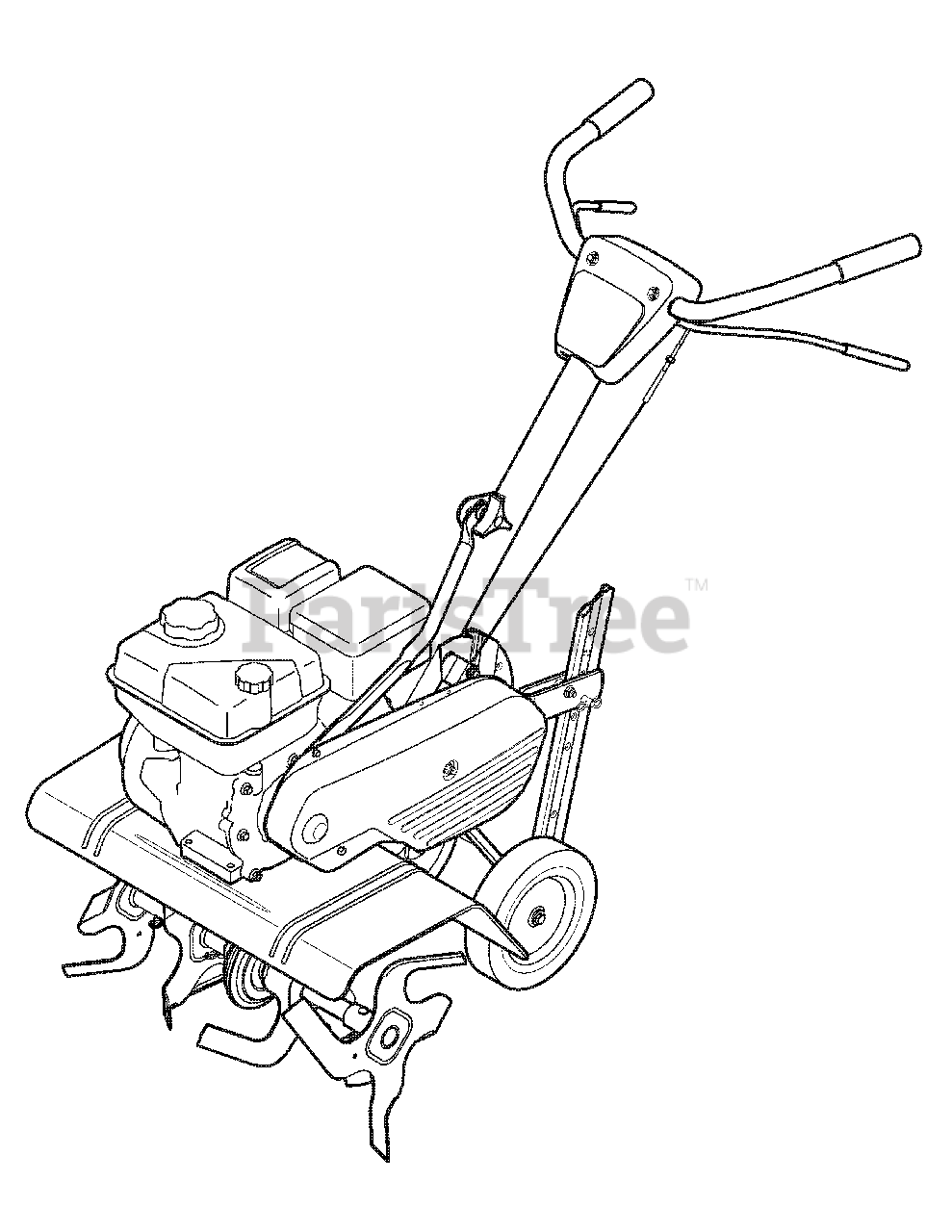

247.29934 (21A-34M5099) - Craftsman Tiller (2010) (Sears) .Quick Reference Parts Diagram

Tiller

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

NA

Pre Filter

$

$

Not available

MTD 951-10794

Air Filter

$14.99

$

In Stock, Qty 20+

0

MTD 951-10652

Fuel Filter

$9.49

$

In Stock, only 4 left!

0

MTD 951-10917

Fuel Cap
(Superseded to 951-10917B)

$16.99

$

Usually ships in 3-6 days

0

MTD 954-0428

Drive Belt - FWD

$34.99

$

In Stock, only 1 left!

0

NA

Drive Belt - REV

$

$

Not available

MTD 946-0918

Clutch Cable - FWD

$30.99

$

Usually ships in 3-6 days

0

NA

Clutch Cable - REV

$

$

Not available

MTD 642-0005-0637

Tines - Outer - LH

$60.99

$

In Stock, only 2 left!

0

MTD 642-0004-0637

Tines - Outer - RH

$60.99

$

In Stock, Qty 12

0

MTD 642-0003-0637

Tines - Inner - LH

$60.99

$

In Stock, Qty 12

0

MTD 642-0002-0637

Tines - Inner - RH

$60.99

$

In Stock, only 1 left!

0

MTD 734-04547

Wheel Assembly

$45.99

$

Usually ships in 3-6 days

0

MTD 720-0274

Foam Grip

$11.99

$

In Stock, Qty 11

0

MTD 720-0195

Handle Knob

$15.99

$

Usually ships in 3-6 days

0
