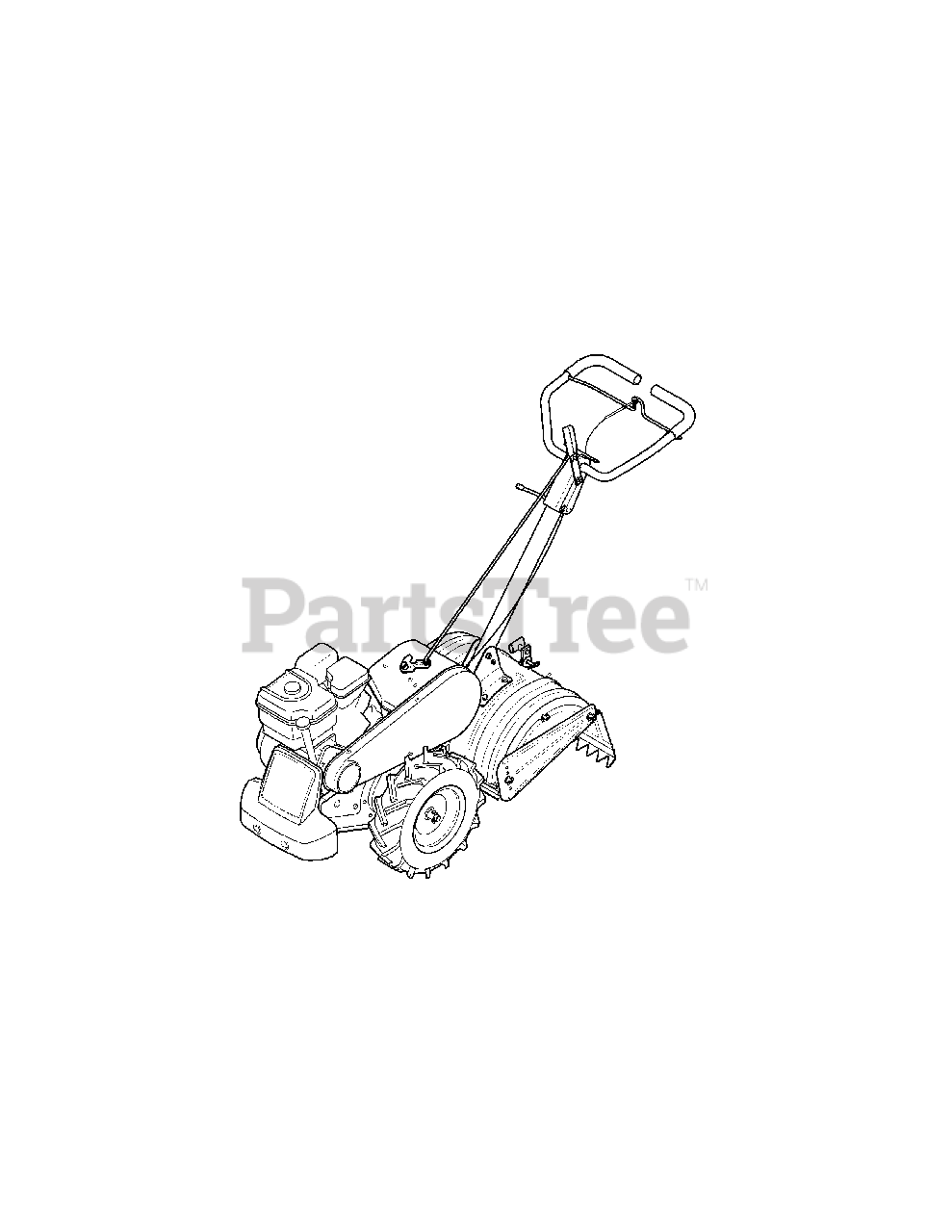

247.29933 (21AB454E299) - Craftsman Tiller (2011) (Sears) .Quick Reference Parts Diagram

Tiller

.Quick Reference Parts Diagram

  • Title

MTD 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

MTD BS-493537S

Pre Filter

$6.49

$

In Stock, Qty 12

0

MTD BS-491588S

Air Filter

$6.49

$

In Stock, Qty 20+

0

MTD BS-394358S

Fuel Filter

$5.99

$

In Stock, Qty 20+

0

MTD BS-795221

Fuel Cap

$20.99

$

Usually ships in 2-12 days

0

MTD 954-0434

Drive Belt

$61.99

$

Usually ships in 3-6 days

0

MTD 756-0405

Idler Pulley

$71.99

$

Usually ships in 3-6 days

0

MTD 946-1117

Clutch Cable

$66.99

$

In Stock, only 1 left!

0

MTD 742-0305A-0637

Tines - Outer - LH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Outer - RH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Inner - LH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Inner - RH

$20.99

$

In Stock, Qty 20+

0

MTD 934-04654

Wheel Assembly

$162.99

$

Usually ships in 3-6 days

0

MTD 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

MTD 720-0210A

Handle Knob

$15.99

$

In Stock, only 2 left!

0
