247.29932 (21AB45M5099) - Craftsman Tiller (2012) (Sears) Tine & Drive Parts Diagram

Tiller

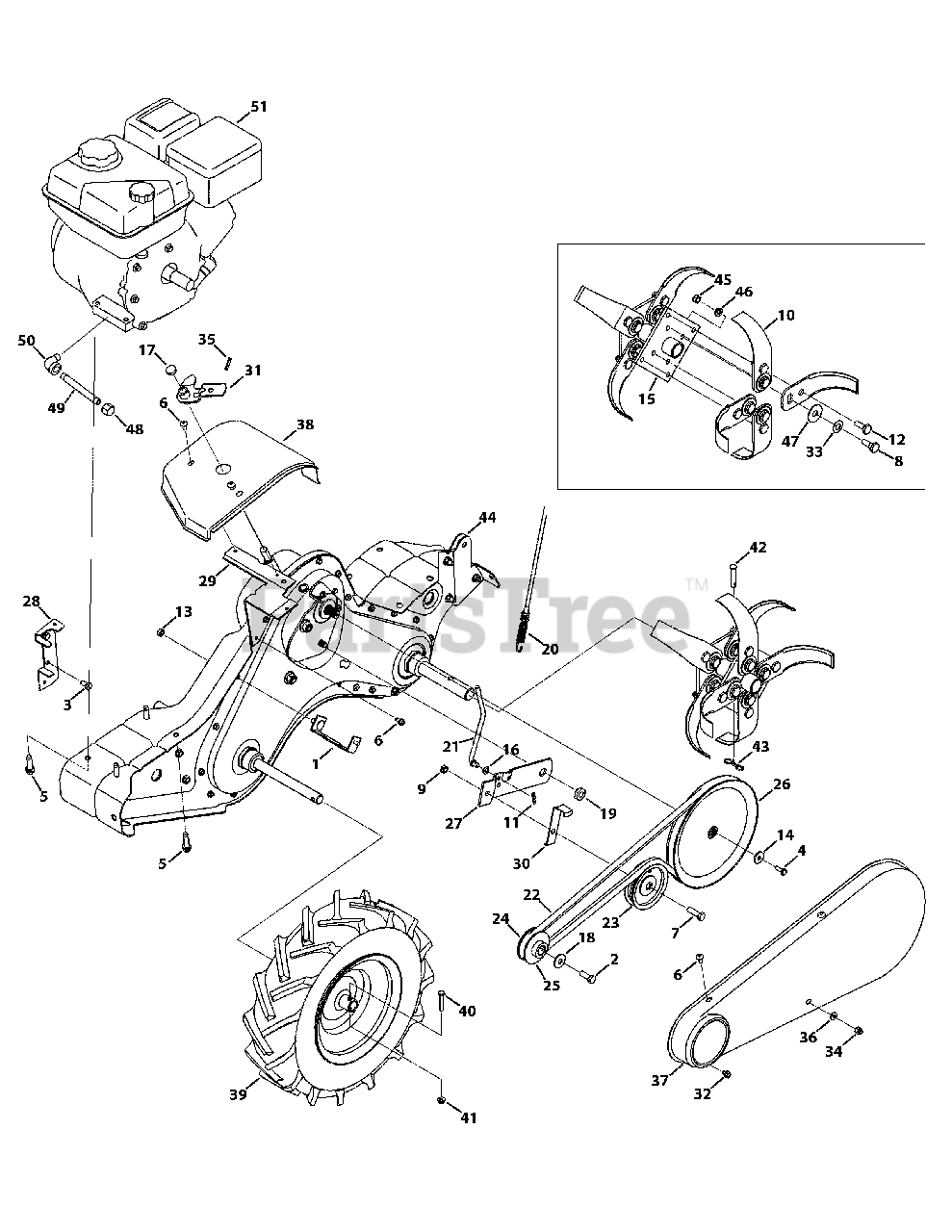

Tine & Drive Parts Diagram

  • Title

1

MTD 686-0111-0637

Belt Cover Bracket Assembly
(Superseded to 686-0111)

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-1039

Hex Screw, 3/8-24 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0170

Hex Lock Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

4

MTD 710-0513

Hex Lock Screw, 1/4-28 x .625
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

5

MTD 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1652

Hex Washer Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

MTD 938-0688

Shoulder Screw, 3/8-24 x 1/2 x .325

$9.99

$

In Stock, Qty 15

0

9

MTD 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 742-0305A-0637

Articulating Tine

$20.99

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-0689

Shoulder Screw, 3/8-24 x 1/2 x .180

$8.99

$

In Stock, only 2 left!

0

13

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

15

MTD 784-0160-0637

Tine Adaptor Assembly

$115.99

$

In Stock, only 3 left!

0

15

MTD 984-0205A-0637

Tine Assembly

Note: (Includes:712-3054 (x16), 936-0169 (x16), 936-0208 (x8), 936-0253 (x8), 938-0688 (x8), 938-0689 (x8), 742-0305A-0637 (x8) & 784-0160-0637 (x1))

$215.99

$

In Stock, only 2 left!

0

16

MTD 936-0271

Washer, Spring, .317 x .625 x .020

$4.49

$

In Stock, Qty 10

0

17

MTD 731-07556

Cap

$3.49

$

Usually ships in 3-6 days

0

18

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

19

MTD 738-0876A

Shoulder Nut, 7/16-20

$10.99

$

In Stock, Qty 15

0

20

MTD 946-1117

Clutch Cable

$66.99

$

In Stock, only 1 left!

0

21

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

22

MTD 954-0434

Belt

$61.99

$

Usually ships in 3-6 days

0

23

MTD 756-0405

Flat Idler Pulley, 3.75

$71.99

$

Usually ships in 3-6 days

0

24

MTD 756-0971

Engine Pulley, Inner Half

$14.99

$

Usually ships in 3-6 days

0

25

MTD 756-0972

Engine Pulley, Outer Half

$16.99

$

Usually ships in 3-6 days

0

26

MTD 756-1162

Input Pulley, 4 x 8.594

$90.99

$

In Stock, only 1 left!

0

27

MTD 786-0064A

Idler Pulley Bracket

$38.99

$

In Stock, only 1 left!

0

28

MTD 786-0185A-0637

Belt Keeper Bracket

$16.99

$

Usually ships in 3-6 days

0

29

MTD 786-0187-0637

Shift Cover Bracket

$23.99

$

Usually ships in 3-6 days

0

30

MTD 786-0193-0637

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

31

MTD 686-0109A

Shift Crank Assembly

$36.99

$

Usually ships in 3-6 days

0

32

MTD 710-0653

Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 8

0

33

MTD 936-0253

Bell Washer, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available

34

MTD 712-0392

Lock Nut, 1/4-28

$6.99

$

In Stock, only 1 left!

0

35

MTD 715-0120

Spiral Pin, 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

36

MTD 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

37

MTD 784-0158A-0691

Belt Cover
(Superseded to 784-0158B-0691)

$95.99

$

Usually ships in 3-6 days

0

38

MTD 784-0208D-0691

Shift Cover

$98.99

$

Usually ships in 3-6 days

0

39

MTD 934-04654

Wheel, 16 x 4.6 x 8

$162.99

$

Usually ships in 3-6 days

0

40

MTD 710-05289

Hex Screw, 1/4-20 x 1.50

$5.99

$

In Stock, Qty 20+

0

41

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

43

MTD 714-04043

Cotter Pin

$4.99

$

In Stock, Qty 18

0

44

MTD 986-04074B

Complete Gear Case Assembly
(Superseded to 986-04074E)

$1708.99

$

Usually ships in 3-6 days

0

45

MTD 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

46

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 936-0208

Flat Washer, .51 x 1.5 x 0.07
(Superseded to 736-0208)

$

$

Not available

48

MTD 737-04355

Hex End Cap, 1/8-27
(Superseded to 737-04355A)

$6.49

$

Usually ships in 3-6 days

0

49

MTD 737-04356

Straight Pipe, 1/8-27 x 3.5
(Superseded to 737-04356A)

$14.99

$

Usually ships in 3-6 days

0

50

MTD 737-04357

Elbow Lock Adapter, 1/8-27
(Superseded to 737-04357A)

$19.99

$

Usually ships in 3-6 days

0

51

MTD 952Z170-V0B

Replacement Engine
(Superseded to 952Z170-AUC)

$747.99

$

Usually ships in 3-6 days

0
