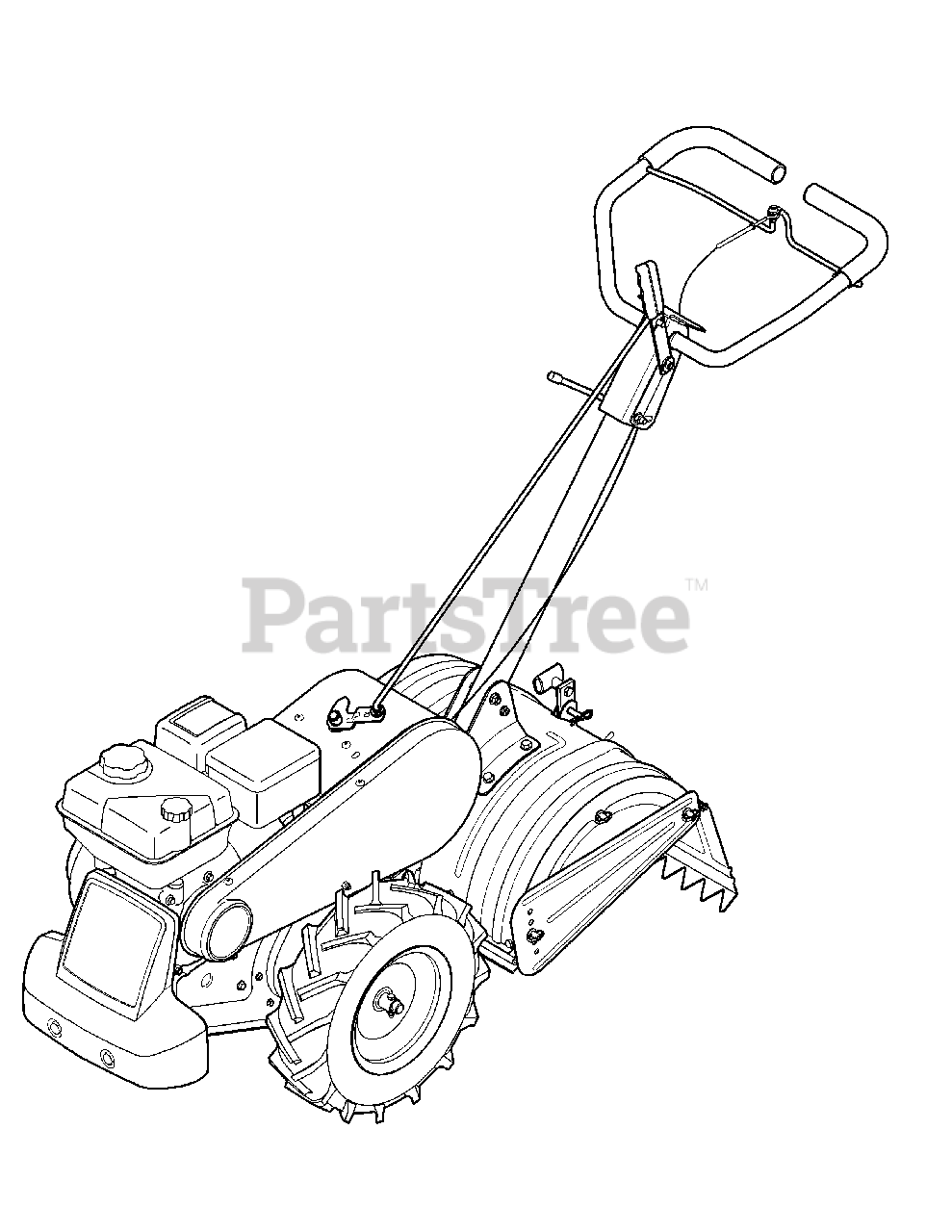

247.29932 (21AB45M5099) - Craftsman Tiller (2012) (Sears) .Quick Reference Parts Diagram

Tiller

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10794

Air & Pre Filter

$14.99

$

In Stock, Qty 20+

0

MTD 951-10651

Fuel Filter

$15.99

$

In Stock, Qty 15

0

MTD 951-10917

Fuel Cap
(Superseded to 951-10917B)

$16.99

$

In Stock, only 1 left!

0

MTD 954-0434

Drive Belt - FWD

$61.99

$

Usually ships in 3-6 days

0

MTD 756-0405

Idler Pulley

$71.99

$

Usually ships in 3-6 days

0

MTD 946-1117

Clutch Cable

$66.99

$

Usually ships in 3-6 days

0

MTD 742-0305A-0637

Tines - Outer - LH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Outer - RH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Inner - LH

$20.99

$

In Stock, Qty 20+

0

MTD 742-0305A-0637

Tines - Inner - RH

$20.99

$

In Stock, Qty 20+

0

MTD 934-04654

Wheel Assembly

$162.99

$

Usually ships in 3-6 days

0

MTD 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

MTD 720-0210A

Handle Knob

$15.99

$

In Stock, only 2 left!

0
