247.29932 (21AB45M5099) - Craftsman Tiller (2011) (Sears) Gearcase Parts Diagram

Tiller

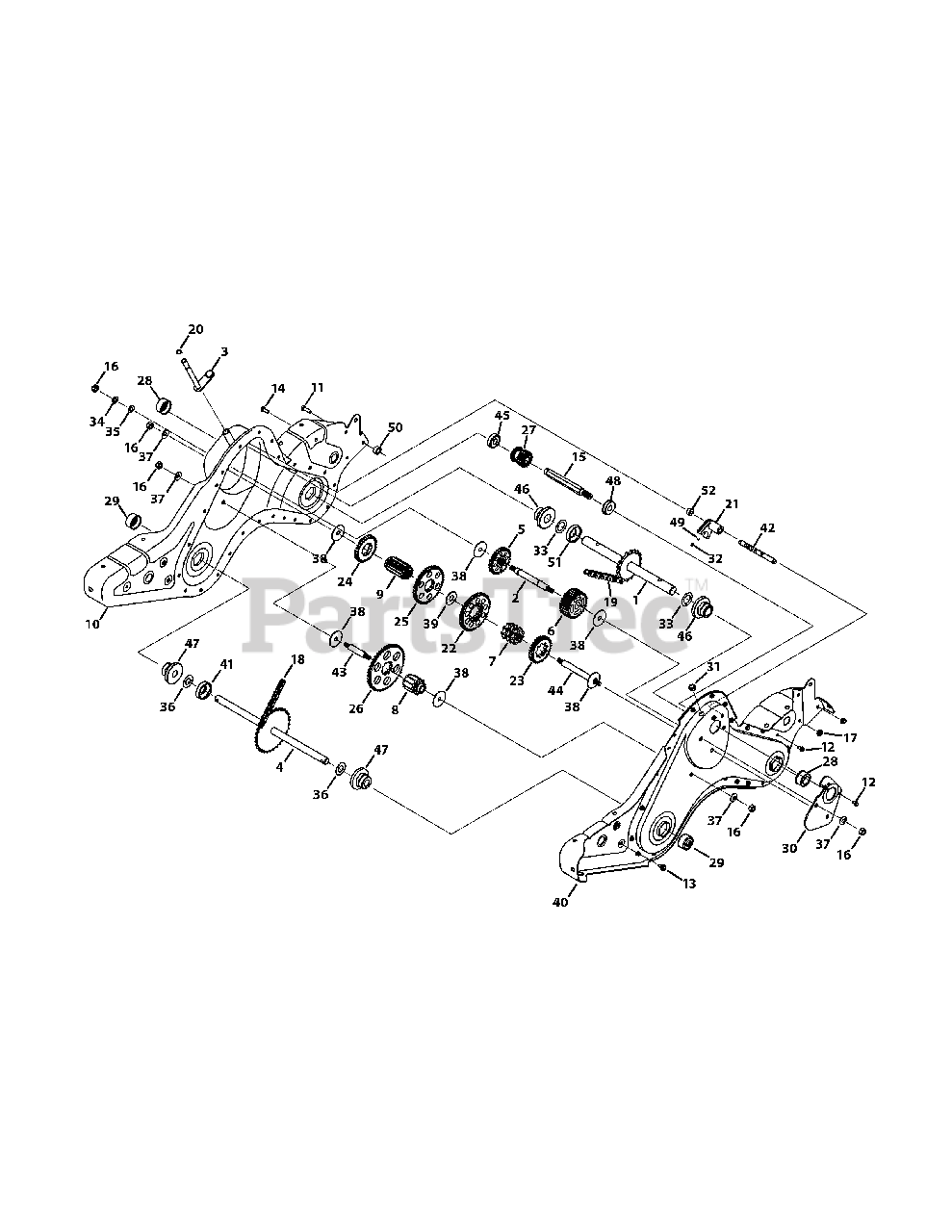

Gearcase Parts Diagram

  • Title

1

MTD 611-0021

Shaft Assembly, Tine, 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

2

MTD 611-0128

Shaft Assembly, Jack

$55.99

$

In Stock, only 1 left!

0

3

MTD 611-0129

Shaft Assembly, Shift Input

$58.99

$

In Stock, only 3 left!

0

4

MTD 611-04074A

Shaft Assembly, Wheel, 33T

$102.99

$

In Stock, only 1 left!

0

5

MTD 617-0058

Gear Assembly, 30T Reverse Idler
(Superseded to 617-0058A)

$80.99

$

Usually ships in 3-6 days

0

6

MTD 617-0059

Gear Assembly, 30T Tine Idler
(Superseded to 917-0059B)

$139.99

$

In Stock, only 1 left!

0

7

MTD 617-0060

Sprocket Assembly, 9T Tine Input
(Superseded to 617-0060A)

$162.99

$

In Stock, only 4 left!

0

8

MTD 617-0061

Sprocket Assembly, 10T Wheel Input

$117.99

$

Usually ships in 3-6 days

0

9

MTD 617-0062

Gear Assembly, 11T
(Superseded to 617-0062A)

$124.99

$

Usually ships in 3-6 days

0

10

MTD 686-0108A-0637

RH Chain Case Housing Assembly

$268.99

$

Usually ships in 3-6 days

0

11

MTD 710-0376

Hex Head Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

12

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0604A

Screw, :5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1349

Input Shaft, .75
(Superseded to 711-1349B)

$51.99

$

In Stock, only 1 left!

0

16

MTD 712-0378

Nut, Hex, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 913-0367

Endless Chain, #420 x 50 Links

$51.99

$

In Stock, only 2 left!

0

19

MTD 913-0484

Endless Chain, #50 x 54 Links

$74.99

$

In Stock, only 1 left!

0

20

MTD 716-0865

Snap Ring, .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 717-0853A

Clutch Collar

$83.99

$

Usually ships in 3-6 days

0

22

MTD 717-1582

Gear Spur, 44T
(Superseded to 717-1582B)

$100.99

$

In Stock, only 1 left!

0

23

MTD 717-1583

Gear Spur, 30T

$53.99

$

In Stock, only 1 left!

0

24

MTD 717-1584

Gear Spur, 30T

$42.99

$

In Stock, only 1 left!

0

25

MTD 717-1585

Gear Spur, 44T

$84.99

$

In Stock, only 1 left!

0

26

MTD 717-1587

Gear Spur, 44T

$97.99

$

Usually ships in 3-6 days

0

27

MTD 717-1594

Gear Spur, 16T

$198.99

$

Usually ships in 3-6 days

0

28

MTD 921-0378

Shaft Seal, 1.0

$18.99

$

In Stock, only 2 left!

0

29

MTD 721-0379

Shaft Seal, .75

$18.99

$

In Stock, only 2 left!

0

30

MTD 786-0238

Positioner Gear Bracket
(Superseded to 786-0238A)

$21.99

$

Usually ships in 3-6 days

0

31

MTD 726-0277

Tapered Cap Plug

$4.99

$

Usually ships in 3-6 days

0

32

MTD 932-0496

Compression Spring, .230 OD

$4.99

$

In Stock, Qty 10

0

33

MTD 936-0163

Washer, Flat, 1.03 x 1.62 x .03
(Superseded to 736-0163)

$

$

Not available

34

MTD 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

35

MTD 936-0226

Washer, Flat,.474 x .879 x .064

$3.99

$

Usually ships in 3-6 days

0

36

MTD 936-0351

Washer, Flat, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0407

Washer, Bell,.45 x 1.00 x .062

$3.99

$

In Stock, Qty 12

0

38

MTD 736-0518

Washer, Thrust, .445 x 1.92 x .060

$10.99

$

Usually ships in 3-6 days

0

39

MTD 736-3088

Washer, Flat,1.595 x .635 x .062

$4.49

$

In Stock, Qty 8

0

40

MTD 686-04129-0637

LH Chain Case Housing

$229.99

$

Usually ships in 3-6 days

0

41

MTD 950-0671

Spacer, .75 x 2.0 x .50

$11.99

$

Usually ships in 3-6 days

0

42

MTD 738-0645

Shaft Detent, .5 DIA

$61.99

$

Usually ships in 3-6 days

0

43

MTD 738-0648

Shaft, Jack, .625 x 2.385

$51.99

$

Usually ships in 3-6 days

0

44

MTD 738-04424A

Shaft, Jack, .6250 x 5.0050

$18.99

$

In Stock, only 1 left!

0

45

MTD 941-0600

Ball Bearing, 17 x 40 x 12:6203

$25.99

$

In Stock, Qty 20+

0

46

MTD 941-0420

Flange Bearing, 1.0 x 2.5 x 1.38
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

47

MTD 741-0421

Flange Bearing, .75 x 2.5 x 1.38

$

$

Not available

48

MTD 941-0563

Ball Bearing, 17 x 40 x 12:6203

$36.99

$

In Stock, Qty 11

0

49

MTD 741-0862

Ball, Detent, .250

$4.49

$

In Stock, Qty 20+

0

50

MTD 750-0258

Spacer, .315 x .750 x .375 LG

$11.99

$

In Stock, only 1 left!

0

51

MTD 950-0570

Spacer, 1.0 ID x 2.0 OD x.5 LG

$10.99

$

In Stock, only 4 left!

0

52

MTD 750-0664

Spacer, .505 ID x .88 OD x .440

$6.99

$

In Stock, only 2 left!

0
