247.299301 (21AB40M7799) - Craftsman Tiller (2012) (Sears) Tine & Drive Assembly Parts Diagram

Tiller

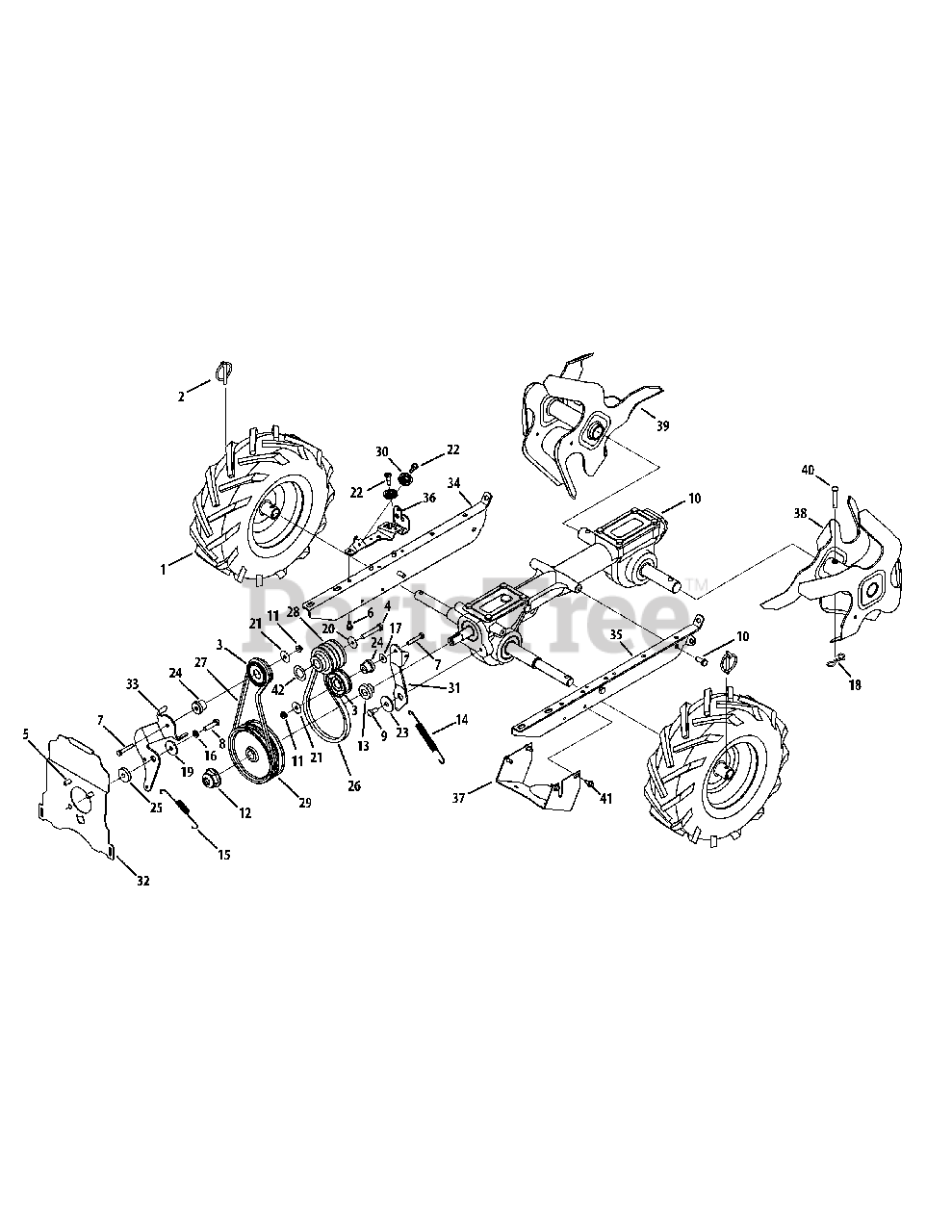

Tine & Drive Assembly Parts Diagram

  • Title

1

MTD 934-04652

Complete Wheel. Assy., 13 x 5 x 6 (B, C)

$171.99

$

Usually ships in 3-6 days

0

2

MTD 714-0143A

Click Pin

$6.49

$

In Stock, Qty 7

0

3

MTD 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

4

MTD 710-0151

Hex Screw, 3/8-24 x 2.00

$7.49

$

In Stock, only 3 left!

0

5

MTD 710-0170

Hex Screw, 5/16-24 x .625

$6.99

$

In Stock, only 1 left!

0

6

MTD 710-0599

Self Tapping Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

8

MTD 710-0672

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 18

0

9

MTD 710-1880

Hex Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

10

MTD 918-04815A

Transmission Assembly

$911.99

$

Usually ships in 3-6 days

0

11

MTD 712-04064

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0700

Nut, 9/16-18, Flange Lock

$10.99

$

In Stock, only 1 left!

0

13

MTD 718-04407

Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

14

MTD 732-04085

Extension Spring, .480 OD X 5.00 LG

$14.99

$

Usually ships in 3-6 days

0

15

MTD 732-04276A

Extension Spring, LT5 PTO

$9.99

$

In Stock, only 1 left!

0

16

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

17

MTD 736-0173

Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

18

MTD 714-04043

Internal Cotter Pin

$4.99

$

In Stock, Qty 18

0

19

MTD 736-0343

Flat Washer, .330 X 1.25 X .120

$4.49

$

In Stock, Qty 7

0

20

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

21

MTD 736-3092

Flat Washer, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 9

0

22

MTD 738-04425

Shoulder Screw, .342 x .335 1/4-28

$4.49

$

In Stock, Qty 20+

0

23

MTD 748-04087A

Pivot Idler Spacer

$6.49

$

In Stock, Qty 9

0

24

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

25

MTD 750-04907

Pivot Idler Spacer

$6.49

$

Usually ships in 3-6 days

0

26

MTD 954-04090

V-Belt

$20.99

$

Usually ships in 3-6 days

0

27

MTD 954-04091

V-Belt

$18.99

$

In Stock, only 4 left!

0

28

MTD 756-04198A

Engine Pulley

$55.99

$

Usually ships in 3-6 days

0

29

MTD 756-04355

Transmission Pulley

$55.99

$

Usually ships in 3-6 days

0

30

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

31

MTD 786-04312

Idler Bracket, Forward

$13.99

$

In Stock, only 1 left!

0

32

MTD 786-04343-4044

Cover Plate

$18.99

$

Usually ships in 3-6 days

0

33

MTD 786-04346

Idler Bracket, Reverse

$10.99

$

Usually ships in 3-6 days

0

34

MTD 786-04416A-4044

Mounting Frame, RH
(Superseded to 786-04416B-4044)

$25.99

$

Usually ships in 3-6 days

0

35

MTD 786-04415B-4044

Mounting Frame, LH
(Superseded to 786-04415D-4044)

$25.99

$

Usually ships in 3-6 days

0

36

MTD 786-04357-4044

Pulley Bracket
(Superseded to 786-04357A-4044)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 786-04371-4044

Pulley Shield

$18.99

$

Usually ships in 3-6 days

0

38

MTD 642-04071-4044

Tine Assembly, LH

$110.99

$

Usually ships in 3-6 days

0

39

MTD 642-04072-4044

Tine Assembly, RH

$110.99

$

Usually ships in 3-6 days

0

40

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

41

MTD 710-0896

Hex Washer Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0315

Flat Washer, .760 x 1.500 x .120

$6.99

$

In Stock, Qty 6

0
