247.29930 (21AB40M1099) - Craftsman Tiller (2012) (Sears) Handle & Tine Shield Parts Diagram

Tiller

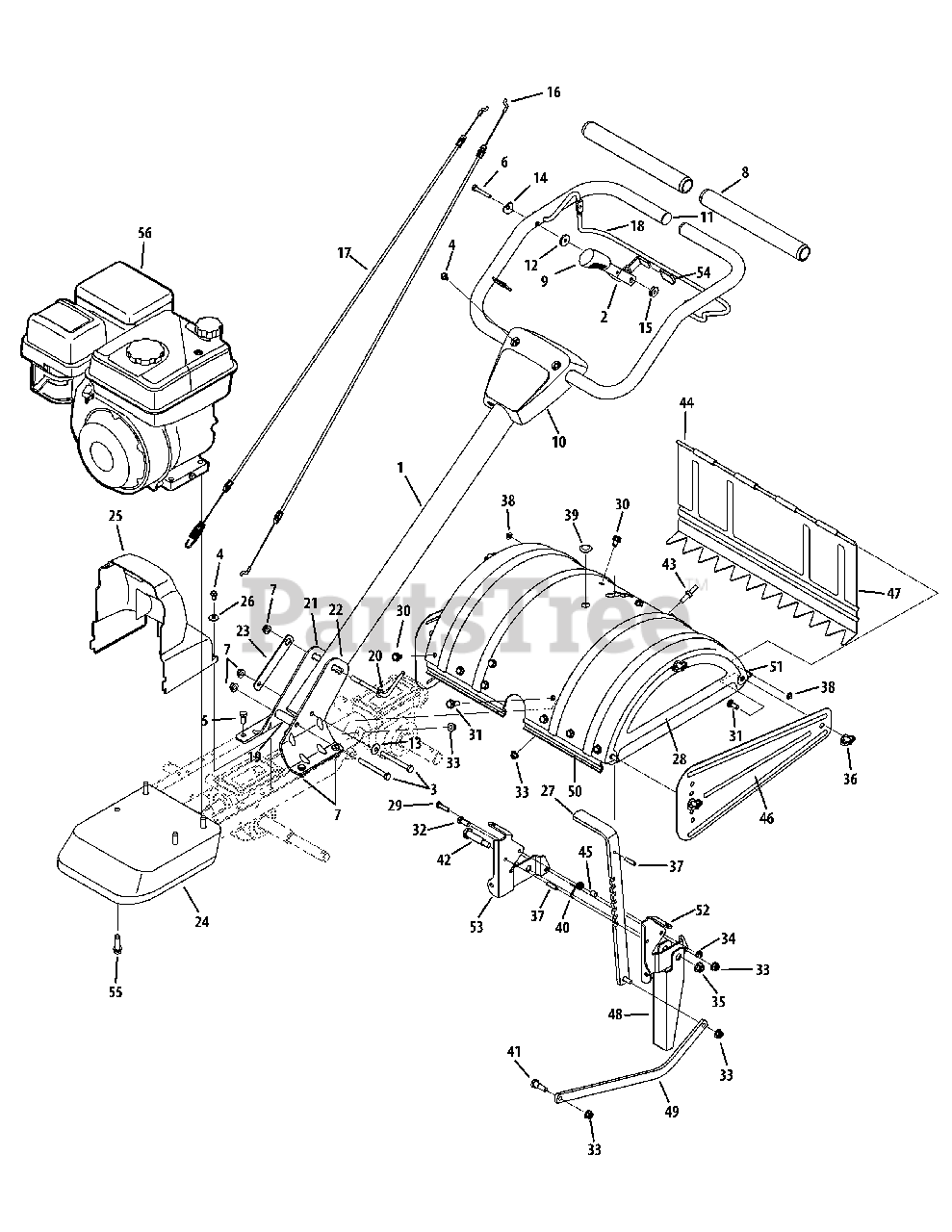

Handle & Tine Shield Parts Diagram

  • Title

1

MTD 649-04098A-4044

Upper Handle Assembly
(Superseded to 649-04098B-4044)

$100.99

$

Usually ships in 3-6 days

0

2

MTD 686-04135-4044

Reverse Handle Assembly

$25.99

$

In Stock, only 1 left!

0

3

MTD 710-0189

Hex Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

4

MTD 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3288

Hex Lock Screw, 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 720-0278A

Foam Grip, .970 x 11.0

$22.99

$

In Stock, only 3 left!

0

9

MTD 731-04735

Selector Handle Grip

$20.99

$

In Stock, only 1 left!

0

10

MTD 731-06253A

Handle Cover, 400
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

11

MTD 735-04105

End Plug
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

12

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

13

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

15

MTD 738-0440

Shoulder Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

16

MTD 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

17

MTD 946-04506

Forward Cable

$36.99

$

In Stock, Qty 7

0

18

MTD 747-04789-0637

Bail
(Superseded to 747-04789A-0637)

$29.99

$

Usually ships in 3-6 days

0

19

MTD 750-0885A

Spacer, .322 x .625 x 2.00

$11.99

$

Usually ships in 3-6 days

0

20

MTD 786-0340B

Handle Adjustment Crank

$19.99

$

Usually ships in 3-6 days

0

21

MTD 786-04344-4044

RH Handle Bracket

$34.99

$

Usually ships in 3-6 days

0

22

MTD 786-04345-4044

LH Handle Bracket

$34.99

$

Usually ships in 3-6 days

0

23

MTD 786-04346

Retainer Bracket

$10.99

$

Usually ships in 3-6 days

0

24

MTD 786-04360-4044

Front Bumper

$51.99

$

Usually ships in 3-6 days

0

25

MTD 731-06529

Belt Cover

$44.99

$

Usually ships in 3-6 days

0

26

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, only 3 left!

0

27

MTD 786-04356-4044

Depth Adjustment Bracket
(Superseded to 786-04356A-4044)

$34.99

$

Usually ships in 3-6 days

0

28

MTD 686-0044B-4044

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

29

MTD 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

30

MTD 710-0604A

Hex Washer Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0421

Wing Nut w/ Bell Washer, 5/16-18

$6.99

$

In Stock, Qty 20+

0

37

MTD 715-0108

Spring Pin, 1/4 x 1.00

$4.99

$

In Stock, Qty 15

0

38

MTD 926-0106

Cap Speed Nut, 1/4
(Superseded to 726-0106)

$

$

Not available

39

MTD 731-05512

Deck Hole Plug

$3.99

$

Usually ships in 3-6 days

0

40

MTD 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 9

0

41

MTD 738-04320

Shoulder Screw, 5/16-18 x .405 x .345

$5.49

$

In Stock, only 2 left!

0

42

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

43

MTD 938-0849

Hex Screw, 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

44

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

45

MTD 750-05349

Round Spacer, .370 x .260 x .410

$3.99

$

Usually ships in 3-6 days

0

46

MTD 786-0090A-4044

Side Shield

$36.99

$

Usually ships in 3-6 days

0

47

MTD 786-0113A-4044

Rear Tine Shield

$83.99

$

Usually ships in 3-6 days

0

48

MTD 786-04092-4044

Stop Reverse Arm

$25.99

$

Usually ships in 3-6 days

0

49

MTD 786-04104-4044

Depth Drag Bar

$33.99

$

Usually ships in 3-6 days

0

50

MTD 786-04352A-4044

Tine Shield Mount Bracket

$32.99

$

Usually ships in 3-6 days

0

51

MTD 786-04355A-4044

Tine Shield

$76.99

$

Usually ships in 3-6 days

0

52

MTD 786-04363-4044

LH Tail Bracket

$23.99

$

Usually ships in 3-6 days

0

53

MTD 786-04364-4044

RH Tail Bracket

$23.99

$

Usually ships in 3-6 days

0

54

MTD 720-04173

Reverse Handle Grip
(Superseded to 920-04173)

$4.49

$

In Stock, only 3 left!

0

55

MTD 952Z170-T0B

Replacement Engine
(Superseded to 952Z170-AUC)

$747.99

$

Usually ships in 3-6 days

0
