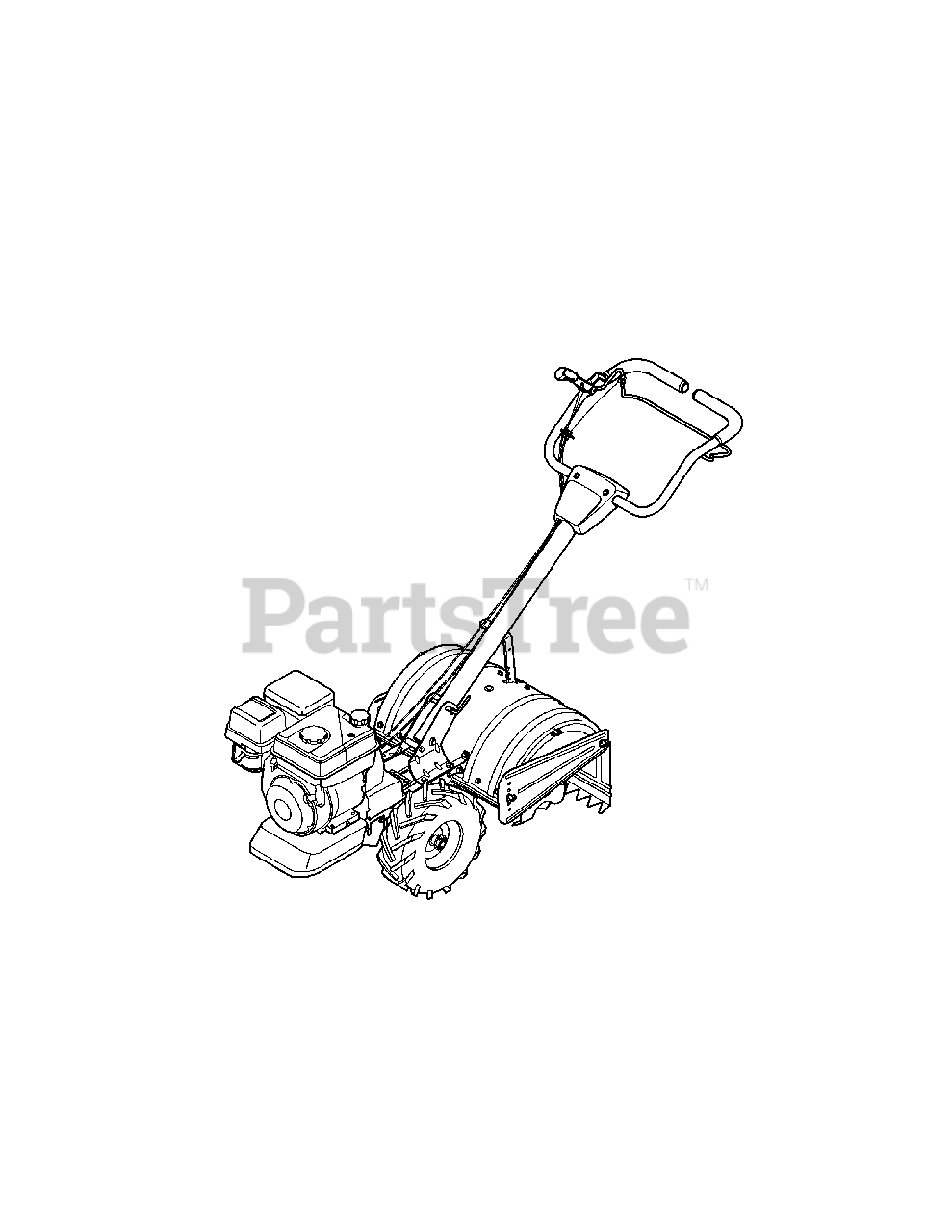

247.29930 (21AB40M1099) - Craftsman Tiller (2011) (Sears) .Quick Reference Parts Diagram

Tiller

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

NA

Pre Filter

$

$

Not available

MTD 951-10794

Air Filter

$14.99

$

In Stock, Qty 20+

0

MTD 951-10917

Fuel Cap
(Superseded to 951-10917B)

$16.99

$

In Stock, only 1 left!

0

MTD 1916657

Drive Belt (FWD)
(Superseded to 954-04090)

$20.99

$

Usually ships in 3-6 days

0

MTD 1916658

Drive Belt (REV)
(Superseded to 954-04091)

$18.99

$

In Stock, only 4 left!

0

MTD 946-04506

Clutch Cable (FWD)

$36.99

$

In Stock, Qty 7

0

MTD 946-04504

Clutch Cable (REV)

$33.99

$

In Stock, only 4 left!

0

MTD 642-04071-4044

Tines-Outer (LH)

$110.99

$

Usually ships in 3-6 days

0

MTD 642-04072-4044

Tines-Outer (RH)

$110.99

$

Usually ships in 3-6 days

0

NA

Tines-Inner (LH)

$

$

Not available

NA

Tines-Inner (RH)

$

$

Not available

NA

Rim

$

$

Not available

NA

Tire

$

$

Not available

MTD 934-04652

Wheel Assembly

$171.99

$

Usually ships in 3-6 days

0

MTD 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

NA

Handle Knob

$

$

Not available
