247.29930 (21AB40M1099) - Craftsman Tiller (2010) (Sears) Handle & Tine Shield Parts Diagram

Tiller

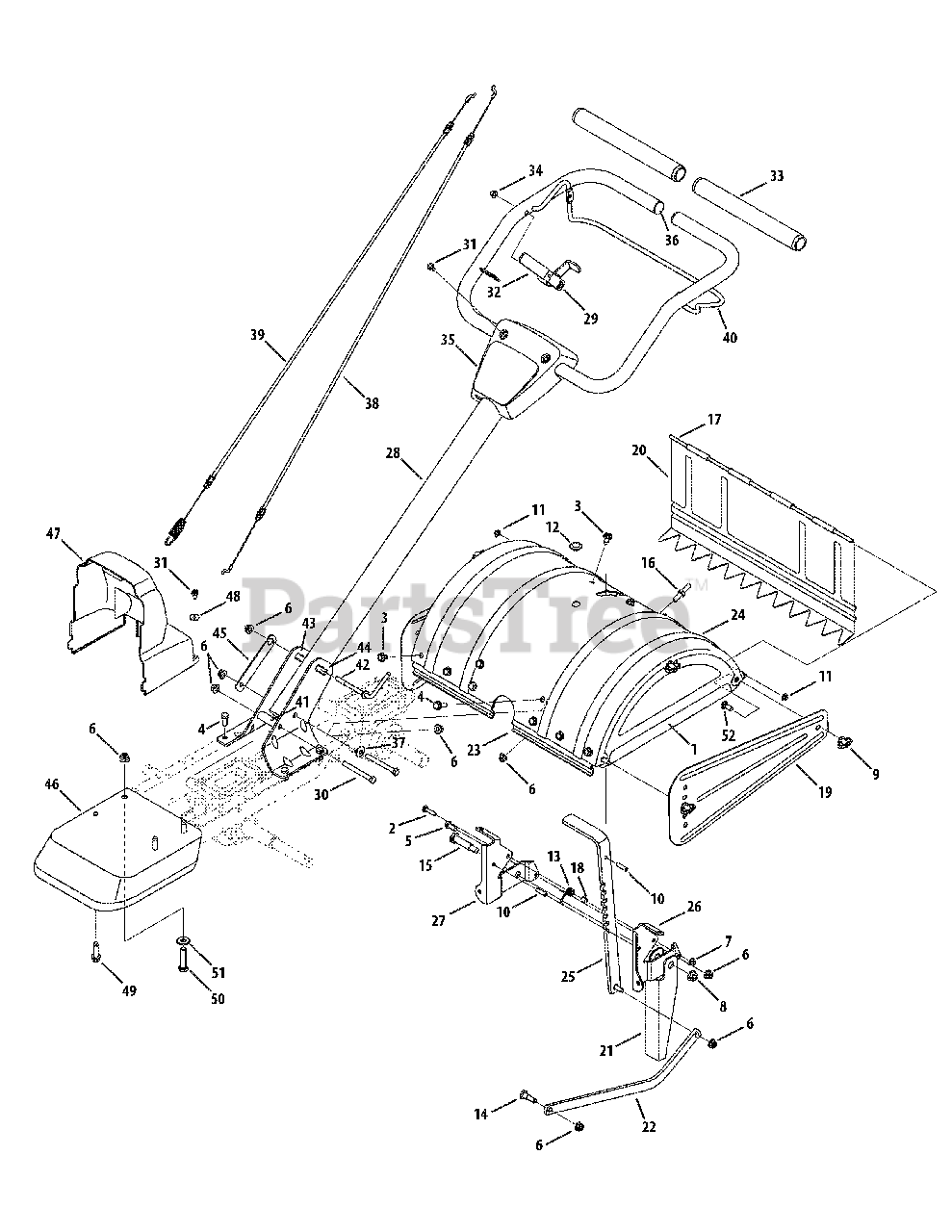

Handle & Tine Shield Parts Diagram

  • Title

1

MTD 686-0044B-0721

End Cover Assembly
(Superseded to 686-0044B-4044)

$84.99

$

Usually ships in 3-6 days

0

2

MTD 710-0597

Hex Head Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 14

0

3

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1238

Hex Head Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 715-0108

Spirol Pin

$4.99

$

In Stock, Qty 15

0

11

MTD 926-0106

Cap Nut, 1/4 Rod
(Superseded to 726-0106)

$

$

Not available

12

MTD 731-05512

Hole Plug

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-04320

Torsion Spring

$4.49

$

In Stock, Qty 9

0

14

MTD 738-04320

Shoulder Screw, .405 x .435 5/16-18

$5.49

$

In Stock, only 2 left!

0

15

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

16

MTD 938-0849

Stop Screw

$10.99

$

Usually ships in 3-6 days

0

17

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

18

MTD 750-05349

Spacer

$3.99

$

Usually ships in 3-6 days

0

19

MTD 786-0090A-0721

Side Shield
(Superseded to 786-0090A-4044)

$36.99

$

Usually ships in 3-6 days

0

20

MTD 786-0113A-0721

Rear Tine Shield
(Superseded to 786-0113A-4044)

$83.99

$

Usually ships in 3-6 days

0

21

MTD 786-04092-0721

Reverse Stop Arm
(Superseded to 786-04092-4044)

$25.99

$

Usually ships in 3-6 days

0

22

MTD 786-04104-0721

Drag Bar
(Superseded to 786-04104-4044)

$33.99

$

Usually ships in 3-6 days

0

23

MTD 786-04352A-0721

Tine Shield Mounting Bracket
(Superseded to 786-04352A-4044)

$32.99

$

Usually ships in 3-6 days

0

24

MTD 786-04355A-0721

Tine Shield
(Superseded to 786-04355A-4044)

$76.99

$

Usually ships in 3-6 days

0

25

MTD 786-04356-0721

Adjustable Depth Bar
(Superseded to 786-04356A-4044)

$34.99

$

Usually ships in 3-6 days

0

26

MTD 786-04363-0721

Tail Bracket, LH
(Superseded to 786-04363-4044)

$23.99

$

Usually ships in 3-6 days

0

27

MTD 786-04364-0721

Tail Bracket, RH
(Superseded to 786-04364-4044)

$23.99

$

Usually ships in 3-6 days

0

28

MTD 649-04054-0721

Upper Handle Assembly
(Superseded to 649-04054-4044)

$

$

Not available

29

MTD 686-04098-0721

Reverse Handle Assembly
(Superseded to 753-06955)

$

$

Not available

30

MTD 710-0189

Hex Head Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

31

MTD 710-0599

Self-Tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

32

MTD 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

33

MTD 720-0278A

Foam Handle Grip

$22.99

$

In Stock, only 3 left!

0

34

MTD 726-0135

Cap Nut, .3125 dia.

$6.99

$

In Stock, only 1 left!

0

35

MTD 731-06253

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

36

MTD 735-04105

Plug End
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

37

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

38

MTD 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

39

MTD 946-04506

Forward Cable

$36.99

$

In Stock, Qty 7

0

40

MTD 747-04789-0637

Clutch Bail
(Superseded to 747-04789A-0637)

$29.99

$

Usually ships in 3-6 days

0

41

MTD 750-0885A

Spacer, .322 x .625 x 2.00

$11.99

$

Usually ships in 3-6 days

0

42

MTD 786-0340A

Handle Crank
(Superseded to 786-0340B)

$19.99

$

Usually ships in 3-6 days

0

43

MTD 786-04344-0721

Handle Bracket, RH
(Superseded to 786-04344-4044)

$34.99

$

Usually ships in 3-6 days

0

44

MTD 786-04345-0721

Handle Bracket, LH
(Superseded to 786-04345-4044)

$34.99

$

Usually ships in 3-6 days

0

45

MTD 786-04358

Retainer Nut Bracket

$10.99

$

Usually ships in 3-6 days

0

46

MTD 786-04360-0721

Front Bumper
(Superseded to 786-04360-4044)

$51.99

$

Usually ships in 3-6 days

0

47

MTD 731-06529

Belt Cover

$44.99

$

Usually ships in 3-6 days

0

48

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, only 3 left!

0

49

MTD 710-0502A

SEMS Screw, 3/8-16

$6.99

$

In Stock, only 2 left!

0

50

MTD 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

51

MTD 736-04193

Bell Washer, .827 x .331 x .098

$6.99

$

In Stock, only 1 left!

0
