247.29922 (21A-344E299) - Craftsman Tiller (2010) (Sears) Handle Assembly Parts Diagram

Tiller

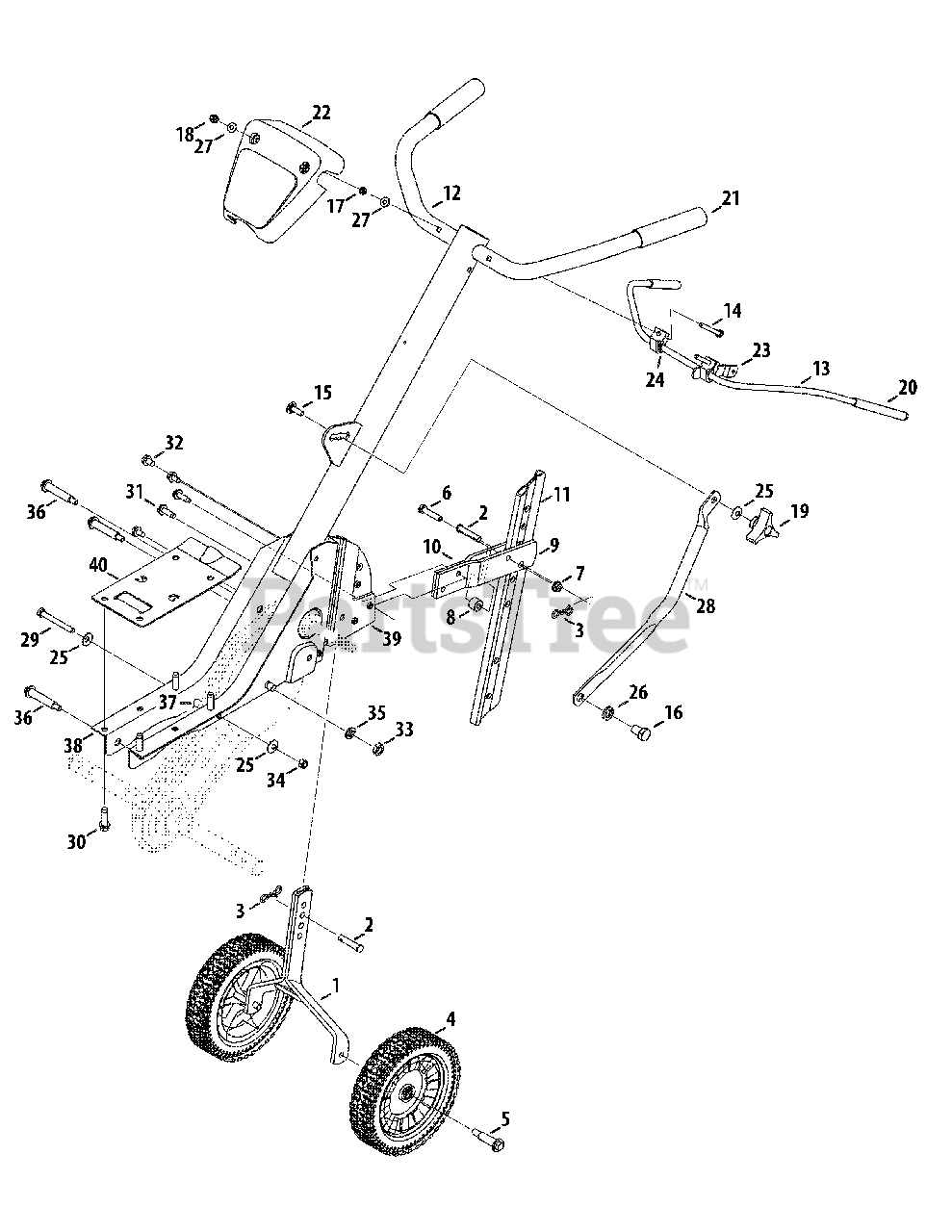

Handle Assembly Parts Diagram

  • Title

1

MTD 686-0081A-0637

Wheel Bracket Assembly

$88.99

$

In Stock, only 1 left!

0

2

MTD 911-0415

Clevis Pin, .375 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

3

MTD 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

4

MTD 734-04547

Complete Wheel Assy. 8 x 1.75

$45.99

$

Usually ships in 3-6 days

0

5

MTD 738-0929

Shoulder Screw, .496 x 1.445 3/8-16

$7.99

$

In Stock, only 2 left!

0

6

MTD 710-0805

Hex Head Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, only 4 left!

0

8

MTD 750-0890

Spacer, .325 ID x .75 OD x .520

$6.99

$

In Stock, Qty 6

0

9

MTD 786-0003-0637

Tail Bracket, LH

$23.99

$

Usually ships in 3-6 days

0

10

MTD 786-0004-0637

Tail Bracket, RH

$35.99

$

Usually ships in 3-6 days

0

11

MTD 786-0005-0637

Depth Bar

$39.99

$

In Stock, only 1 left!

0

12

MTD 649-04040-0721

Complete Handle Assembly
(Superseded to 649-04040-4044)

$130.99

$

Usually ships in 3-6 days

0

13

MTD 686-0083-0637

Clutch Bail

$50.99

$

Usually ships in 3-6 days

0

14

MTD 710-0641

Hex Head Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

15

MTD 710-1236

Carriage Screw, 5/16-18 x 1.00

$6.99

$

In Stock, only 4 left!

0

16

MTD 710-3194

Hex Head Screw, 1/2-20 x .750

$6.99

$

In Stock, only 1 left!

0

17

MTD 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

18

MTD 912-0442

Nut, 1/4-20, Lock
(Superseded to 712-0442)

$

$

Not available

19

MTD 720-0195

Handle Knob

$15.99

$

Usually ships in 3-6 days

0

20

MTD 720-0269

Grip, Clutch Bail

$4.99

$

In Stock, only 1 left!

0

21

MTD 720-0274

Grip, Handle

$11.99

$

In Stock, Qty 11

0

22

MTD 731-06253A

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

23

MTD 931-1645A

Clutch Bail Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

24

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

25

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

27

MTD 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

28

MTD 749-1401A-0721

Handle Brace
(Superseded to 749-1401A-4044)

$50.99

$

Usually ships in 3-6 days

0

29

MTD 710-0176

Hex Head Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

30

MTD 710-0502A

SEMS Screw, 3/8-16

$6.99

$

In Stock, only 2 left!

0

31

MTD 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-0604A

Self-Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

34

MTD 912-0384

Nylon Hex Lock Nut, 5/16-18

$6.99

$

In Stock, only 3 left!

0

35

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

36

MTD 738-0934

Shoulder Screw, .475 x 2.11 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

37

MTD 750-0470

Spacer, .47 OD x .96

$6.99

$

Usually ships in 3-6 days

0

38

MTD 786-0138A-0721

Frame, RH
(Superseded to 786-0138A-4044)

$102.99

$

Usually ships in 3-6 days

0

39

MTD 786-0139A-0721

Frame, LH
(Superseded to 786-0139A-4044)

$101.99

$

Usually ships in 3-6 days

0

40

MTD 786-0145A-0721

Engine Mounting Plate
(Superseded to 786-0145A-4044)

$22.99

$

Usually ships in 3-6 days

0
