247.290000 (13B226JD099) - Craftsman R1000 Rear-Engine Riding Mower (2014) Brake Pedal Assembly Parts Diagram

R1000 Rear-Engine Riding Mower

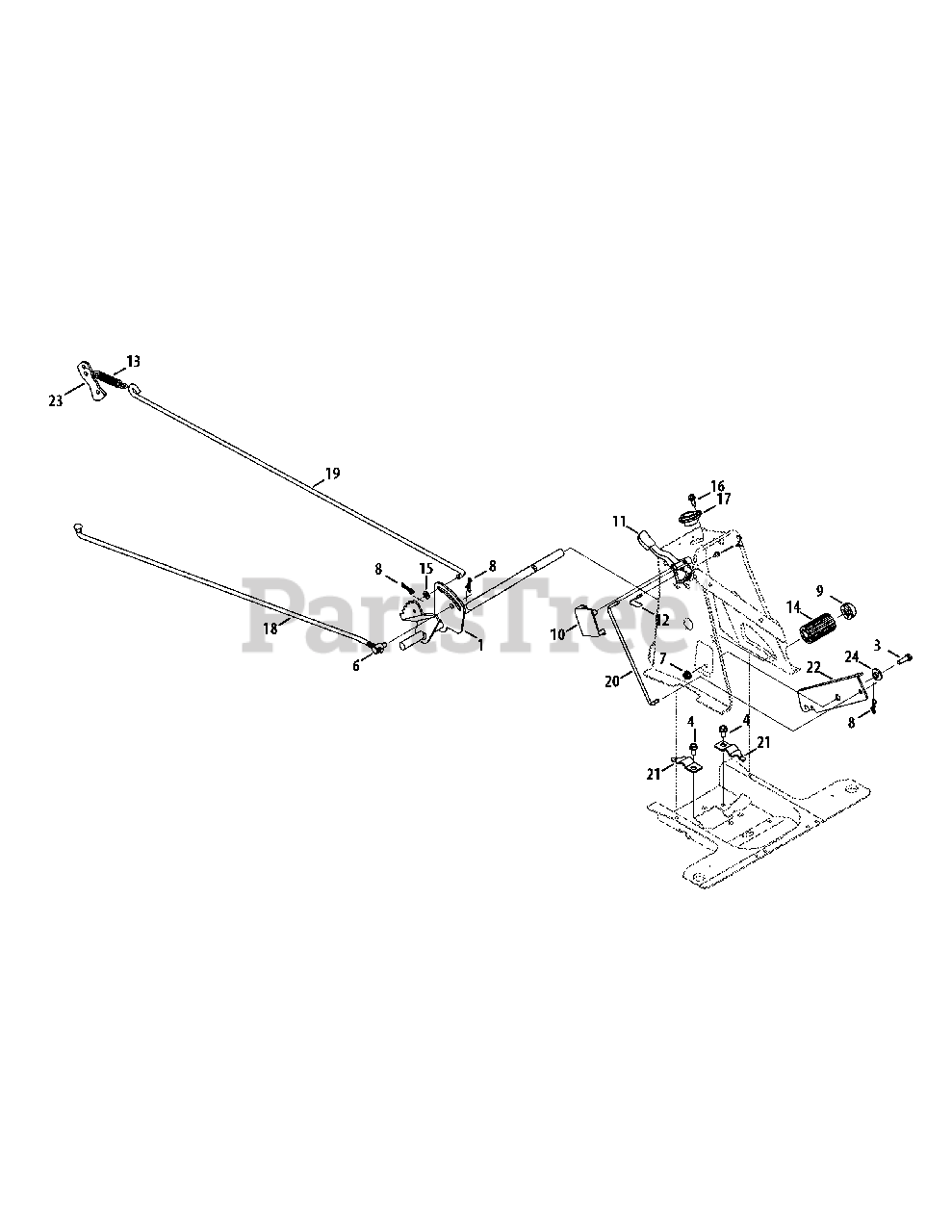

Brake Pedal Assembly Parts Diagram

  • Title
1

MTD 683-05017-0637

Brake Pedal Assembly
(Superseded to 683-05017B-0637)

$42.99

$

Usually ships in 3-6 days

0

2

MTD 910-0224

Screw, #10-16:0.500

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0376

Hex Head Scerw, 5/16-18:1.00

$3.99

$

In Stock, Qty 5

0

4

MTD 710-04484

Tap Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3008

Hex Head Screw, 5/16-18:.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 711-06103

Ferrule 3/8-24 X .375 Dia.

$4.49

$

In Stock, Qty 11

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, only 4 left!

0

8

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

9

MTD 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

10

MTD 731-08656A

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 12

0

11

MTD 731-08743B

Speed Lever, 6-SPEED

$7.49

$

In Stock, Qty 20+

0

12

MTD 732-04937

Shift Spring

$3.99

$

In Stock, only 1 left!

0

13

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

In Stock, only 1 left!

0

14

MTD 735-04279

Foot Pad, 2.5" LG.

$8.99

$

Usually ships in 3-6 days

0

15

MTD 936-0264

Flat Washer, .330x.630x.064

$6.99

$

In Stock, only 3 left!

0

16

MTD 738-04184A

Shoulder Screw, .368 X.113, 1/4-20

$6.99

$

In Stock, Qty 11

0

17

MTD 741-0356A

Steering Col. Bearing, .880 ID X 1.36

$7.49

$

In Stock, only 3 left!

0

18

MTD 747-05506

Variable Speed Control Rod

$22.99

$

Usually ships in 3-6 days

0

19

MTD 747-06033A

Brake Rod

$18.99

$

Usually ships in 3-6 days

0

20

MTD 747-06015

Speed Selector Control Rod

Note: 4/3/14 & Before

$12.99

$

Usually ships in 3-6 days

0

20

MTD 747-06449

Speed Selector Control Rod

Note: 4/3/14 & After

$14.99

$

Usually ships in 3-6 days

0

21

MTD 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

22

MTD 783-08116A-0637

Speed Latch Bracket
(Superseded to 783-08116C-0637)

Note: 1/27/14 & Before

$10.99

$

Usually ships in 3-6 days

0

22

MTD 683-05157-0637

Speed Latch Bracket

Note: 1/27/14 & After

$9.49

$

In Stock, only 1 left!

0

23

MTD 717-0772B

Brake Arm Lever

$12.99

$

Usually ships in 3-6 days

0
