247.289841 (14AW94PK099) - Craftsman PGT9000 Garden Tractor (2011) (Sears) Seat & Fender Parts Diagram

PGT9000 Garden Tractor

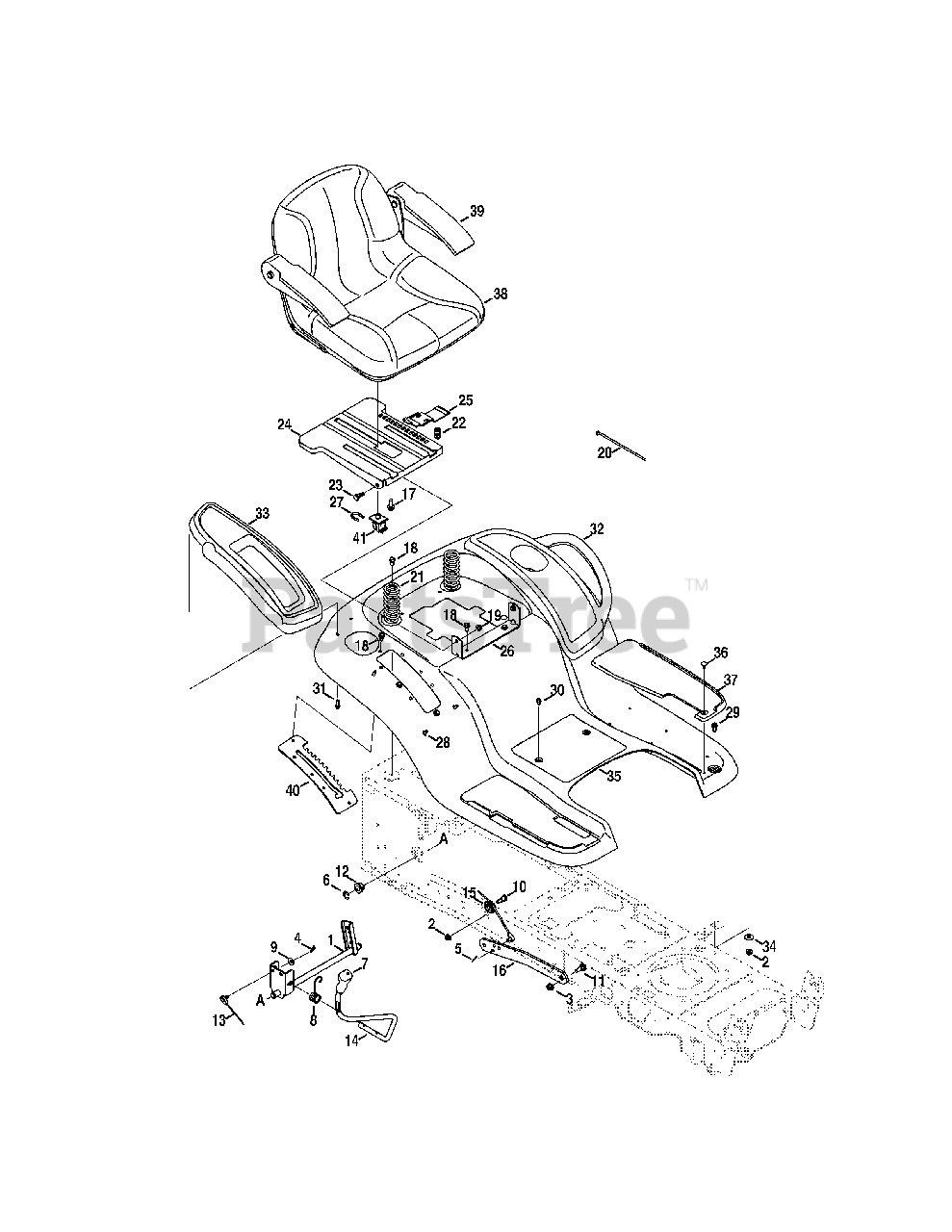

Seat & Fender Parts Diagram

  • Title

1

MTD 683-04301-0637

Lift Shaft Assembly

$

$

Not available

2

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

MTD 914-0104

Cotter Pin, .072 DIA. x 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

6

MTD 716-0106A

E-Ring, .625 DIA. SHAFT

$5.49

$

In Stock, only 2 left!

0

7

MTD 720-04150

Handle Grip

$

$

Not available

8

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

9

MTD 736-0105

Spring Washer, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

10

MTD 738-0138A

Shoulder Screw, .437 x .470:5/16-18

$6.99

$

In Stock, only 2 left!

0

11

MTD 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

12

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

13

MTD 746-0968

Lift Cable, 16.16 LG

$19.99

$

In Stock, Qty 20+

0

14

MTD 747-04962A

Lift Handle

$37.99

$

In Stock, only 1 left!

0

15

MTD 756-04331

Pulley Roller Cable

$6.99

$

In Stock, Qty 13

0

16

MTD 783-05546A-0637

Lift Arm

$20.99

$

In Stock, only 2 left!

0

17

MTD 710-04482

Hex Head Flange, 3/8-16:.875

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-04484

Taptite Screw, Lock Washer, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-3004A

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

21

MTD 732-04849

Compression Spring, 1.71 x 3.735 x .238

$13.99

$

In Stock, only 2 left!

0

22

MTD 732-04563

Compression Spring, .68 x 1.065 x .055

$5.49

$

In Stock, Qty 20+

0

23

MTD 938-0296

Shoulder Screw, .437 x .268:5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

24

MTD 783-06049-0691

Seat Mounting Bracket
(Superseded to 783-06049-0637)

$68.99

$

Usually ships in 3-6 days

0

25

MTD 783-06050

Seat Adjustment Lever

$10.99

$

Usually ships in 3-6 days

0

26

MTD 783-06088-0691

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

In Stock, only 3 left!

0

27

MTD 783-06448

Switch Retainer Clip

$5.99

$

In Stock, only 3 left!

0

28

MTD 710-04187

Hi-Lo Screw, Lock Washer, 1/4-15:0.50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

29

MTD 710-0451

Carriage Bolt, 5/16-18:.750

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0599

Taptite Screw, Lock Washer, 1/4-20:0.500

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0895

Hi-Lo Screw, Lock Washer, 1/4-15:0.750

$6.49

$

In Stock, Qty 10

0

32

MTD 731-05837

LH Fender Cover

$

$

Not available

33

MTD 731-06754

RH Fender Cover

$44.99

$

Usually ships in 3-6 days

0

34

MTD 736-3078

Flat Washer, .344 x 1.00 x .063 HDN

$4.49

$

In Stock, Qty 20+

0

35

MTD 783-06118-0691

Fender

$391.99

$

Usually ships in 3-6 days

0

36

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 15

0

37

MTD 735-04137

LH Foot Pad

$19.99

$

Usually ships in 3-6 days

0

37

MTD 735-04139

RH Foot Pad

$

$

Not available

38

MTD 757-04128

Seat
(Superseded to 757-05236)

$267.99

$

Usually ships in 3-6 days

0

39

MTD 957-04134

Armrests
(Superseded to 759-04252)

$157.99

$

Usually ships in 3-6 days

0

40

MTD 783-06181-0637

Lift Bracket

$

$

Not available

41

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 4 left!
