247.289800 (13AR91PS099) - Craftsman PYT9000 Yard Tractor (2010) (Sears) Engine Accessories Parts Diagram

PYT9000 Yard Tractor

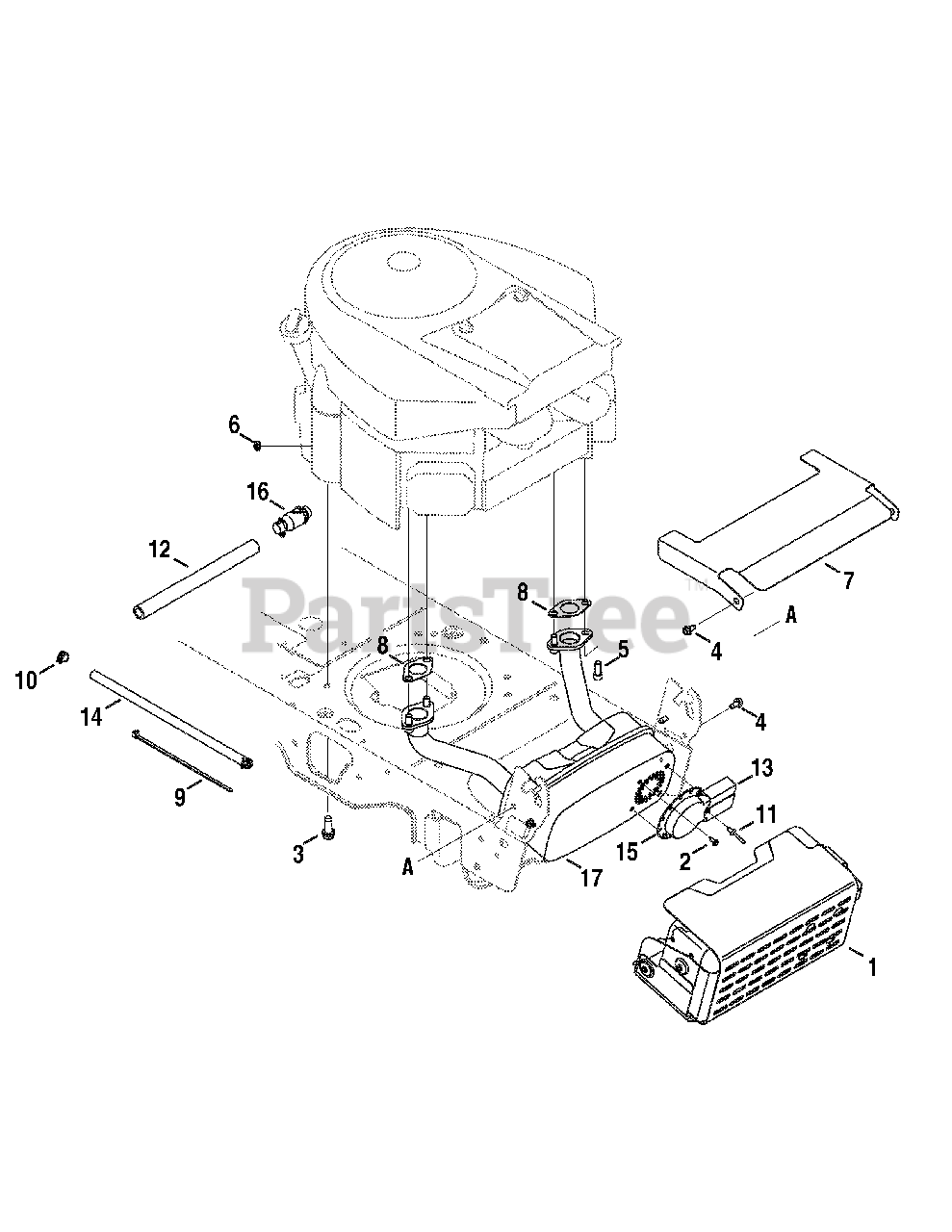

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Mulffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, Indented Washer, #8-18:0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Taptite Screw, Indented Washer, 3/8-16:1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0599

Taptite Screw, Indented Washer, 1/4-20:0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Socket Head Screw, 5/16-18:.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD 783-06378A

Heat Shield

$28.99

$

Usually ships in 3-6 days

0

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0205

Hose Clamp, .490 DIA.

$3.99

$

In Stock, Qty 20+

0

11

MTD 728-04000

Rivet, .188 DIA X .300 L

$6.99

$

In Stock, Qty 7

0

12

MTD 751-3141-14

Oil Drain Extension Hose

$11.99

$

In Stock, Qty 6

0

13

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

14

MTD 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

15

MTD 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

16

MTD 951-10517A

Oil Drain

$24.99

$

Usually ships in 3-6 days

0

17

MTD 751-10542A

Muffler Deflector
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0
