247.289330 (17AK9TKR099) - Craftsman Revolution Zero-Turn Mower (2009) (Sears) Seat, Fender & Deck Lift Parts Diagram

Revolution Zero-Turn Mower

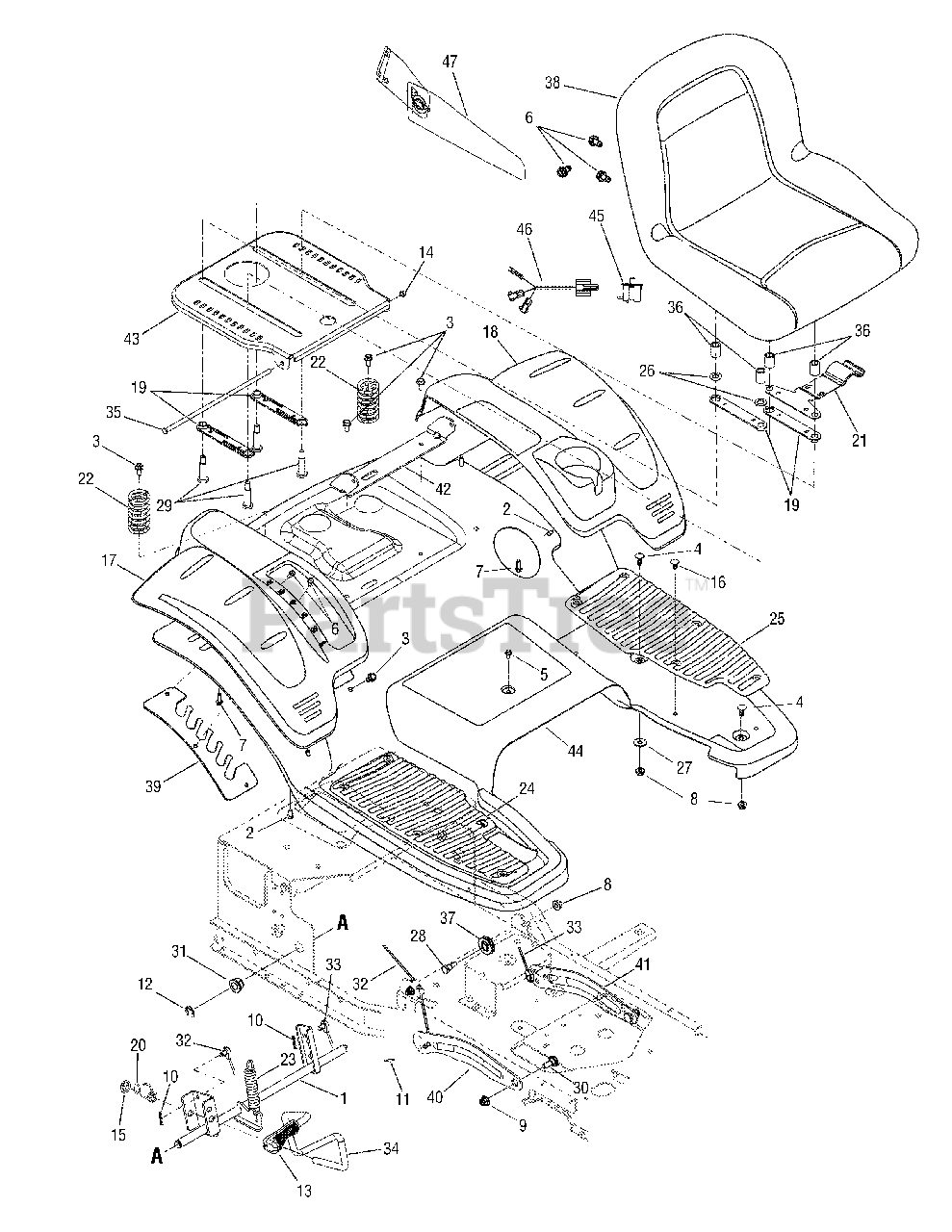

Seat, Fender & Deck Lift Parts Diagram

  • Title

1

MTD 647-04095A-0637

Shaft, Lift

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-04187

Screw, Hex Wash Hd. H/L, 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

3

MTD 710-04484

Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0451

Screw, Carriage, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1260A

Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0895

Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

8

MTD 712-04063

Nut, Hex Flange Insert Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Hex Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

10

MTD 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

MTD 914-0111

Pin, Cotter, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

12

MTD 716-0106A

E-ring, .625 Shaft

$5.49

$

In Stock, only 2 left!

0

13

MTD 720-0311

Grip, Handle

$15.99

$

In Stock, only 2 left!

0

14

MTD 726-0135

Nut, Speed, .3125 Dia.

$6.99

$

In Stock, only 1 left!

0

15

MTD 726-0221

Nut, Speed, .5

$6.49

$

In Stock, only 1 left!

0

16

MTD 726-3046

Clip, Ratchet

$3.99

$

In Stock, Qty 16

0

17

MTD 731-06836

Cover, Rear Fender RH

$

$

Not available

18

MTD 731-06835

Cover, Rear Fender LH

$

$

Not available

19

MTD 731-06208

Spacer, Seat Adjust

$

$

Not available

20

MTD 732-04459

Spring, Lift Handle Torsion

$

$

Not available

21

MTD 732-04491

Spring, Seat Adjust

$

$

Not available

22

MTD 732-04508

Spring, Compression, 1.71 x 3.25 x .23

$7.99

$

Usually ships in 3-6 days

0

23

MTD 732-0826A

Spring, Extension, .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

24

MTD 735-04078A

Pad, Foot RH

$

$

Not available

25

MTD 735-04109

Pad, Foot LH

$18.99

$

In Stock, only 1 left!

0

26

MTD 936-0192

Washer, Flat, .535 x .93 x .09

$4.49

$

In Stock, Qty 18

0

27

MTD 736-3078

Washer, Flat, .344 x 1.0 x .063 HT

$4.49

$

In Stock, only 4 left!

0

28

MTD 738-0138A

Bolt, Shoulder, .496 x 2.5:3/8-16

$6.99

$

Usually ships in 3-6 days

0

29

MTD 938-0373

Bolt, Shoulder, .496 x 1.525:3/8-16

$9.49

$

In Stock, Qty 20+

0

30

MTD 738-04130

Bolt, Shoulder, .625 x .175:3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

31

MTD 941-0225

Bearing, Hex Flange,

$7.49

$

In Stock, Qty 20+

0

32

MTD 946-04546

Cable, Lift, 16.64 Lg

$22.99

$

Usually ships in 3-6 days

0

33

MTD 946-04436

Cable, Lift, 16.64 Lg

$24.99

$

Usually ships in 3-6 days

0

34

MTD 747-04701

Handle, Lift

$

$

Not available

35

MTD 747-04821

Rod, Seat, 5/16 x 11.62

$

$

Not available

36

MTD 750-04945

Spacer, .51 x .75 x 1.0

$6.99

$

Usually ships in 3-6 days

0

37

MTD 756-04331

Pulley, Roller

$6.99

$

In Stock, Qty 16

0

38

MTD 757-04104

Seat, High Back

$

$

Not available

39

MTD 783-04977A-0637

Plate, Deck Lift Index

$

$

Not available

40

MTD 783-04494B-0637

Arm, Deck Lift RH
(Superseded to 783-04494C-0637)

$21.99

$

In Stock, only 1 left!

0

41

MTD 783-04711B-0637

Arm, Deck Lift LH
(Superseded to 783-04711C-0637)

$24.99

$

Usually ships in 3-6 days

0

42

MTD 783-05816-0637

Bracket, Seat Pivot

$

$

Not available

43

MTD 783-05817-0637

Plate, Seat Mounting

$

$

Not available

44

MTD 783-05865A-0637

Fender, Rear

$

$

Not available

45

MTD 925-04040

Switch, Seat

$36.99

$

In Stock, only 2 left!

0

46

MTD 725-04658

Harness, Seat Switch Jumper
(Superseded to 725-04658A)

$

$

Not available

47

MTD 757-04040

Arm Rest, Seat

$227.99

$

Usually ships in 3-6 days

0
