247.289110 (13AN771S299) - Craftsman LT1500 Lawn Tractor (2010) (Sears) Hood & Dash Assembly Parts Diagram

LT1500 Lawn Tractor

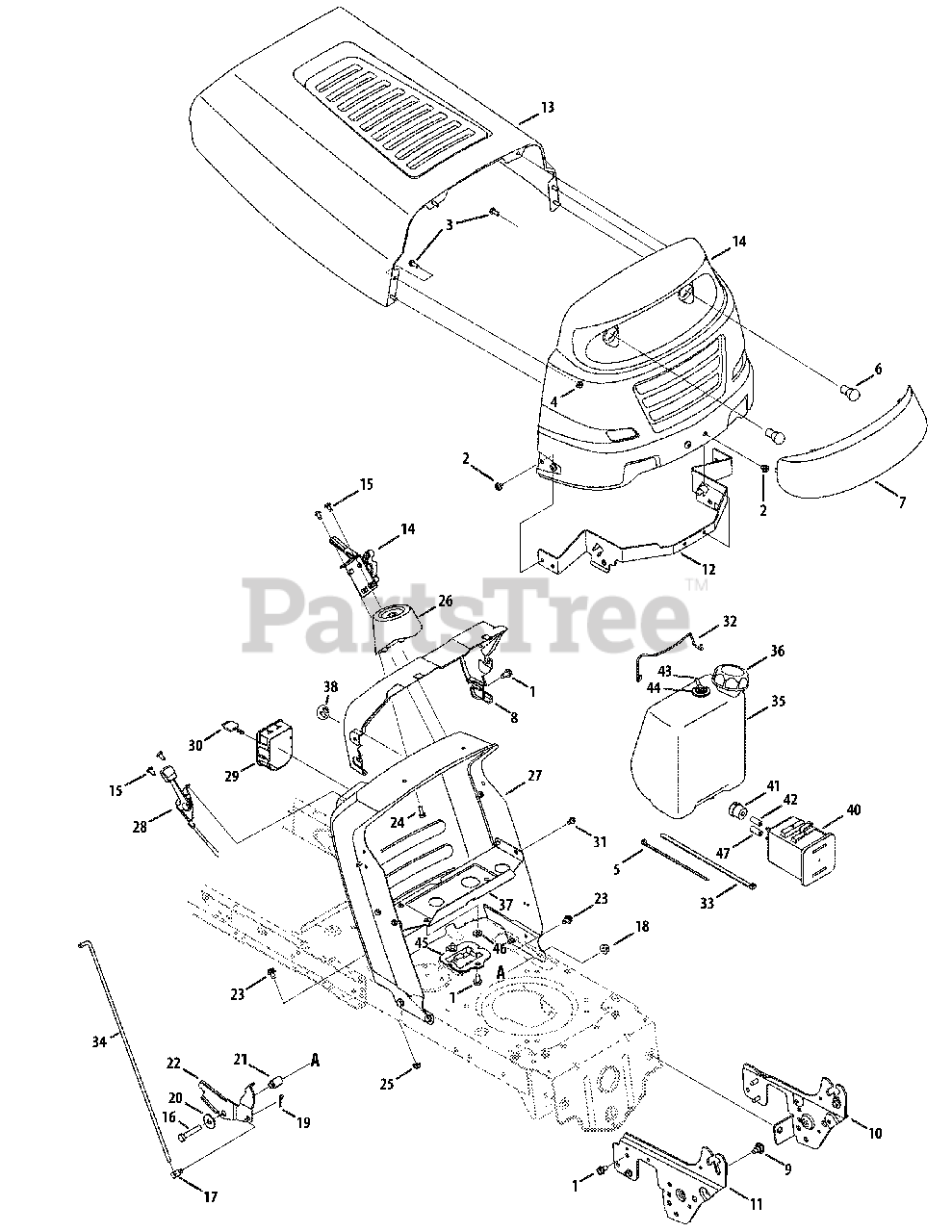

Hood & Dash Assembly Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Nut, Hex Flange Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

Lamp

$7.49

$

In Stock, Qty 5

0

7

MTD 731-04949A

Grill Lens, 1 Style

$26.99

$

In Stock, only 3 left!

0

8

MTD 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

9

MTD 738-04091A

Shoulder Screw, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

11

MTD 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

12

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

13

MTD 783-05684-4043

Hood Assembly, 1 Style

$180.99

$

Usually ships in 3-6 days

0

14

MTD 983-04216

Speed Selector, 7-Speed

$21.99

$

In Stock, only 1 left!

0

15

MTD 710-04483

Self-Tap Screw, 1/4-20

$6.99

$

Usually ships in 3-6 days

0

16

MTD 710-3144

Hex Head Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

17

MTD 711-0736

Ferrule, 1/4-20 x 1.00

$13.99

$

In Stock, only 1 left!

0

18

MTD 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 714-04040

Hair Pin Clip

$1.49

$

In Stock, Qty 20+

0

20

MTD 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

21

MTD 750-04465

Flange Spacer
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

22

MTD 783-04862

Speed latch

$

$

Not available

23

MTD 710-0604A

Self-Tap Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0895

Hex Screw, 1/4-15

$6.49

$

In Stock, Qty 10

0

25

MTD 712-04063

Nut, Hex Flange Ins. Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

27

MTD 783-04892B-0637

Dash

$139.99

$

Usually ships in 3-6 days

0

28

MTD 746-04364

Throttle/Choke Assembly

$48.99

$

In Stock, only 3 left!

0

29

MTD 725-04992

Key Switch Module
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 20+

0

30

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

31

MTD 710-0599

Screw, Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

32

MTD 683-04448-0637

Assembly Rod

$10.99

$

In Stock, Qty 13

0

33

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

34

MTD 747-04430

Speed Selector Control Rod

$21.99

$

Usually ships in 3-6 days

0

35

MTD 751-10782

1.36 Gallon CARB Fuel Tank
(Superseded to 951-04304B)

$111.99

$

Usually ships in 3-6 days

0

36

MTD 751-10947

Fuel Cap
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

37

MTD 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

38

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

39

MTD 783-05685-4043

Grill

$121.99

$

Usually ships in 3-6 days

0

40

MTD 751-10589

Carbon Cannister
(Superseded to 951-10589)

$72.99

$

Usually ships in 3-6 days

0

41

MTD 751-10590

Filter Vent
(Superseded to 951-10590)

$15.99

$

Usually ships in 3-6 days

0

42

MTD 751-10749

Low Perm Fuel Line 3/16 White

$0.99

$

Usually ships in 3-6 days

0

43

MTD 751-10441

Rollover Valve
(Superseded to 751-12118)

$35.99

$

In Stock, only 2 left!

0

44

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

45

MTD 751-10610

Cannister Bracket
(Superseded to 951-10610)

$23.99

$

Usually ships in 3-6 days

0

46

MTD 736-3008

Flat Washer, .344 x.750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

47

MTD 751-10750

Low Perm Fuel Line 7/32 Yellow

$1.49

$

Usually ships in 3-6 days

0
