247.289050 (13AL79SS099) - Craftsman LT2000 Lawn Tractor (2010) (Sears) Mower Deck 42-Inch Parts Diagram

LT2000 Lawn Tractor

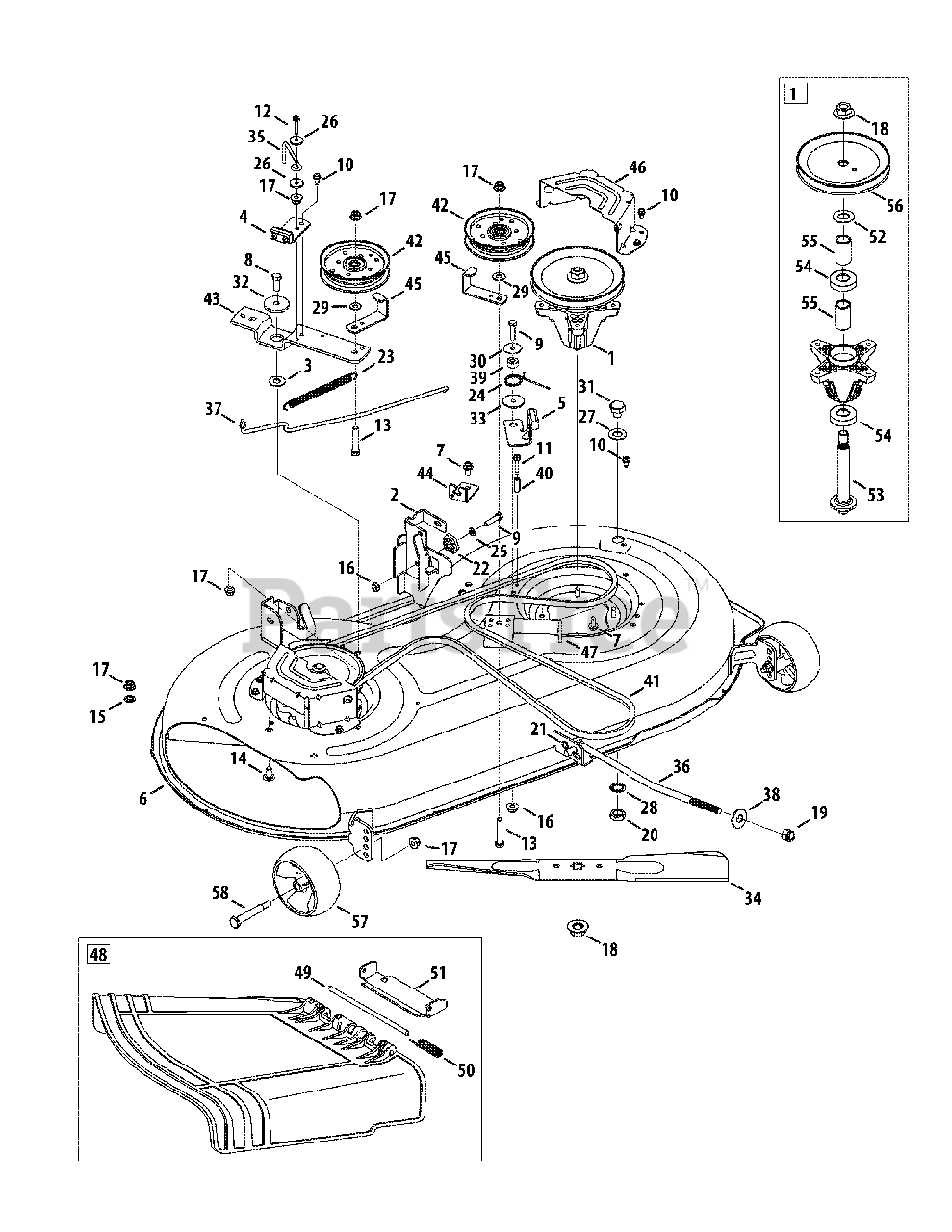

Mower Deck 42-Inch Parts Diagram

  • Title

1

MTD 918-04822A

Spindle Pulley Assembly
(Superseded to 918-04822B)

$121.99

$

Usually ships in 3-6 days

0

2

MTD 683-0254B-0637

Deck Hanger Bracket Assembly
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 936-0344

Wash, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

4

MTD 983-04511

Brake Assembly

$63.99

$

In Stock, Qty 20+

0

5

MTD 983-04525

Brake Assembly

$45.99

$

In Stock, Qty 20+

0

6

MTD 983-04572-0637

Deck
(Superseded to 983-04572A-0637)

$645.99

$

Usually ships in 3-6 days

0

7

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0514

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 2 left!

0

12

MTD 710-0809

Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

13

MTD 710-3144

Hex Head Screw, 3/8-16

$4.49

$

In Stock, only 4 left!

0

14

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Flangelock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

MTD 912-0641

Hex Nut, M16 - 1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

MTD 714-04043

Cotter Pin, Bow-Tie

$4.99

$

In Stock, Qty 20+

0

22

MTD 917-04074

Deck Adjuster Gear

$13.99

$

In Stock, Qty 19

0

23

MTD 932-0384

Extension Spring, .62 x 6.12

$14.99

$

In Stock, Qty 12

0

24

MTD 732-04727

Torsion Spring, 1.0 x 1.17

$

$

Not available

25

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

26

MTD 936-0176

Flat Washer, .265 x 9.38 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

27

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0225

Flat Washer, .5/8 Int. Tth.

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

30

MTD 736-0362

Flat Washer, .330 x 1.25 x .06

$4.49

$

In Stock, Qty 8

0

31

MTD 738-04146

Bolt Plug, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

32

MTD 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

33

MTD 738-04166

Shoulder Spacer, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

34

MTD 942-04308

Cutting Blade, 21.23": 2 in 1
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

35

MTD 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

36

MTD 747-04944B

Deck Lift Rod

$24.99

$

In Stock, Qty 6

0

37

MTD 747-05105

Brake Control Rod
(Superseded to 747-05105B)

$21.99

$

In Stock, Qty 5

0

38

MTD 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

39

MTD 750-0258

Spacer

$11.99

$

In Stock, only 1 left!

0

40

MTD 750-0566A

Spacer

$9.99

$

In Stock, only 1 left!

0

41

MTD 954-04060B

V-Type Belt, 96.5
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 18

0

42

MTD 756-04129B

Idler Pulley, 4.25 Diameter
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

43

MTD 783-05946

Idler Pivot Bracket

$38.99

$

In Stock, Qty 11

0

44

MTD 783-06243-0637

Deck Cable Engagement Bracket

$10.99

$

In Stock, only 2 left!

0

45

MTD 783-06368-0637

Belt Pulley Guard
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

46

MTD 783-06424A-0637

Deck Belt Cover

$10.99

$

In Stock, Qty 20+

0

47

MTD 783-06643-0637

Deck Support Bracket

$9.49

$

In Stock, only 1 left!

0

48

MTD 631-04460

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

49

MTD 711-04847A

Hinge Pin
(Superseded to 711-04847B)

$8.99

$

In Stock, Qty 8

0

50

MTD 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 9

0

51

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

52

MTD 936-0351

Flat Washer, .760 x 1.50
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

53

MTD 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

54

MTD 941-0919

Ball Bearing, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

55

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

56

MTD 956-1227

Spindle Pulley

$26.99

$

In Stock, only 4 left!

0

57

MTD 734-04155

Deck Wheel, 5" Dia. Ball

$20.99

$

In Stock, Qty 20+

0

58

MTD 938-3056

Shoulder Bolt, 3/8-16

$9.49

$

In Stock, Qty 20+

0
