247.289020 (13AJ77SS099) - Craftsman LT2000 Lawn Tractor (2010) (Sears) Transmission Drive Assembly Parts Diagram

LT2000 Lawn Tractor

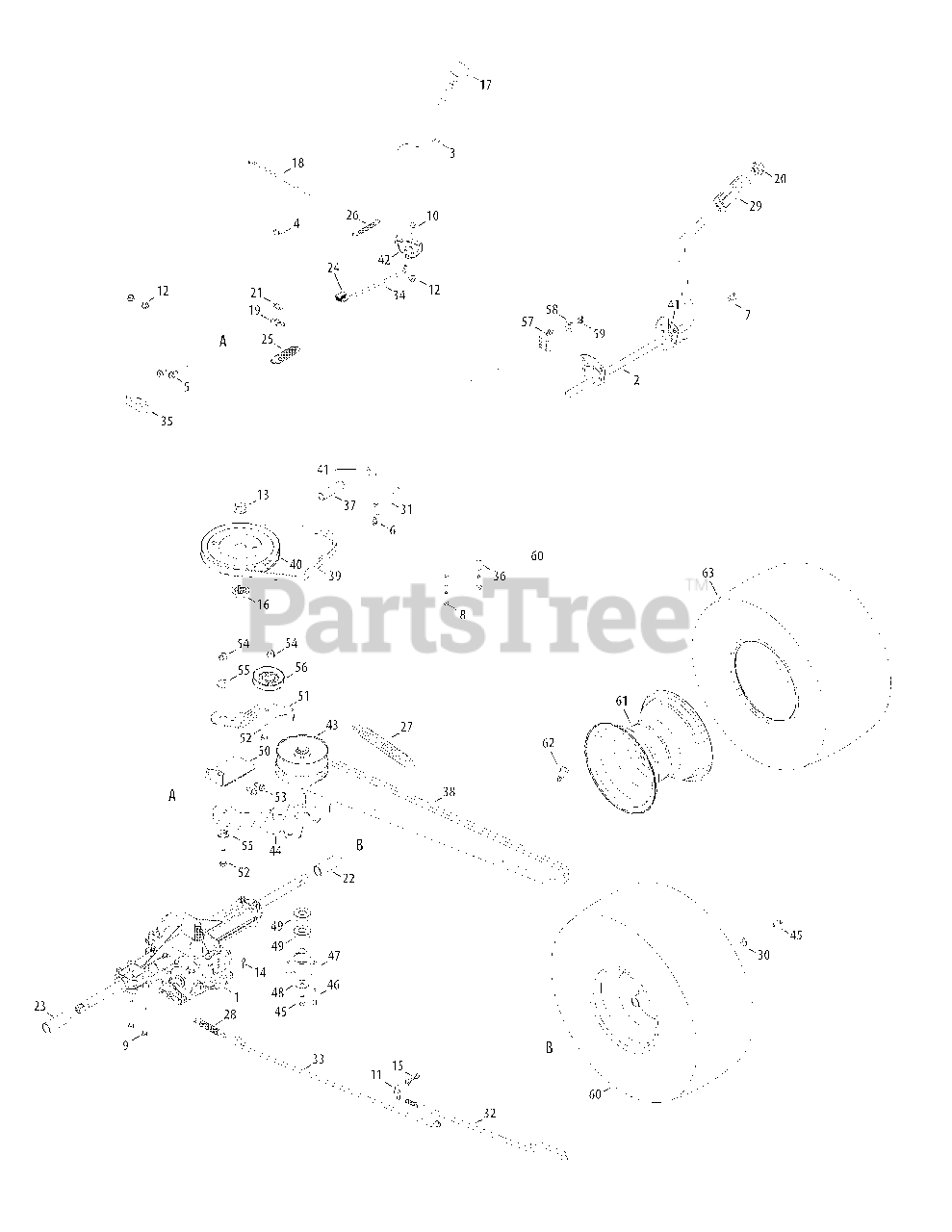

Transmission Drive Assembly Parts Diagram

  • Title

1

MTD 918-04566

Transmission Drive Assembly
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

MTD 647-04034C-0637

Pedal Assembly
(Superseded to 647-04034E-0637)

$86.99

$

In Stock, only 1 left!

0

3

MTD 647-04035

Shaft Lever Assembly

$37.99

$

Usually ships in 3-6 days

0

4

MTD 710-0227

Screw, 8-18:0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0809

Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

9

MTD 710-1266

Hex Screw, 5/16-18 x .625

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

MTD 911-04075A

Ferrule, 3/8-24 X .375 DIA.

$11.99

$

In Stock, only 3 left!

0

12

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

13

MTD 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

14

MTD 914-0209

Cotter Pin INT- .125 DIA

$3.99

$

In Stock, only 2 left!

0

15

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

16

MTD 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, Qty 20+

0

17

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

18

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

20

MTD 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

21

MTD 926-0320

Plate Insulator Nut

$6.99

$

In Stock, Qty 11

0

22

MTD 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

23

MTD 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

24

MTD 731-06894

Shift Bearing Plate

$6.49

$

In Stock, only 1 left!

0

25

MTD 732-04306

Spring Extension, .80 OD x 3.28 LG

$10.99

$

In Stock, only 1 left!

0

26

MTD 732-04488

Spring Extension, .38 OD x 3.25 LG

$6.49

$

In Stock, only 3 left!

0

27

MTD 732-0459C

Spring Extension, .94 OD x 6.74 LG

$18.99

$

In Stock, only 3 left!

0

28

MTD 732-0716D

Spring Extension, .59 OD x 4.00 LG

$13.99

$

In Stock, only 1 left!

0

29

MTD 735-0239

Foot Pad, 4.0 LONG
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

30

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

31

MTD 747-04969

Belt Keeper Rod

$6.99

$

In Stock, only 1 left!

0

32

MTD 747-05186

Variable Speed Control Rod

$15.99

$

In Stock, only 1 left!

0

33

MTD 747-05188

Brake Rod

$12.99

$

In Stock, only 1 left!

0

34

MTD 747-05243

Shift Rod, 46"

$11.99

$

In Stock, only 3 left!

0

35

MTD 948-0334

Spacer, T-Axle

$10.99

$

In Stock, only 1 left!

0

36

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

37

MTD 750-0802

Spacer, .640 ID x .76 OD x 2.63

$6.99

$

Usually ships in 3-6 days

0

38

MTD 954-04249

V Belt, 5L: 70.90 POLY
(Superseded to 954-04249A)

$45.99

$

In Stock, Qty 20+

0

39

MTD 954-04265

V Belt, 5L: 33.8 POLY

$30.99

$

In Stock, only 1 left!

0

40

MTD 756-04432

Trans. Pulley

$21.99

$

Usually ships in 3-6 days

0

41

MTD 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

42

MTD 783-04595A

Shaft Adjust Bracket

$10.99

$

In Stock, only 4 left!

0

43

MTD 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

44

MTD 683-04206

Bracket Assembly
(Superseded to 753-05147)

$32.99

$

In Stock, only 2 left!

0

45

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 1 left!

0

47

MTD 718-04261

Bearing Cup

$20.99

$

Usually ships in 3-6 days

0

48

MTD 736-0362

Flat Washer, .330 x 1.25 x .06:HT

$4.49

$

In Stock, Qty 7

0

49

MTD 941-0600

Ball Bearing, 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

50

MTD 683-04176A

Transmission Bracket Assembly
(Superseded to 783-04567B)

$8.99

$

Usually ships in 3-6 days

0

51

MTD 753-05147

Idler Bracket Assembly

$32.99

$

In Stock, only 2 left!

0

52

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

53

MTD 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

54

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

55

MTD 938-0347

Shoulder Spacer, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

56

MTD 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

57

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 14

0

58

MTD 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

59

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

60

MTD 634-04641-0961

Wheel Assembly, 18 x 9.5 x 8 Sq. Sh.

$138.99

$

Usually ships in 3-6 days

0

61

MTD 634-04369-4042

Rim Assembly

$165.99

$

Usually ships in 3-6 days

0

62

MTD 934-0255

Valve Stem

$4.49

$

In Stock, Qty 20+

0

63

MTD 734-1729

Tire, 18 x 9.5 x 8 Sq. Sh.

Variations

MTD 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

MTD 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

MTD 925-04085

Wiring Harness
(Superseded to 925-04432M)

Note: (Not Shown)

$143.99

$

Usually ships in 3-6 days

0
