247.289020 (13AJ77SS099) - Craftsman LT2000 Lawn Tractor (2010) (Sears) Seat & Fenders Parts Diagram

LT2000 Lawn Tractor

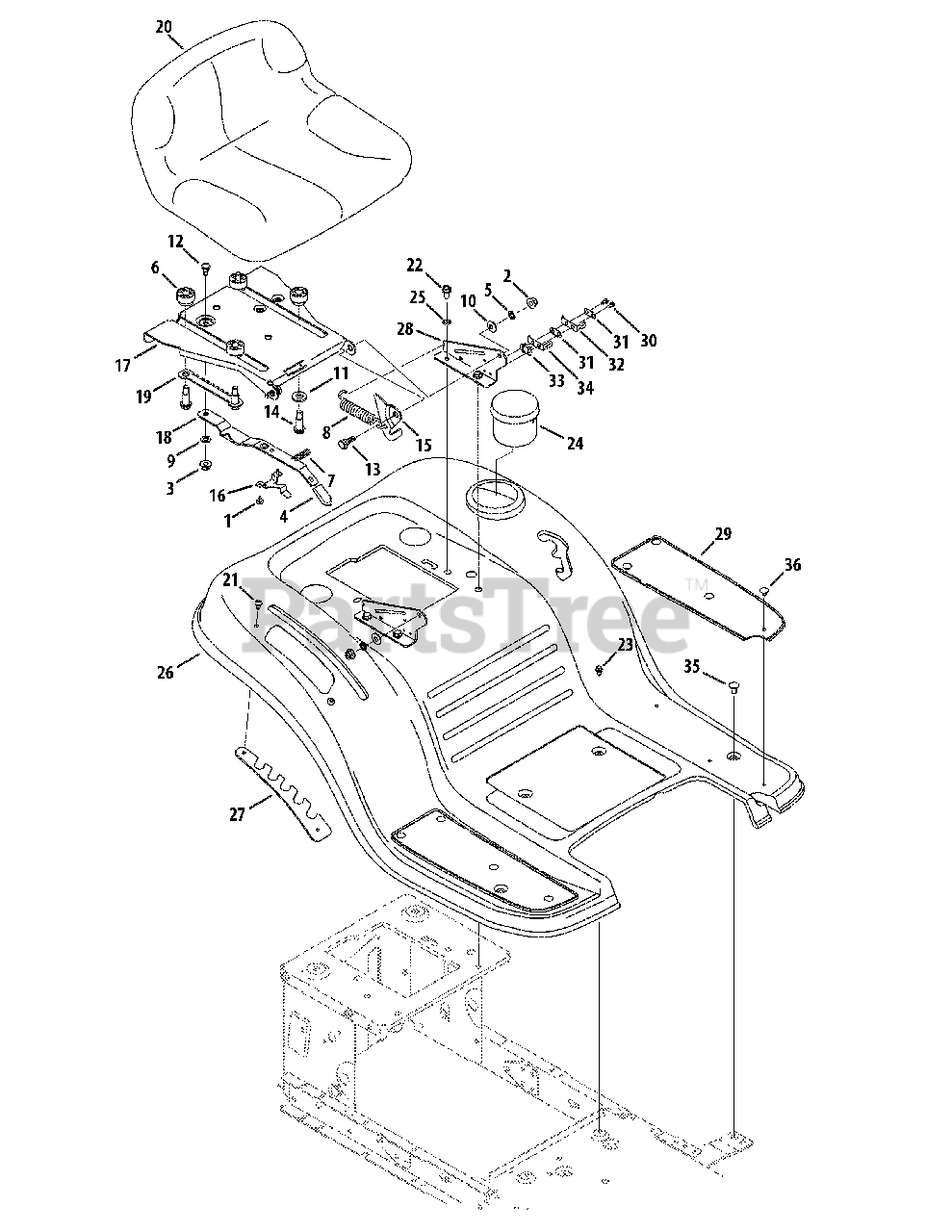

Seat & Fenders Parts Diagram

  • Title

1

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0309A

Seat Adjustment Grip

$9.49

$

Usually ships in 3-6 days

0

5

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

6

MTD 731-04074

Seat Adjustment Spacer

$7.49

$

In Stock, Qty 20+

0

7

MTD 732-0499

Compression Spring, .41 x 1.50

$9.49

$

In Stock, only 1 left!

0

8

MTD 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

9

MTD 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0242

Flat Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-3019

Flat Washer, .531 x .062 x .134

$5.99

$

In Stock, Qty 11

0

12

MTD 938-0137A

Shoulder Screw, .34 x .285: 1/4-20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

13

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-0966A

Shoulder Bolt, .50 x .925: 3/8-16

$4.99

$

In Stock, Qty 19

0

15

MTD 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

16

MTD 783-0611

Seat Adjustment Stop Bracket

$10.99

$

In Stock, only 3 left!

0

17

MTD 783-0738D-0637

Seat Pivot Bracket

$

$

Not available

18

MTD 783-0739A-0637

Seat Adjustment Lever

$25.99

$

Usually ships in 3-6 days

0

19

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

20

MTD 757-04125

Low Back Seat
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

21

MTD 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

22

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

25

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

26

MTD 783-04587C-4043

Fender
(Superseded to 783-04587E-4043)

$392.99

$

Usually ships in 3-6 days

0

27

MTD 783-04843-0637

Lift Adjuster Bracket

$37.99

$

Usually ships in 3-6 days

0

28

MTD 783-1489C-0637

Seat Mounting Bracket
(Superseded to 783-1489D-0637)

$23.99

$

In Stock, only 1 left!

0

29

MTD 735-04047

Rubber Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

29

MTD 735-04048

Rubber Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

30

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

31

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

32

MTD 925-1303

Outer Seat Spring

$6.49

$

In Stock, Qty 7

0

33

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

34

MTD 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

35

MTD 710-0134

Carriage Screw, .62: 1/4-20

$4.49

$

In Stock, Qty 20+

0

36

MTD 726-04072A

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 13

0
