247.288860 (13AL78ST299) - Craftsman Lawn Tractor (2011) (Sears) Hood & Grille Parts Diagram

Lawn Tractor

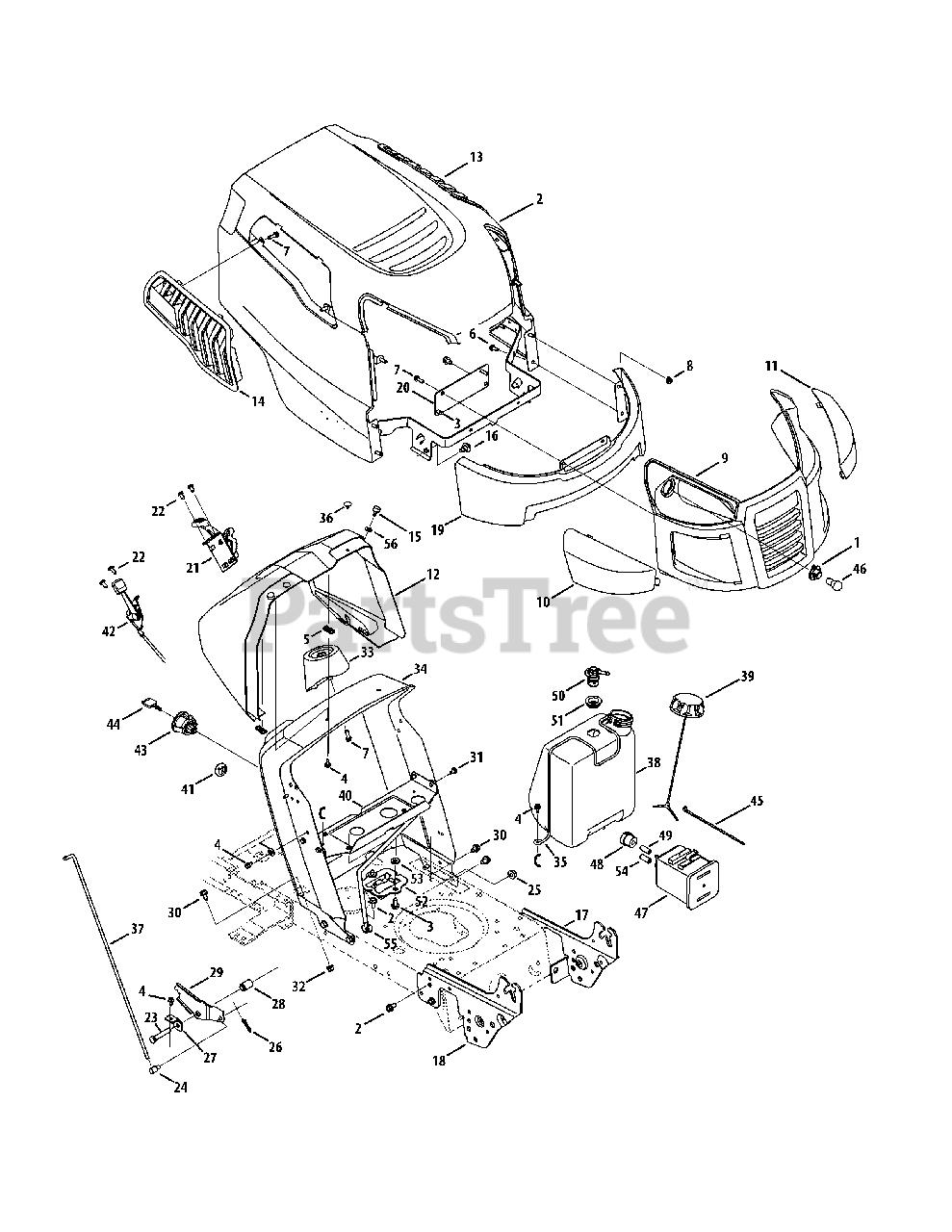

Hood & Grille Parts Diagram

  • Title

1

MTD 925-1649

Bulb Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 8

0

2

MTD 683-04619-0691

Hood Assembly
(Superseded to 683-04619A-0691)

$291.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0292

Tin Clip Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

6

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Hex Flange Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 931-07668

Grill

$47.99

$

Usually ships in 3-6 days

0

10

MTD 731-07458

Headlight Lens, RH

$

$

Not available

11

MTD 731-07459

Headlight Lens, LH

$

$

Not available

12

MTD 731-07460

Dash Collar
(Superseded to 731-07460A)

$86.99

$

Usually ships in 3-6 days

0

13

MTD 731-07711A

Hood Scoop, LH

$15.99

$

Usually ships in 3-6 days

0

14

MTD 731-07712A

Hood Scoop, RH

$15.99

$

Usually ships in 3-6 days

0

15

MTD 735-0271A

Bumper

$8.99

$

In Stock, only 4 left!

0

16

MTD 738-04091A

Shoulder Screw, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

17

MTD 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

18

MTD 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

19

MTD 783-06598-4043

Lower Grill

$54.99

$

Usually ships in 3-6 days

0

20

MTD 783-06610-0637

Lower Grill Bracket

$29.99

$

Usually ships in 3-6 days

0

21

MTD 983-04505

Parking Brake Lever Assembly

$18.99

$

Usually ships in 3-6 days

0

22

MTD 710-05280

Self-Tap Screw, 1/4-20
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

23

MTD 710-3144

Hex Head Screw, 3/8-16

$4.49

$

In Stock, Qty 12

0

24

MTD 711-0736

Ferrule, 1/4-20 x 1.00

$13.99

$

In Stock, only 2 left!

0

25

MTD 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

27

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

28

MTD 750-04465B

Flange Spacer

$4.49

$

In Stock, only 2 left!

0

29

MTD 783-04903A

Speed latch
(Superseded to 783-04903)

$8.99

$

Usually ships in 3-6 days

0

30

MTD 710-05070

Self-Tap Screw, 1/4-20
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

31

MTD 710-0895

Hex Screw, 1/4-15

$6.49

$

In Stock, Qty 5

0

32

MTD 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

34

MTD 783-04873B-0637

Dash

$214.99

$

Usually ships in 3-6 days

0

35

MTD 747-05371

Fuel Tank Support Rod

$13.99

$

Usually ships in 3-6 days

0

36

MTD 726-04072A

Ratchet Clip

$3.99

$

In Stock, Qty 13

0

37

MTD 747-04430

Speed Selector Control Rod

$21.99

$

Usually ships in 3-6 days

0

38

MTD 951-04304

1.38 Gallon Fuel Tank
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

39

MTD 951-10947

Fuel Cap
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

40

MTD 783-04584B-0637

Gas Tank Support Bracket

$19.99

$

Usually ships in 3-6 days

0

41

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

42

MTD 746-04364

Throttle/Choke Assembly

$48.99

$

In Stock, only 2 left!

0

43

MTD 925-04659

3-position Key Switch

$44.99

$

In Stock, Qty 20+

0

44

MTD 625-04124

Key (2 pack)
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

45

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

46

MTD 925-0963

Headlight Bulb

$7.49

$

Usually ships in 3-6 days

0

47

MTD 951-10589

Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

48

MTD 951-10590

Filter Vent

$15.99

$

Usually ships in 3-6 days

0

49

MTD 751-10749

Low Perm Fuel Line 3/16 White

$0.99

$

Usually ships in 3-6 days

0

50

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

51

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, only 4 left!

0

52

MTD 951-10610

Canister Bracket

$23.99

$

Usually ships in 3-6 days

0

53

MTD 936-3008

Flat Washer, .344 x.750 x .120

$6.99

$

Usually ships in 3-6 days

0

54

MTD 751-10750

Low Perm Fuel Line 7/32 Yellow

$1.49

$

Usually ships in 3-6 days

0

55

MTD 747-05326

Dash Support Rod

$

$

Not available

56

MTD 936-0463

Flat Washer, .250 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0
