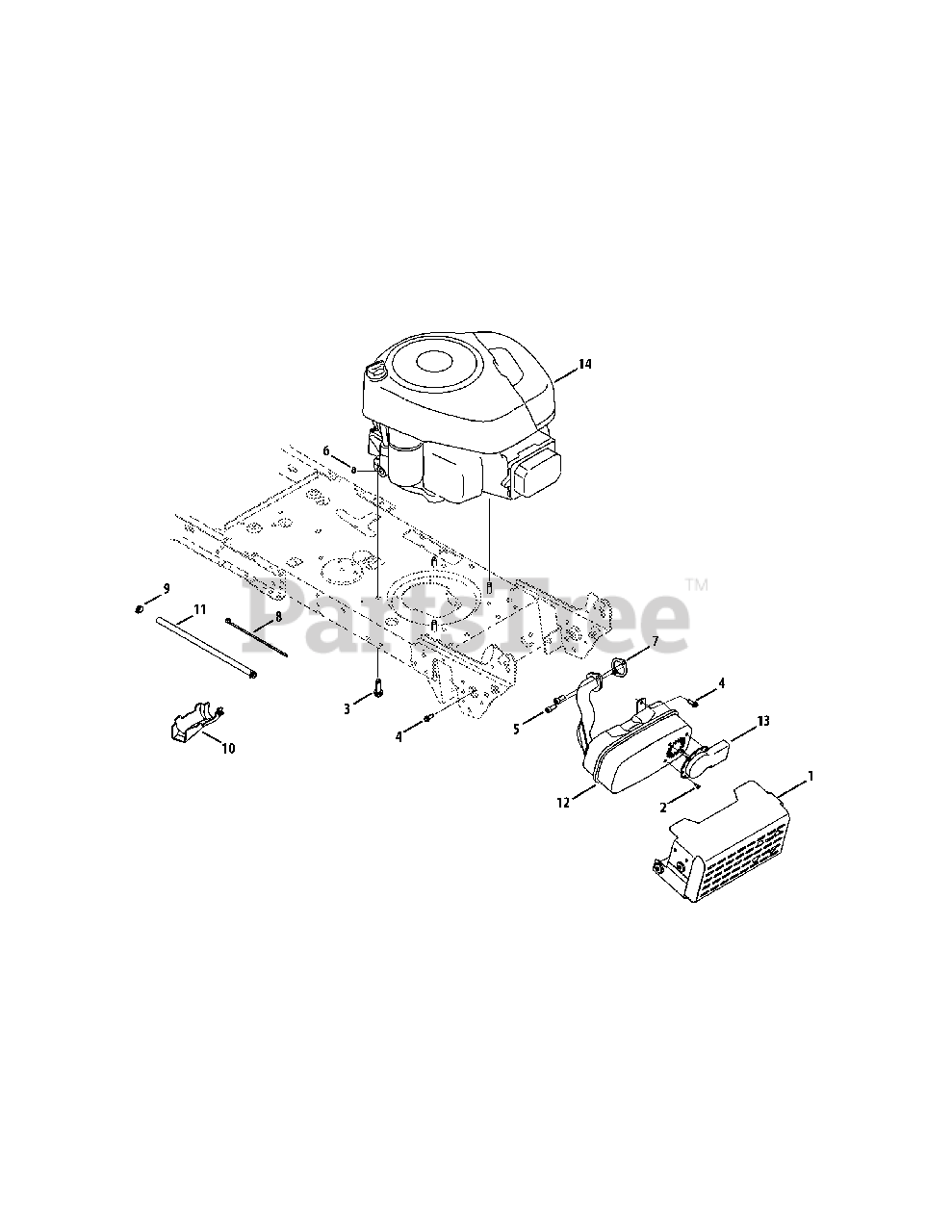

247.288851 (13AL78ST099) - Craftsman Lawn Tractor (2011) (Sears) Engine Accessories Parts Diagram

Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, AB #8-18 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Tap Screw, 3/8-16 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0642

Tap Screw, 1/4-20 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, Socket Head, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 1 left!

0

11

MTD 751-10349

Low Permeation Fuel Hose, 1/4

$9.49

$

Usually ships in 3-6 days

0

12

MTD 751-10448B

Briggs Single Muffler
(Superseded to 951-10448D)

$

$

Not available

13

MTD 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

14

N/A

Engine - 331877-0869-G5

Note: Purchase locally

$

$

Not available
