247.288831 (13AN77SS299) - Craftsman Lawn Tractor (2012) (Sears) Front Steering Parts Diagram

Lawn Tractor

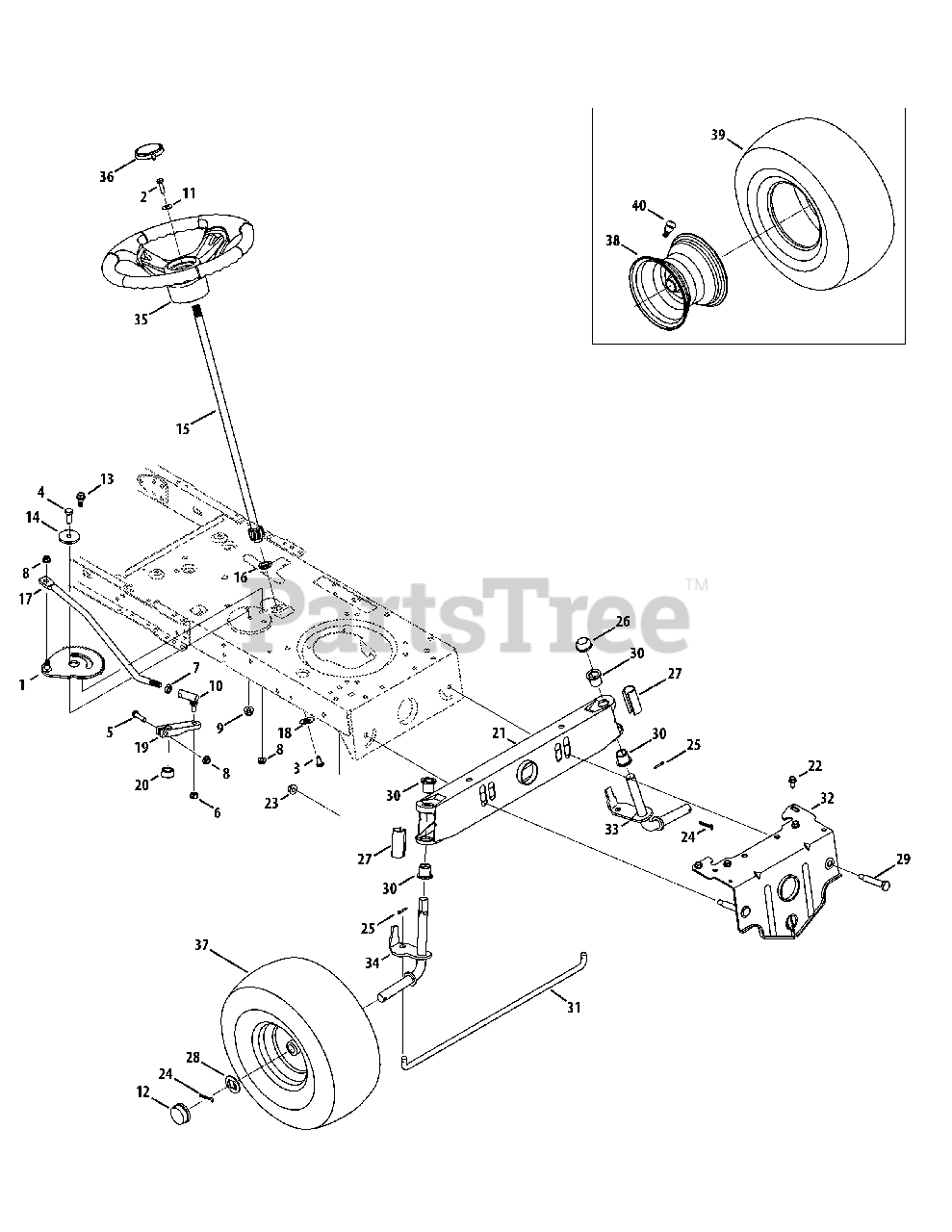

Front Steering Parts Diagram

  • Title

1

MTD 617-04094

Gear Assembly, Steering

$29.99

$

In Stock, Qty 20+

0

2

MTD 710-0643

Screw, 5/16-18, 1.00, Gr5, Lock

$6.99

$

In Stock, Qty 5

0

3

MTD 710-1309

Screw, Mach, 5/16-18, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0514

Hex Head Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Screw, 5/16-18, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

6

MTD 912-0214

Nut, Jam Lock, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

7

MTD 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

10

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

13

MTD 738-04141

Shoulder Screw, 5/16-18

$5.49

$

In Stock, Qty 20+

0

14

MTD 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

15

MTD 738-0919A

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

16

MTD 941-04124

Bearing, Flange, Hex 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

17

MTD 747-05385

Drag Link, Steering
(Superseded to 747-05385A)

$20.99

$

In Stock, only 4 left!

0

18

MTD 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04065-0637

Steering, Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 1 left!

0

20

MTD 748-04068

Spacer, .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

21

MTD 683-0128B-0637

Pivot Bar Axle Assembly

$97.99

$

In Stock, only 2 left!

0

22

MTD 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

24

MTD 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

25

MTD 914-0474

Pin, Cotter, 1/8 x 0.75
(Superseded to 714-0474)

$

$

Not available

26

MTD 736-0341

Push Cap, 3/4
(Superseded to 736-0341B)

$

$

Not available

27

MTD 731-04057A

Axle Cap

$5.49

$

In Stock, Qty 20+

0

28

MTD 736-04228A

Washer, Flat, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

29

MTD 738-04128

Screw, Shlder, .500 x 2.380, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

30

MTD 741-0660A

Flange Bearing

$3.49

$

In Stock, Qty 20+

0

31

MTD 747-04299A

Tie Rod

$30.99

$

In Stock, only 1 left!

0

32

MTD 783-05326B-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

33

MTD 938-04007A-0637

Axle Assembly LH

$46.99

$

Usually ships in 3-6 days

0

34

MTD 638-04008P

Axle Assembly RH

$51.99

$

In Stock, only 1 left!

0

35

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

36

MTD 731-06825

Cap, Steering Wheel (Crafts. logo)
(Superseded to 731-06825A)

$5.49

$

In Stock, Qty 13

0

37

MTD 634-04325-0961

Wheel Assembly
(Superseded to 634-05053-0961)

$91.99

$

In Stock, only 1 left!

0

38

MTD 934-04081-4042

Rim
(Superseded to 634-05066-4042)

$105.99

$

Usually ships in 3-6 days

0

39

MTD 734-04240A-0901

Tire, 15 x 6 x 6 Sq. Shoulder

$31.99

$

Usually ships in 3-6 days

0

40

MTD 934-0255

Valve Stem

$4.49

$

In Stock, Qty 20+

0
