247.288820 (13A277SS099) - Craftsman LT1500 Lawn Tractor (2013) Hood & Grille Parts Diagram

LT1500 Lawn Tractor

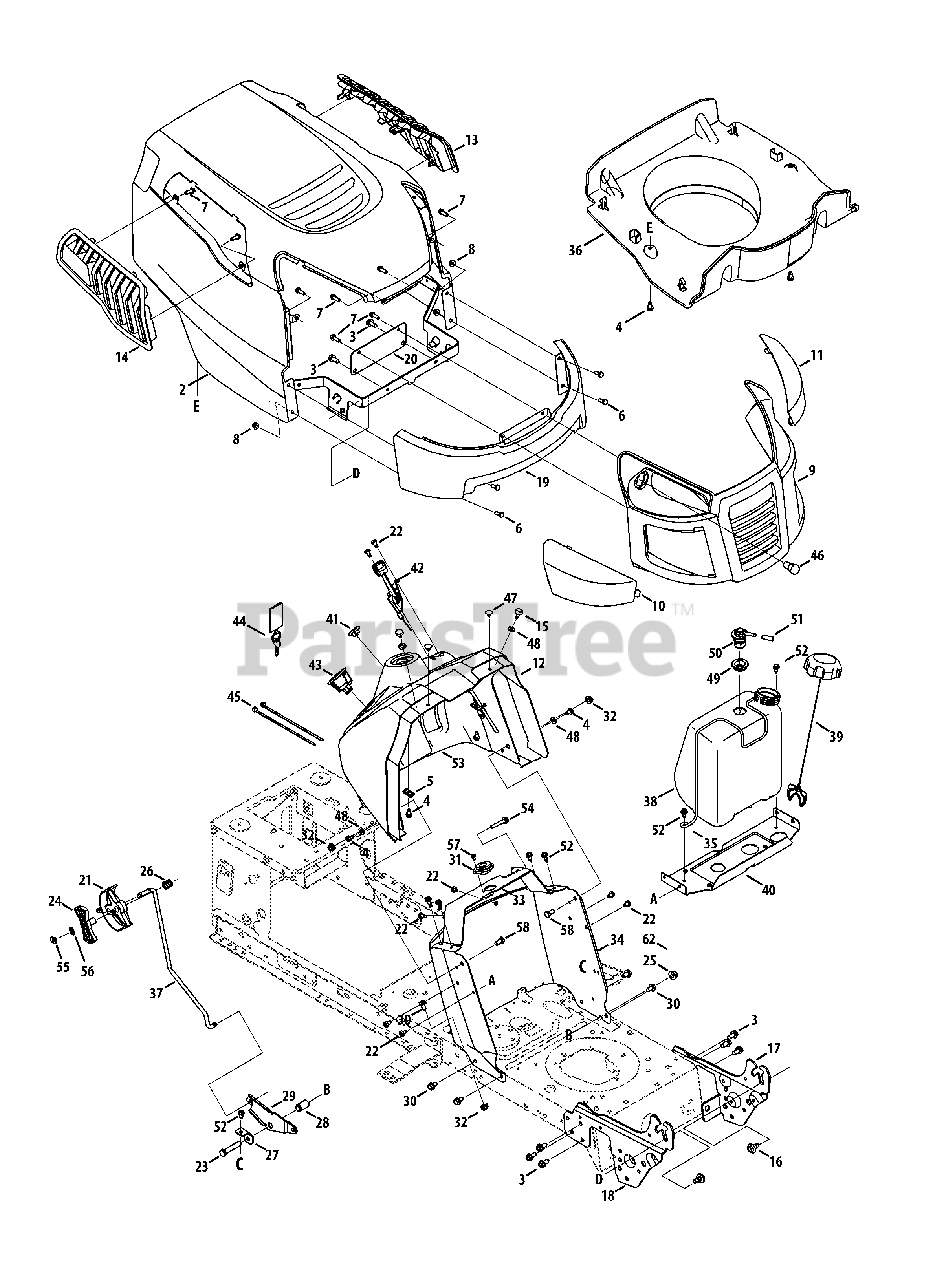

Hood & Grille Parts Diagram

  • Title
1

MTD 925-1649

Bulb Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

2

MTD 683-04619A-4043

Hood Assembly

$291.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0292

Tin Clip Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

6

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Hex Flange Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

$47.99

$

Usually ships in 3-6 days

0

10

MTD 731-07458

Headlight Lens, RH

$

$

Not available

11

MTD 731-07459

Headlight Lens, LH

$

$

Not available

12

MTD 731-07460A

Dash Collar

$86.99

$

Usually ships in 3-6 days

0

13

MTD 731-07711A

Hood Scoop, LH

$15.99

$

Usually ships in 3-6 days

0

14

MTD 731-07712A

Hood Scoop, RH

$15.99

$

Usually ships in 3-6 days

0

15

MTD 735-0271A

Bumper

$8.99

$

In Stock, only 1 left!

0

16

MTD 738-04091A

Shoulder Screw, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

18

MTD 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

19

MTD 783-06598-4043

Lower Grill

$54.99

$

Usually ships in 3-6 days

0

20

MTD 783-06610-0637

Lower Grill Bracket

$29.99

$

Usually ships in 3-6 days

0

21

MTD 731-09253

Shift Lever

$15.99

$

In Stock, only 1 left!

0

22

MTD 710-05070

Self-Tap Screw, 1/4-20
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

23

MTD 710-3144

Hex Head Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-07895A

7-Speed Control Index

$6.49

$

In Stock, Qty 7

0

25

MTD 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 732-04877

Compression Spring

$4.49

$

In Stock, only 2 left!

0

27

MTD 783-06823

Speed Latch Support Tab

$17.99

$

In Stock, only 2 left!

0

28

MTD 750-04465C

Flange Spacer

$4.49

$

Usually ships in 3-6 days

0

29

MTD 783-06991-0637

Speed latch Bracket No RMC

$9.49

$

In Stock, only 1 left!

0

30

MTD 710-0604A

Self-Tap Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-0587

Steering Column Bearing

$4.49

$

In Stock, Qty 9

0

32

MTD 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 783-06785A-0637

Steering Support Bracket
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

34

MTD 783-06811-0637

Dash
(Superseded to 783-06811F-0637)

$53.99

$

Usually ships in 3-6 days

0

35

MTD 747-05371

Fuel Tank Support Rod

$13.99

$

Usually ships in 3-6 days

0

36

MTD 731-08440

Plenum
(Superseded to 731-08440A)

$39.99

$

Usually ships in 3-6 days

0

37

MTD 747-05398

Control Rod

$11.99

$

Usually ships in 3-6 days

0

38

MTD 951-04304

Fuel Tank
(Superseded to 951-04304B)

$111.99

$

Usually ships in 3-6 days

0

39

MTD 951-12179A

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

40

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

41

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

42

MTD 746-04367

Throttle/Choke Assembly
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

43

MTD 925-04659

Key Switch Module

$44.99

$

In Stock, Qty 20+

0

44

MTD 625-04124

Key Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

45

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

46

MTD 925-0963

Headlight Bulb

$7.49

$

In Stock, Qty 5

0

47

MTD 726-04072A

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 13

0

48

MTD 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

49

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

50

MTD 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, only 2 left!

0

51

MTD 751-12089

Vent Hose

$5.49

$

Usually ships in 3-6 days

0

52

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

53

MTD 931-08542A

Upper Dash
(Superseded to 931-08542C)

$40.99

$

In Stock, only 1 left!

0

54

MTD 710-05237

Hex Flange Bolt

$3.99

$

In Stock, only 1 left!

0

55

MTD 912-0414

Top Lock Weldnut
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-3006

Lock Washer

$6.49

$

Usually ships in 3-6 days

0

57

MTD 910-0224

Screw, #10

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-3025

Hex Head Screw, 5/16-18

$3.99

$

In Stock, Qty 8

0

MTD 777X44366

Headlight Reflector LH (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

MTD 777X44365

Headlight Reflector RH (Not Shown)

$12.99

$

Usually ships in 3-6 days

0
